This article will cover the installation of StudioEdge into your workflow. Before installing the StudioEdge, please familiarize yourself with all sections within this article.
Table of Contents
- Physical specifications
- Ports on the rear of StudioEdge
- Ports on the front of StudioEdge
- Installation environment requirements
- Installation overview
- Connecting external cables
- Power-on and power-off
Physical specifications
| Item | Description |
| Code | StudioEdge |
| Dimensions (height x width x depth) | 2RU Chassis. 88 mm x 480 mm x 380 mm |
| Installation dimensions | Requirements for cabinet installation:
|
| Weight | 7.9kg |
| Power consumption (W) | Standard configuration:
|

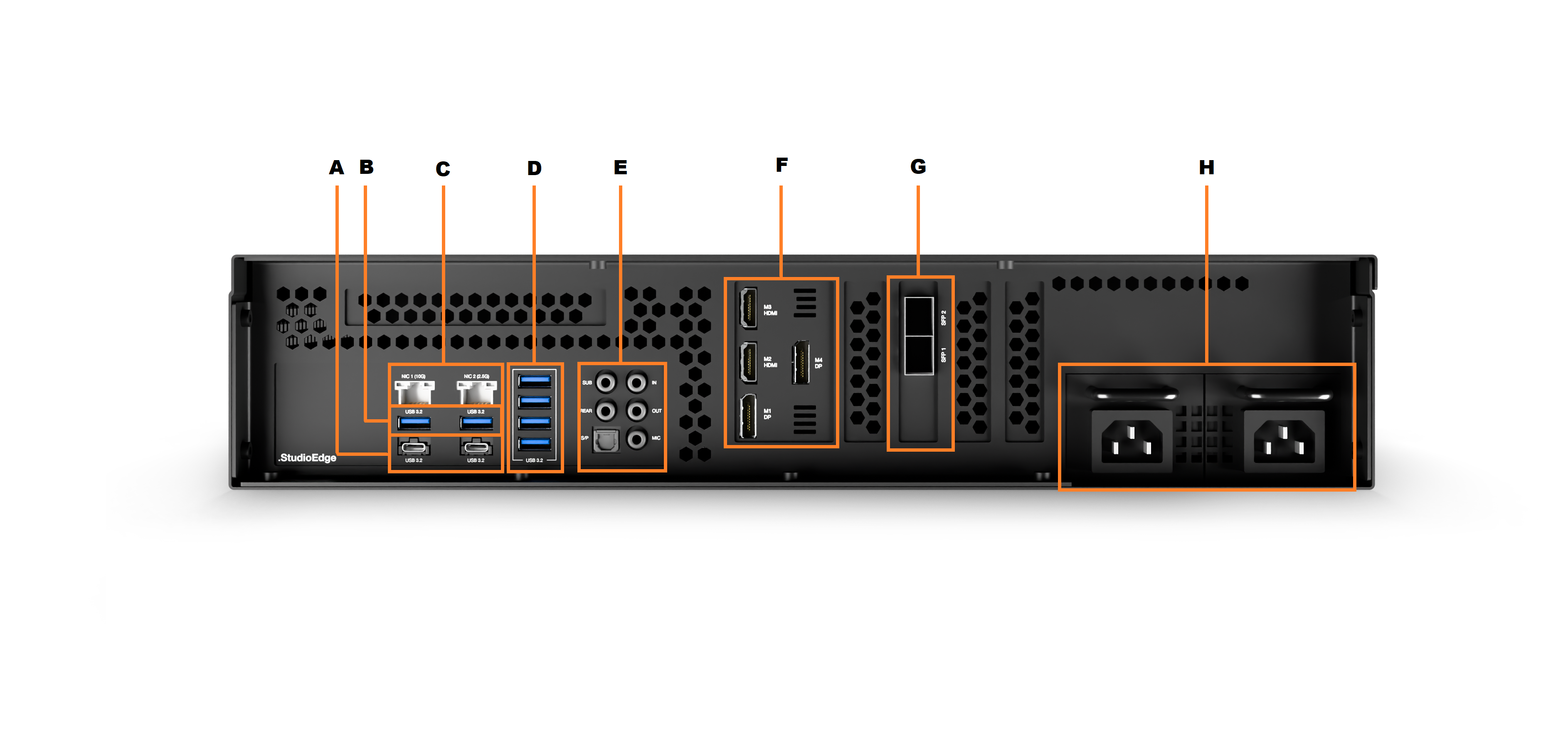

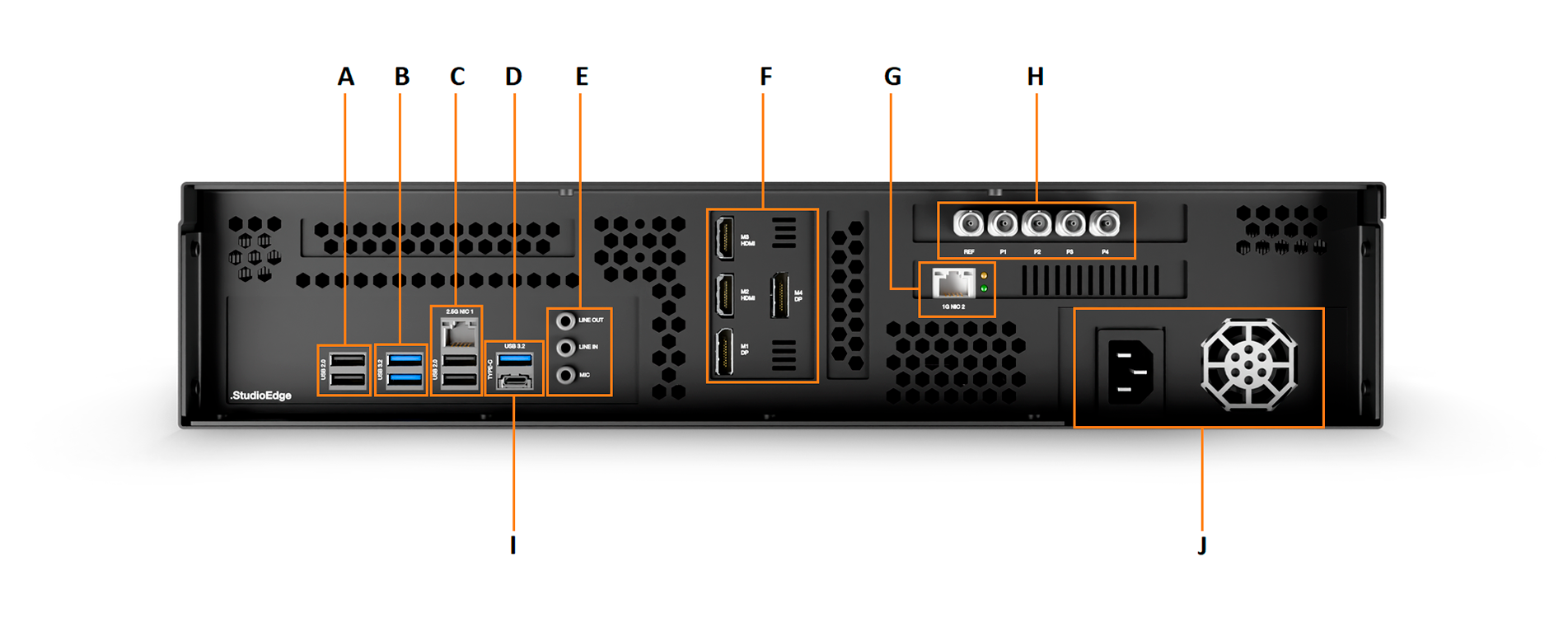

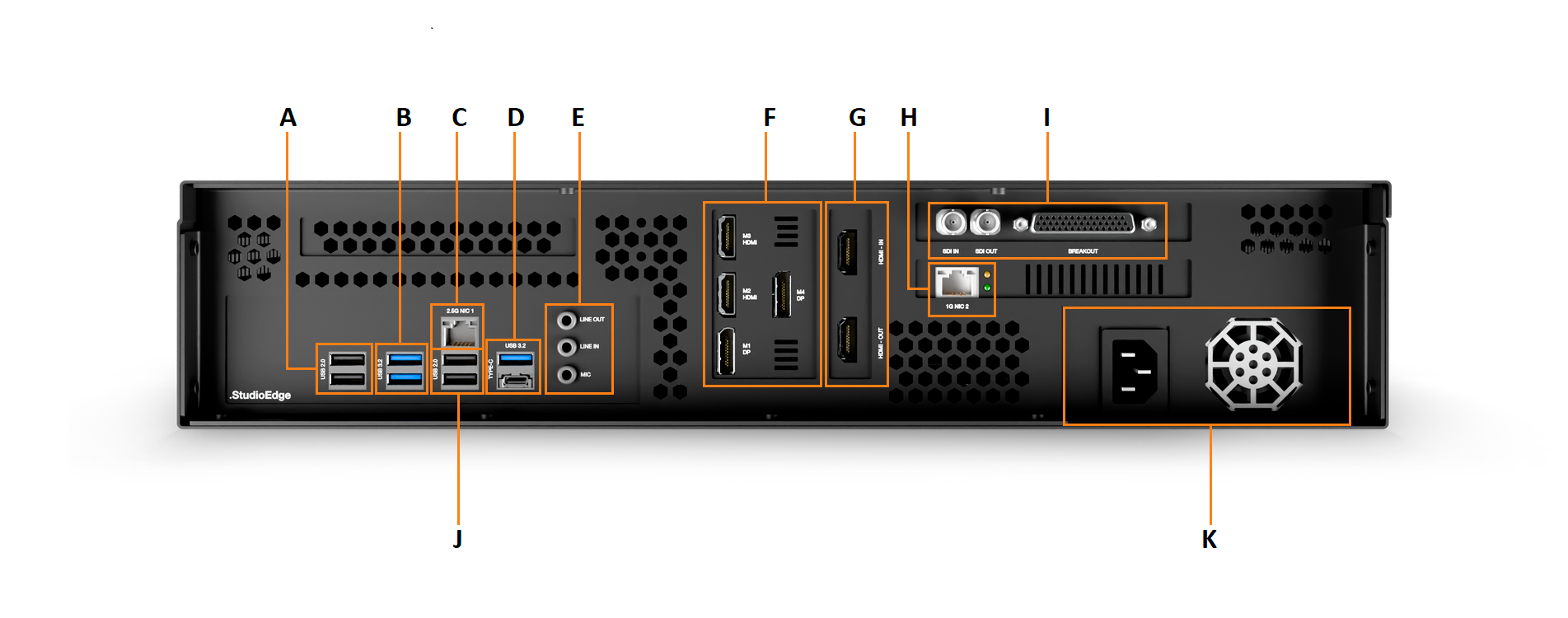

Ports on the rear of StudioEdge
This section details the ports on the rear of StudioEdge.

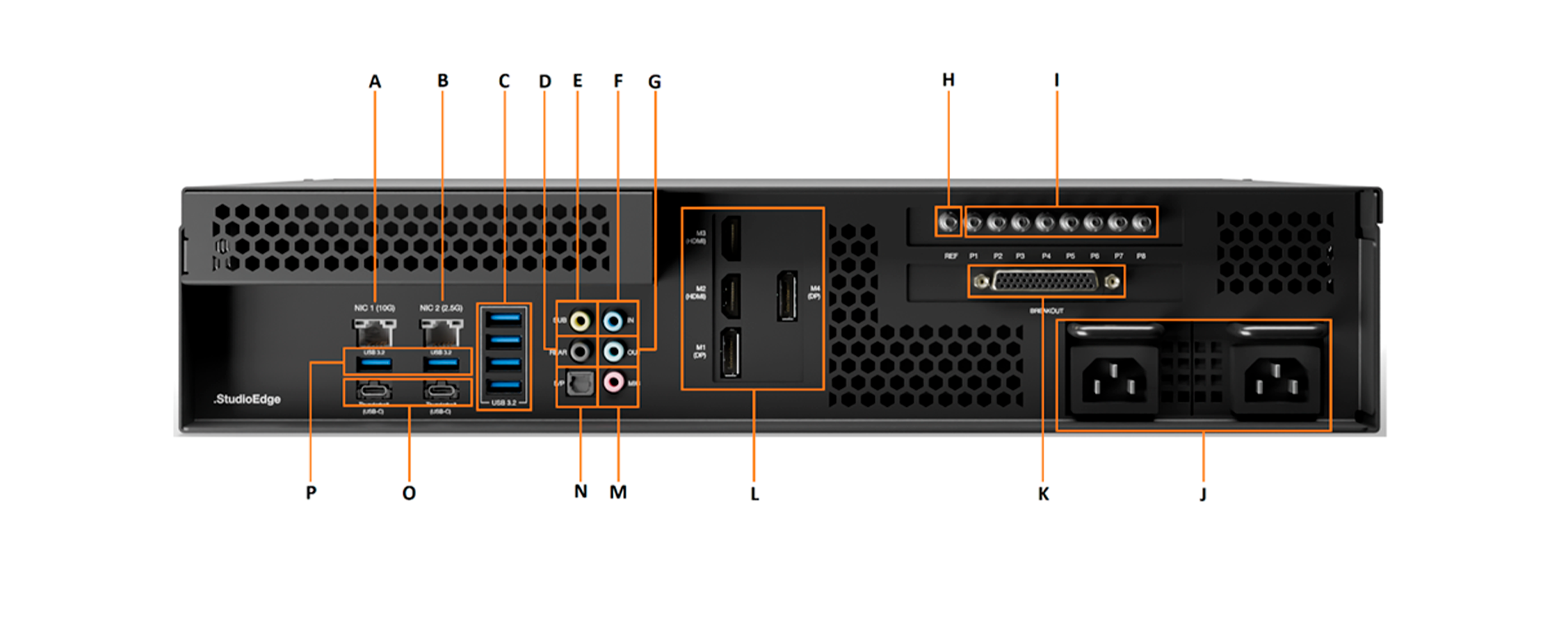

| Item | Port | Description |
| A | 10GBE Ethernet Port | Used for Network traffic/Internet |
| B | 2.5GBE Ethernet Port | Used for Audio over I.P/Video over I.P (NDI, Dante) |
| C | USB 3.2 | Used for connecting peripherals |
| D | Rear speaker | Not used |
| E | Centre audio channel | Not used |
| F | Line in | Can be used for audio input |
| G | Speaker channel | Can be used for audio output |
| H | Genlock/Ref Port | Used for syncing sources |
| I | SDI inputs/outputs | Configurable HD-SDI for inputs and outputs |
| J | IEC Power x2 | Used for powering unit |
| K | Breakout Cable | Analogue audio breakout connector |
| L | Monitor Displays | HDMI x2 and DP x2 |
| M | Mic Input | Can be used for audio input |
| N | SPDIF | Can be used for audio output |
| O | Thunderbolt (USB-C) | Used for connecting peripherals |
| P | USB 3.2 | Used for connecting peripherals |
Ports on the front of StudioEdge
This section details the ports on the front of StudioEdge.
| Item | Port | Description |
| A | USB 3.0 | Used for connecting peripherals |
| B | Power switch | Turn on/off QuickLink StudioEdge |
Installation environment requirements
Space and airflow requirements
To allow for servicing and adequate airflow, observe the following space and airflow requirements:
- Install the server in an access-restricted area.
- Keep the area in which the server is located clean and tidy.
- To facilitate heat dissipation and maintenance, keep a clearance of 800 mm (31.50 in.) between walls and the front and rear doors of the cabinet.
- Do not block the air intake vents. Otherwise, air intaking and heat dissipation will be affected.
- The air conditioning system in the equipment room provides enough wind to ensure proper heat dissipation of all components.
Temperature and humidity requirements
To ensure continued safe and reliable equipment operation, install the system in a well-ventilated, climate-controlled environment.
- Use temperature control devices 24/7x365 in all climates.
- In dry and humid areas, maintain ambient humidity within range with humidifiers and dehumidifiers respectively.
| Item | Description |
| Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
| Humidity | 8% RH to 90% RH (non-condensing) |
Cabinet requirements
There are two key cabinet requirements:
- A general 19-inch cabinet with a depth of more than 1000 mm (39.37 in.) which complies with the International Electrotechnical Commission 297 (IEC 297) standard.
- Air filters installed on cabinet doors.
Installation overview
This section will detail how to correctly install the StudioEdge.
Precautions:
- Properly ground the StudioEdge before installation to avoid damage to electronic components from electrostatic discharge. Improper grounding may cause electrostatic discharge.
Unpacking StudioEdge
Please follow this procedure when unpacking your StudioEdge.
- Check the packing box and seals are in good condition.
- Use a sharp object (box cutter) to open the packing case.
- Unpack the packing case.
- Ensure that all components are complete and in good condition without any defects such as oxidization, chemical corrosion, missing components, or other damage incurred during transport.
Packing list:
| No. | Description | Quantity |
| 1 | StudioEdge Server | x1 |
| 2 | A/C Power Cords | x2 |
| 4 | Welcome Pack | x1 |
| 5 | Server Racking Ears/Wings | x2 |
| 6 | Racking Screws | x12 |
| 7 | Dummy Display adapter | x1 |
| 8 | Mini SDI | x12 |
| 9 | Audio Breakout Cables | x1 |
| 10 | Rear Unit Diagram | x1 |
Rack space allocation and installation
Install shelf using instructions provided by manufacturer (The shelf is not provided by Quicklink). We recommend that the shelf is mounted Up-side-Down so the Quicklink server can be secured using Quicklink server ears.
Determine the installation positions of the floating nuts according to the cabinet device installation plan.
Figure 1-3 Spacing of 1U on a mounting bar of a cabinet
Floating nuts are used to tighten screws (Quicklink doesn’t supply the nuts or screws these are usually provided by the rack manufacturer).
The boundary between servers is used as the reference for calculating device installation space.
Installing the server
Using the provided racking ears and screws, attach onto StudioEdge.
Place the StudioEdge onto the shelf installed previously. The server can now be attached using the top and bottom mounting points described above.
Example 1: A single server on a single rack shelf
Example 2: Two servers on a single rack shelf
WARNING: Quicklink does not recommend stacking more than 5 servers on a single shelf. You also need to ensure that the maximum shelf weight provided by the manufacturer is not exceeded.
Connecting external cables
Connecting HDMI cables/DisplayPort
You may have an Edge unit with Display Port and HDMI connections on the motherboard and the GPU. You need to connect a monitor OR the dummy display adaptor provided. Your HDMI or Display Port cable(s) should be plugged into the GPU not the motherboard.

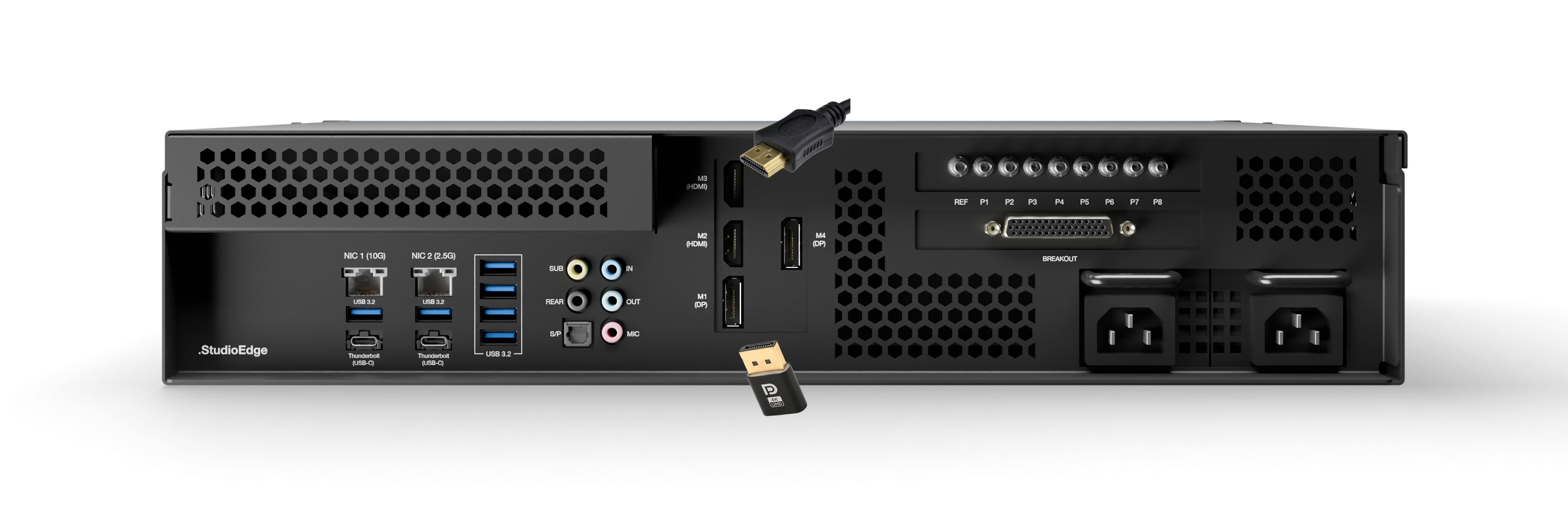

Here is where your monitor connections or dummy adapter should be connected.
Installing Network cables
Before connecting or replacing a network cable, use a network cable tester to ensure that the network cable is functional. (Check Port diagram page 3 for usage)
Connecting the AC PSU cables
Before connecting power cables, ensure that the server has been correctly installed. For details, see Installing the server (Use strain relief clips).
Connecting SDI cables
Before connecting or replacing an SDI cable, use an SDI cable tester to ensure that the cable is functional. (Configuration of inputs/outputs can be done through software)
Power-on and power-off
Power-on
Before powering on the server, ensure that the server is in offline status, all cables are correctly connected, and the power supply voltage meets service requirements. When powering on the server, do not remove and insert hard disks or disconnect and connect network cables.
If the server is powered off, wait for at least one minute before powering it on again.
Power-off
All services and programs will be interrupted when the server is powered off. Therefore, before powering off the server, ensure that all services and programs have been stopped or switched to other servers.
The power-off operation described in this section is an operation performed to change the server to the standby status (the power indicator is steady yellow).
After the server is powered off forcibly, wait for more than 10s to ensure that the server is powered off completely. Then, you can power on the server again.
Forcible power-off may damage user programs or data that is not saved. Exercise caution when performing this operation.
