Quicklink NDI Router

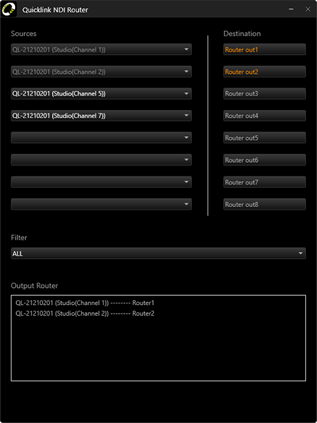

The Quicklink NDI Router allows you to map NDI sources to a static NDI source through a simple and friendly interface. This is an extremely useful feature when configuring your Quicklink Switcher scenes, allowing you to set a static NDI source within your scene, and then easily map your NDI sources within the NDI Router interface.


To start routing an NDI source, from the dropdown box, select your chosen NDI source next to the corresponding router destination. Then simply press the router destination (e.g Router out1) to start routing. Once running, the destination will display orange.

The Filter option allows you to filter by all NDI sources, or Microsoft Teams NDI sources.

The Output Router box will display active routers and which source is configured.

To stop the routing of a NDI source, simply press the router destination name.
