This article will explain labels, buttons, and status messages of the QuickLink ST2110 software interface.
Updated for QuickLink ST2110 Configuration version 1.4.1.4 with Matrox driver 11.2.101.2604. Items marked (new) were added in this version. Check your version in the window title or on the Help tab.
Matrox driver version (new): the installed Matrox driver version is shown at the bottom left of every tab. Quote it when you contact QuickLink Support.

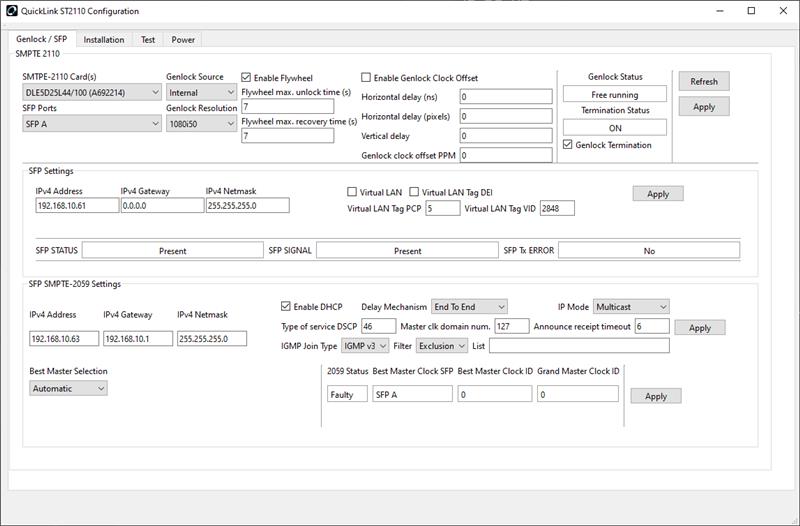

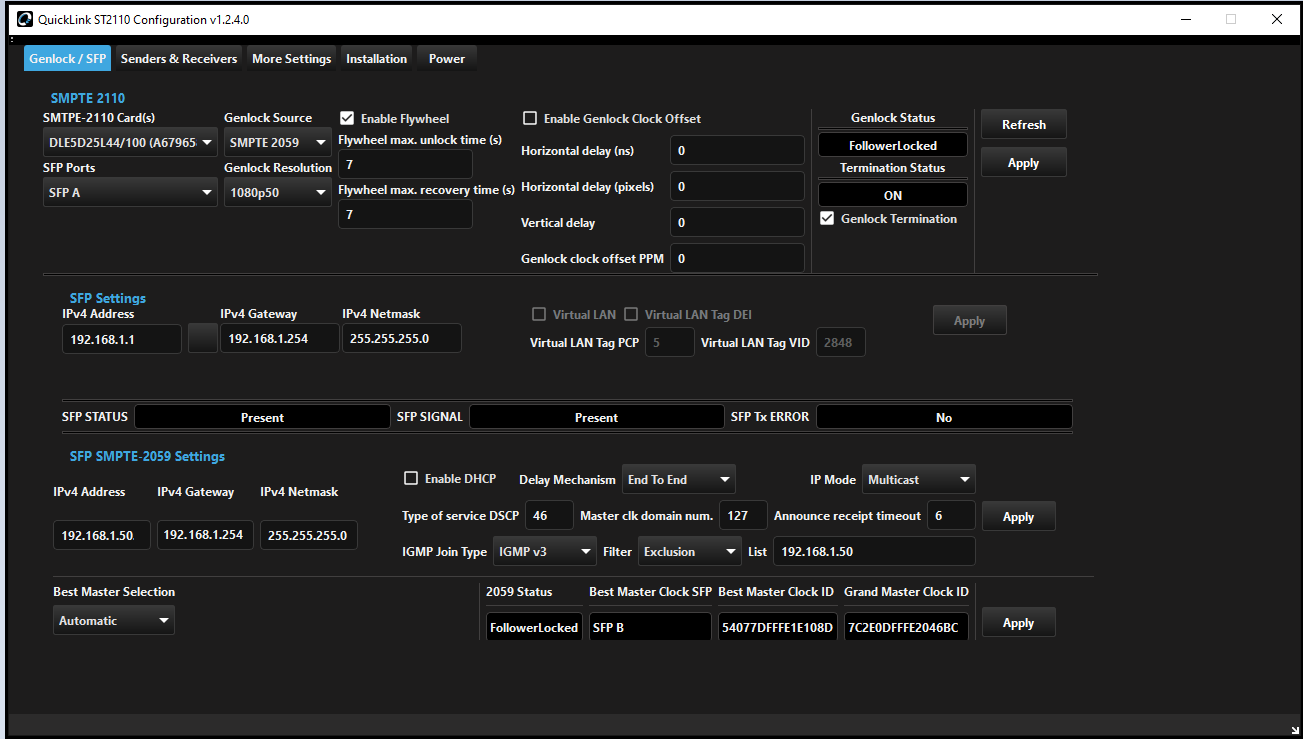

Genlock / SFP tab
| Term | Definition | User Action or Effect |
| SMPTE-2110 Card(s) | Selector for the installed I/O card used for 2110 operation. | Choose specific card if multiple are present. |
| SFP Ports | Dropdown to select which SFP cage/port to configure. | Changes the active SFP port. |
| Genlock Source | Selects the reference source for genlock. | Changing re-locks timing to selected source. |
| Genlock Resolution | Reference format used for genlock timing. | Sets video format for genlock generator/receiver. |
| Enable Flywheel | Allows free-run holdover when reference is lost. | When enabled, device maintains timing during ref loss. |
| Flywheel max. unlock time (s) | Maximum duration allowed without reference before action. | Exceeding may trigger status change/fallback. |
| Flywheel max. recovery time (s) | Time the system takes to re-stabilize after ref returns. | Affects how quickly lock is declared again. |
| Enable Genlock Clock Offset | Enables manual clock offset adjustment. | Allows applying an offset to genlock clock. |
| Horizontal delay (ns) | Horizontal timing offset applied to the genlock, in nanoseconds. | Applies a fine timing shift. |
| Horizontal delay (pixels) | Horizontal timing offset applied to the genlock, in pixels. | Applies a timing shift in whole pixels. |
| Vertical delay | Vertical timing offset applied to the genlock, in lines. | Applies a coarse timing shift. |
| Genlock clock offset PPM | Frequency offset applied to the genlock clock. | Adjusts clock speed by parts-per-million. |
| Genlock Status | Current genlock lock state. | Read-only status field. |
| Termination Status | Indicates whether genlock termination is applied. | Read-only status field. |
| Genlock Termination | Enables termination for reference input (if applicable). | Toggles input termination. |
| Refresh | Reloads current values from device. | Discards unsaved changes and fetches live status. |
| Apply | Commits changes to the device. | Writes current settings; restart StudioEdge/Pro to apply updated settings. |
| SFP Settings | Section for basic IP configuration of the SFP port. | N/A |
| IPv4 Address | IP address assigned to the SFP interface. | Reads address from NIC adapter. Settings needs to be changed from adapter. Read-only. |
| IPv4 Gateway | Default gateway for routing. | Reads address from NIC adapter. Settings needs to be changed from adapter. Read-only. |
| IPv4 Netmask | Subnet mask for the interface. | Reads subnet size from NIC adapter. Settings needs to be changed from adapter. Read-only. |
| Virtual LAN | Enables VLAN tagging on the interface. | When checked, VLAN options appear/apply. |
| Virtual LAN Tag DEI | Drop Eligible Indicator bit in VLAN tag. | Sets DEI flag behavior. |
| Virtual LAN Tag PCP | Priority Code Point for VLAN QoS. | Sets 802.1p priority. |
| Virtual LAN Tag VID | VLAN identifier for tagged frames. | Sets VLAN ID. |
| SFP STATUS | Presence/health of SFP module. | Read-only. |
| SFP SIGNAL | Optical/electrical signal detect state. | Read-only. |
| SFP Tx ERROR | Transmit error indicator for SFP. | Read-only. |
| SFP SMPTE-2059 Settings | Section for PTP/2059 timing over IP on SFP. | N/A |
| Enable DHCP | Enables DHCP to auto-assign IP settings. | Overrides static fields when enabled. |
| Delay Mechanism | PTP delay measurement method. | Selects mechanism used by PTP. |
| IP Mode | Transport mode for control/timing traffic. | Select unicast/multicast behavior. |
| Type of service DSCP | DSCP value for QoS marking. | Sets ToS/DSCP byte. |
| IGMP Join Type | IGMP version used for multicast joins. | Affects multicast membership reports. |
| Filter (Exclusion/List) | IGMP source filter mode and list. | Configure SSM include/exclude sources. |
| Master clk domain num. | PTP domain number for SMPTE‑2059. | Must match network PTP domain. |
| Announce receipt timeout | PTP BMCA timeout for announce messages. | Controls failover responsiveness. |
| Best Master Selection | BMCA preference setting. | Influences grandmaster election. |
| 2059 Status | Current SMPTE‑2059/PTP state. | Read-only. |
| Best Master Clock SFP | Port currently considered best master. | Read-only. |
| Best Master Clock ID | Clock identity of current best master. | Read-only. |
| Grand Master Clock ID | Clock identity of the grandmaster. | Read-only. |

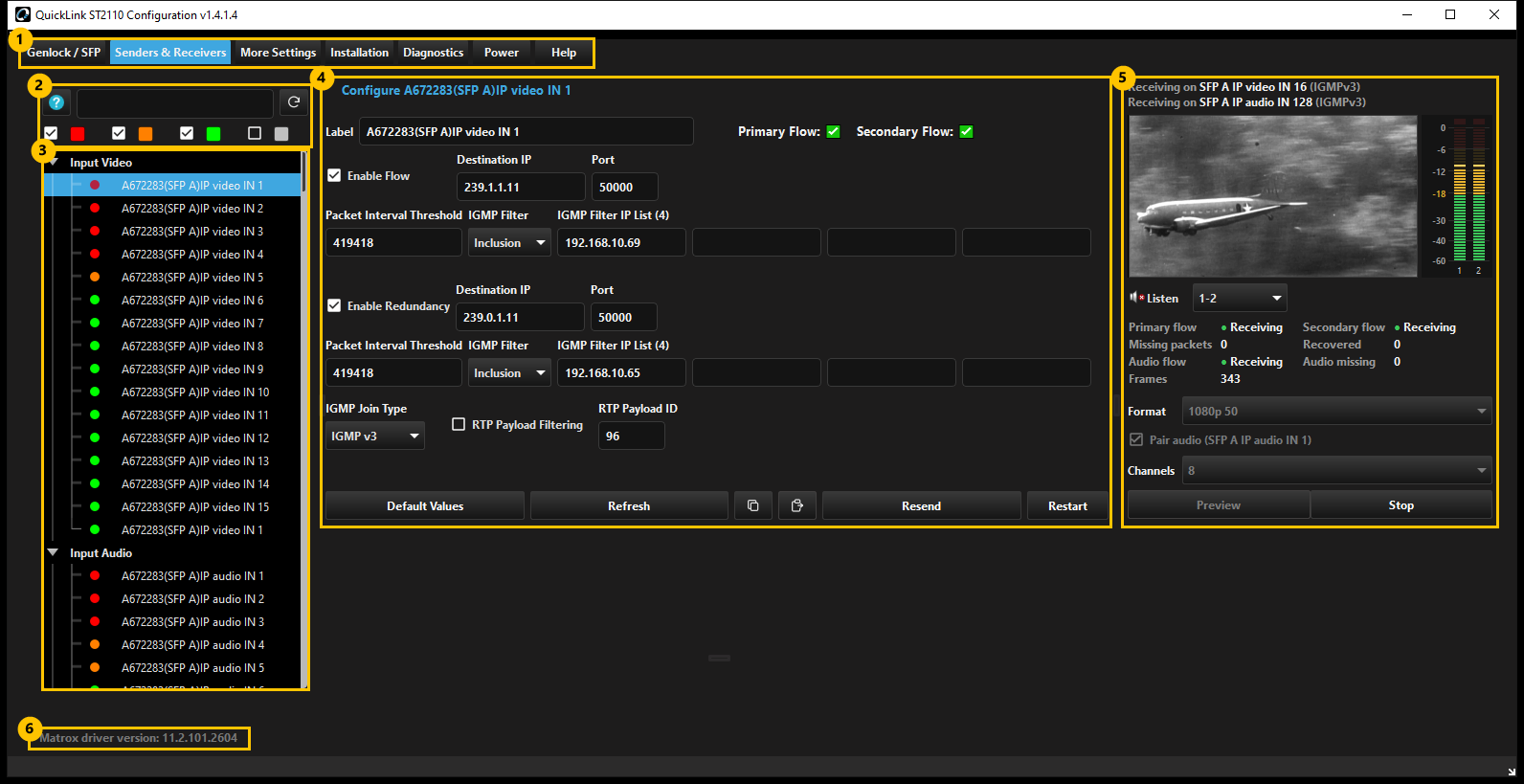

Senders & Receivers
Traffic light system
| Term | Definition | User Action or Effect |
| Live(Red) | Shows senders and receivers that are currently active and carrying an established SMPTE ST 2110 stream. | Select to filter the list and display only senders and receivers that are currently live. |
| Ready (Orange) | Shows senders and receivers that are configured and available, but are not currently carrying an active stream. | Select to filter the list and display devices that are ready to be activated or routed. |
| Standby (Green) | Shows senders and receivers that are available but currently placed in a standby or reserved state. | Select to filter the list and display devices that are waiting to become active. |
| Inactive (Inactive) | Shows senders and receivers that are disabled, unavailable, unconfigured, or not currently operational. | Select to filter the list and display only inactive senders and receivers. |

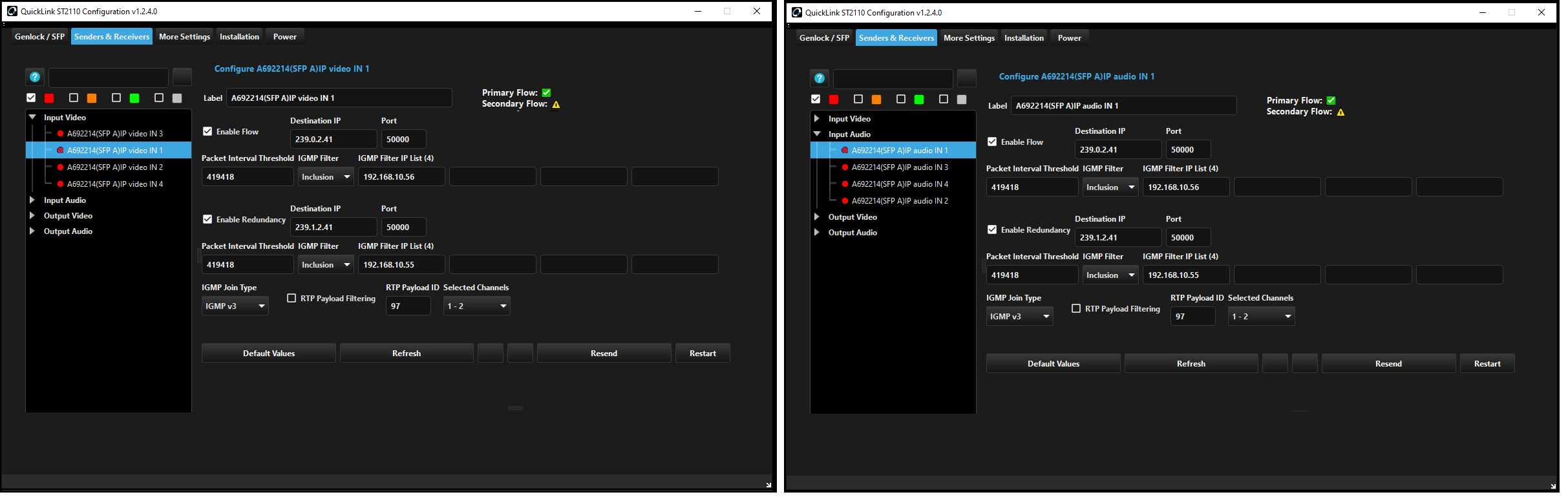

Input Video / Input Audio
| Term | Definition | User Action or Effect |
|---|---|---|
| Search | Searches the list of available video and audio senders and receivers. | Enter part of a sender or receiver name to limit the items displayed in the list. |
| Status filters | Filters senders and receivers according to their current operational status: Live, Ready, Standby, or Inactive. | Select or clear the coloured filter checkboxes to show or hide resources with the corresponding status. These controls do not change the resource’s operational state. |
| Search help (?) (new) | Shows examples of what the search box accepts. | Hover over the ? button. Search by name, for example *IN*, *OUT* or *audio*, or by address, for example ip:239*, ip:239.* or ip:238.*.2.*. |
| Refresh device list (new) | The round-arrow button beside the search box. | Reloads the list of senders and receivers from the card. |
| Input Video | Contains the available SMPTE ST 2110 video receivers. | Expand the section and select a video input to view or modify its configuration. |
| Input Audio | Contains the available SMPTE ST 2110 audio receivers. | Expand the section and select an audio input to view or modify its configuration. |
| Configure | Displays the name of the sender or receiver currently selected for configuration. | Select a resource from the list to open its settings. |
| Label | Sets the descriptive name used to identify the selected sender or receiver. | Enter a clear, unique name. The label may be advertised to NMOS controllers and shown in other management interfaces. |
| Enable Flow | Enables or disables the selected SMPTE ST 2110 sender or receiver flow. | Enable to allow the resource to transmit or receive media. Disable to stop the flow from operating. |
| Primary Flow | Displays the current state of the primary network path. | Read-only. A green tick indicates that the primary flow is operating correctly. A warning symbol indicates a problem or incomplete configuration. |
| Secondary Flow | Displays the current state of the redundant secondary network path. | Read-only. A green tick indicates that the secondary flow is operating correctly. A warning symbol indicates that redundancy is unavailable or not operating correctly. |
| Destination IP – Primary | Specifies the destination multicast or unicast IP address used by the primary flow. For an input, this is the address from which the receiver accepts the stream. | Enter the primary stream address defined by the network design or SDP. |
| Port – Primary | Specifies the UDP port used by the primary RTP stream. | Enter the port number used by the sender and receiver. The value must match the stream configuration and SDP. |
| Packet Interval Threshold – Primary | Sets the maximum permitted interval between expected RTP packets on the primary flow before a packet-timing warning or error is reported. | Enter the required threshold value. Change it only when required by the stream format or network design. |
| IGMP Filter – Primary | Selects how source addresses are filtered when joining the primary multicast stream. | Select the required IGMP filter mode, such as Inclusion, according to the multicast configuration. |
| IGMP Filter IP List – Primary | Lists the permitted or excluded source IP addresses used by the primary IGMP filter. | Enter the source IP address or addresses associated with the required multicast sender. Up to four addresses can be configured. |
| Enable Redundancy | Enables a secondary SMPTE ST 2022-7 network path for the selected flow. | Enable to configure and use a redundant secondary stream. Disable when only a single network path is required. |
| Destination IP – Secondary | Specifies the destination multicast or unicast IP address used by the redundant secondary flow. | Enter an address that is separate from the primary flow and belongs to the secondary network path. |
| Port – Secondary | Specifies the UDP port used by the redundant secondary RTP stream. | Enter the port number used by the secondary sender and receiver. It may match the primary port where the network design permits it. |
| Packet Interval Threshold – Secondary | Sets the maximum permitted interval between expected RTP packets on the secondary flow. | Enter the threshold required for the redundant stream. It will normally match the primary flow setting. |
| IGMP Filter – Secondary | Selects how source addresses are filtered when joining the secondary multicast stream. | Select the required IGMP filter mode for the secondary path. |
| IGMP Filter IP List – Secondary | Lists the permitted or excluded source IP addresses used by the secondary IGMP filter. | Enter the source IP address or addresses associated with the redundant multicast sender. Up to four addresses can be configured. |
| IGMP Join Type | Selects the IGMP version used when joining IPv4 multicast groups. | Select the IGMP version supported by the network, such as IGMPv3. IGMPv3 is normally required for Source-Specific Multicast. |
| RTP Payload Filtering | Enables filtering of received RTP packets by payload type. | Enable when the receiver must accept only packets containing the specified RTP payload type. |
| RTP Payload ID | Specifies the RTP payload-type number associated with the selected media stream. | Enter the dynamic payload ID defined by the sender or SDP. The sender and receiver values must match. |
| Selected Channels | Selects which audio channels from the incoming SMPTE ST 2110-30 stream are used by the receiver. | Choose the required audio channel or channel pair, such as 1–2. This setting applies to audio inputs. |
| Default Values | Restores the displayed configuration fields to their application defaults. | Select to reset the current settings. Review the restored values before applying or resending the configuration. |
| Refresh | Reloads the current configuration and status of the selected sender or receiver. | Select to retrieve the latest settings from the device. Unsaved changes may be replaced. |
| Resend | Reapplies or retransmits the displayed sender or receiver configuration to the selected resource. | Select after changing settings to send the configuration to the device. |
| Restart | Restarts the selected sender or receiver flow. | Select to stop and restart the resource so that its configuration is reinitialised. This may temporarily interrupt video or audio. Shown only for Live or Ready items. |
| Copy (new) | The left of the two small buttons beside Refresh. Copies all settings of the selected item. | Select an input or output, then select Copy. |
| Paste (new) | The right of the two small buttons beside Refresh. Pastes copied settings into the selected item. | Available only for an item of the same type, for example video input to video input. The label and addresses are pasted too, so change anything that must differ, then save. |
| Unsaved changes * (new) | A * after an item's name in the list means it has changes that are not saved or sent yet. | Save the changes, or select Refresh to discard them. |
| Save / Save/Send (new) | The Resend button changes its name to show what it will do. | Live or Ready items: Resend with no changes; Save/Send after a change (saves and sends to the card). Standby or Inactive items: Save, available after a change. |
Input preview (new)
The preview pane on the right of Senders & Receivers shows the picture, audio meters and stream health of the selected input. It uses the settings on screen, including unsaved changes, and does not save or send anything. It works on inputs only: to check an output, set up an input to receive it.
| Term | Definition | User Action or Effect |
| Format | Picture format of the incoming stream, for example 1080p 50. | ST 2110 streams do not carry their format, so choose it here. Formats that do not match the card's genlock frame rate are grayed out. |
| Pair audio | Video inputs only. Also receives the audio input with the same number. | Tick to hear and meter the matching audio input, as StudioEdge pairs them. |
| Channels | Number of audio channels in the stream. | Set to match the sender. |
| Preview | Starts receiving the selected input with the settings shown. | Select to start the preview. |
| Stop | Stops the preview and frees the connector. | The preview also stops when you select another item, leave the tab or save. |
| Listen | Plays the selected channel pair on this computer's speakers. | Choose the pair, for example 1-2, then select Listen. You can also click a channel number under the meters. |
| Receiving on | The connector the preview is using and how it joined the stream: (IGMPv3), (IGMPv2) or (no join). | If the chosen input is in use, for example by StudioPro, the preview uses a free connector on the same SFP with the same settings. Your live input is not interrupted. |
| Primary flow / Secondary flow / Audio flow | Stream health of each flow: Receiving, No stream or Off. | Receiving with 0 missing packets is what you want to see. Recovered counts packets the secondary flow filled in. |

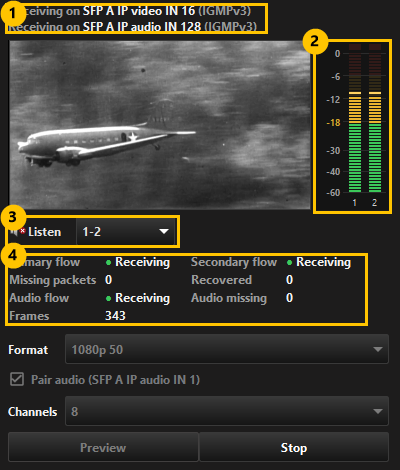

Working: picture, moving meters and Receiving on each flow.

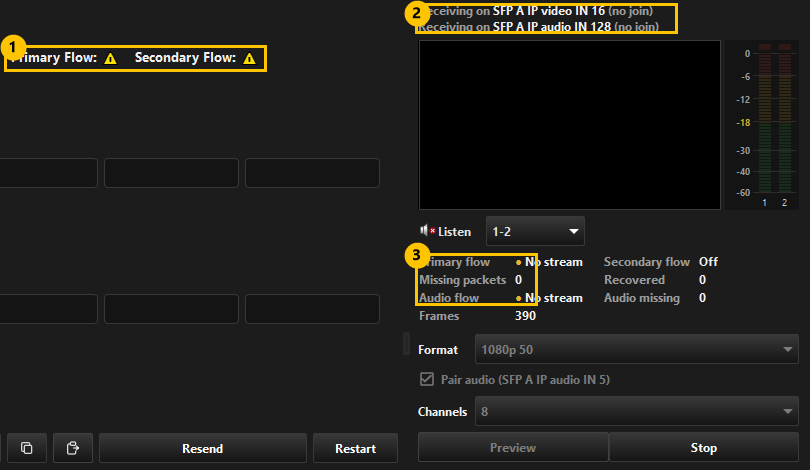

Not working: warning symbols beside Primary Flow and Secondary Flow, (no join) and No stream mean nothing is arriving. (no join) appears when IGMP Join Type is None, or IGMP v3 with an empty IGMP Filter IP List.
| You see | What it means |

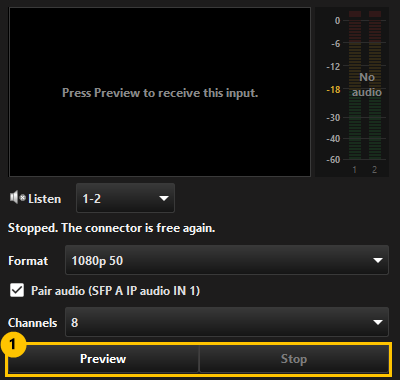

| Press Preview to receive this input. | Ready to start. |
| Select an input to preview it. | An output or a group is selected. |
| Not set up in Senders & Receivers: using the card's current settings. | This input has no saved settings; the card's current settings are used. |
| Not in the frame-rate family of the card genlock. | Choose a matching format or change the genlock. |
| Stopped. The connector is free again. | The preview has stopped. |
| The preview is not available: the Matrox backend or the card was not found. | Check that the Matrox driver is installed, then restart the computer. |

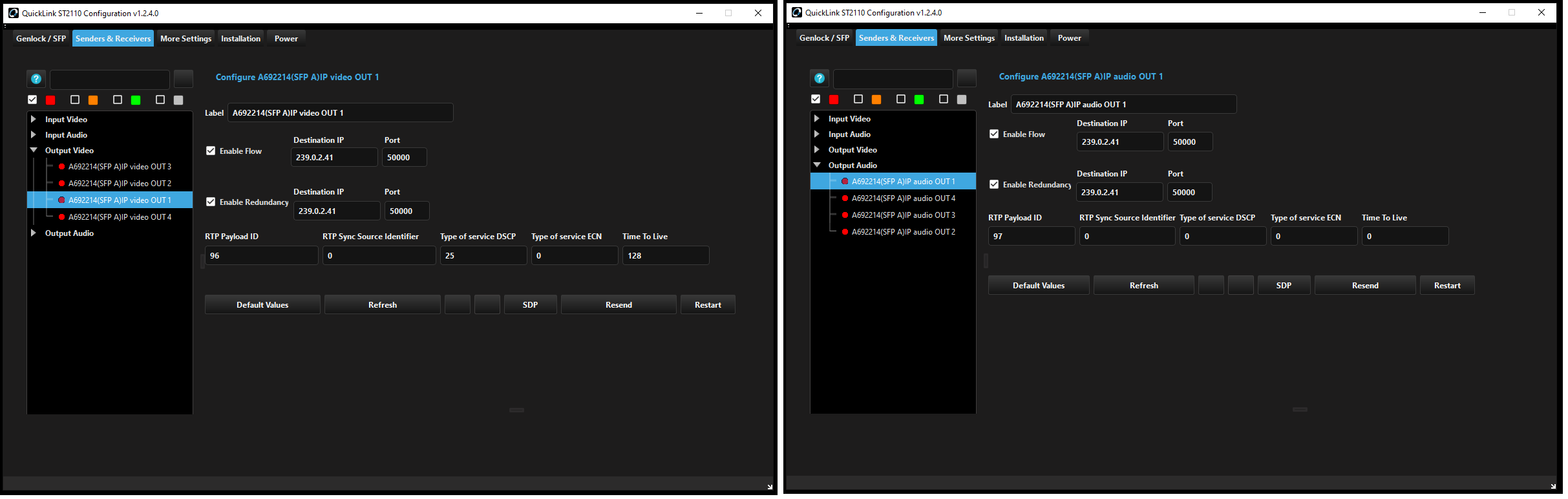

Output Video / Output Audio
| Term | Definition | User Action or Effect |
|---|---|---|
| Output Video | Contains the available SMPTE ST 2110 video senders. | Expand the section and select a video output to view or modify its configuration. |
| Output Audio | Contains the available SMPTE ST 2110 audio senders. | Expand the section and select an audio output to view or modify its configuration. |
| Configure | Displays the name of the output currently selected for configuration. | Select an output from the list to open its settings. |
| Label | Sets the descriptive name used to identify the selected sender. | Enter a clear, unique name. The label may also be advertised to NMOS controllers. |
| Enable Flow | Enables or disables the primary SMPTE ST 2110 output stream. | Enable to transmit the primary video or audio flow. Disable to stop transmission. |
| Destination IP – Primary | Specifies the multicast or unicast IP address to which the primary RTP stream is transmitted. | Enter the destination address required by the receiving device or network design. |
| Port – Primary | Specifies the UDP destination port used by the primary RTP stream. | Enter the port expected by the receiver. The value must match the SDP and receiver configuration. |
| Enable Redundancy | Enables a secondary redundant output path, normally used for SMPTE ST 2022-7 protection. | Enable to transmit a second copy of the stream over a separate network path. |
| Destination IP – Secondary | Specifies the multicast or unicast destination address for the redundant secondary stream. | Enter an address assigned to the secondary network path. It should normally differ from the primary destination address. |
| Port – Secondary | Specifies the UDP destination port used by the redundant secondary RTP stream. | Enter the secondary destination port. It may match the primary port where permitted by the network design. |
| RTP Payload ID | Specifies the RTP payload-type number assigned to the media stream. | Enter the dynamic payload ID expected by the receiver and defined in the SDP. Video commonly uses a different payload ID from audio. |
| RTP Sync Source Identifier | Sets the RTP Synchronisation Source identifier, known as the SSRC. It identifies the RTP source within the session. | Enter a valid SSRC value where a fixed identifier is required. Ensure that each active RTP source uses a unique SSRC. |
| Type of service DSCP | Sets the Explicit Congestion Notification value in the IP header. | Enter the ECN value required by the network design. Leave at the default unless ECN is specifically supported and configured. |
| Time To Live | Sets the IPv4 Time To Live value, which limits how many routed network hops the stream may traverse. | Enter a value appropriate for the network. A higher value allows the multicast stream to cross more routed hops. |
| Default Values | Restores the displayed sender settings to their application defaults. | Select to reset the current fields. Review the values before resending the configuration. |
| Refresh | Reloads the current configuration and status of the selected output. | Select to retrieve the latest settings from the device. Unsaved changes may be replaced. |
| SDP | Opens or provides the Session Description Protocol information for the selected sender. | Select to view, copy, or export the SDP required to configure a compatible receiver. |
| Resend | Reapplies the displayed configuration to the selected sender. | Select after changing settings to send the updated configuration to the device. |
| Restart | Stops and restarts the selected sender flow. | Select to reinitialise the output. Transmission will be interrupted temporarily. Shown only for Live or Ready items. |
| Copy / Paste (new) | Copy and paste all settings between outputs of the same type. | As for inputs: check the label and addresses after pasting, then save. |
| Unsaved changes * and Save / Save/Send (new) | As for inputs. | A * marks unsaved changes. Save/Send saves and sends a change to a Live or Ready output; Refresh discards changes. |

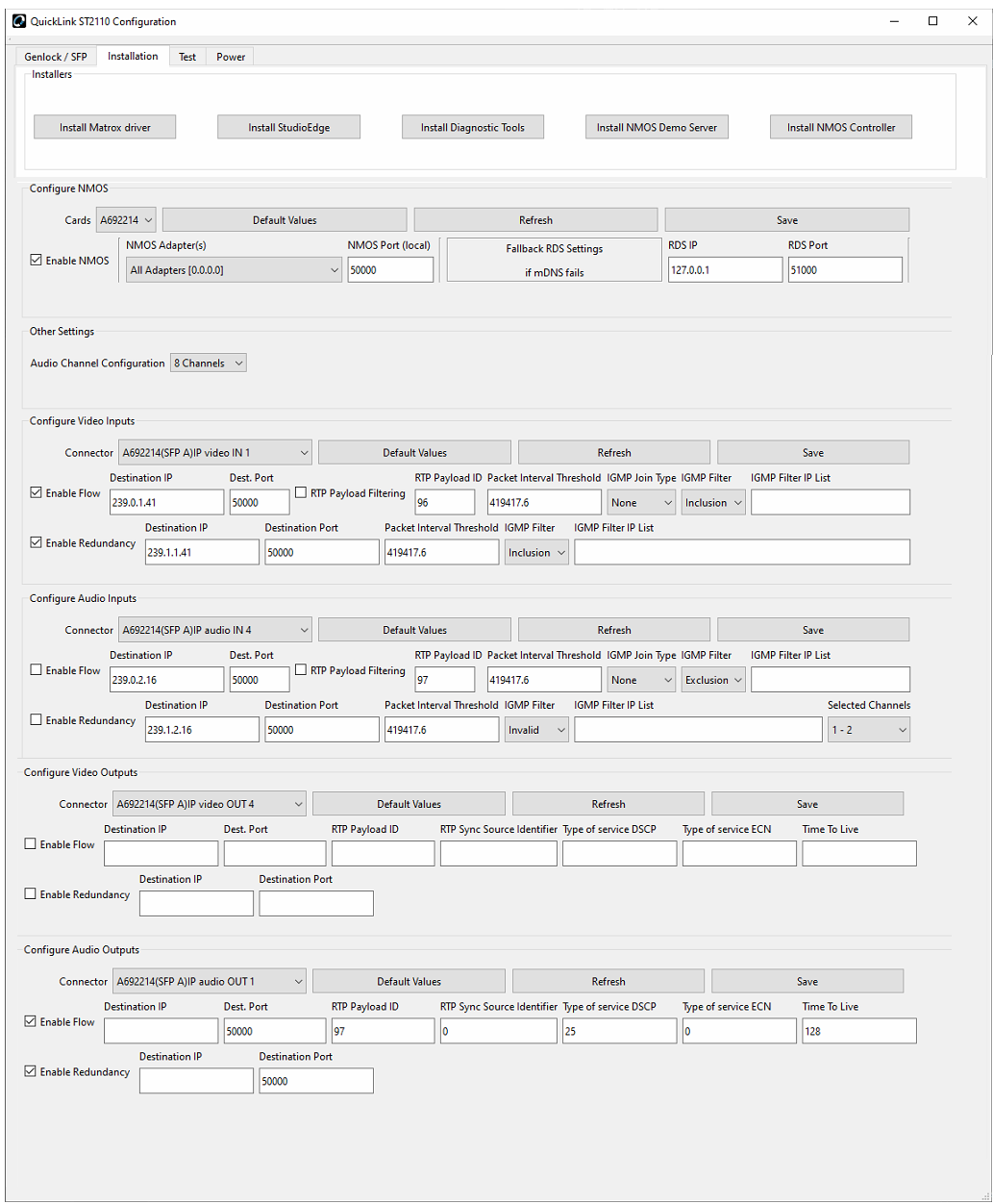

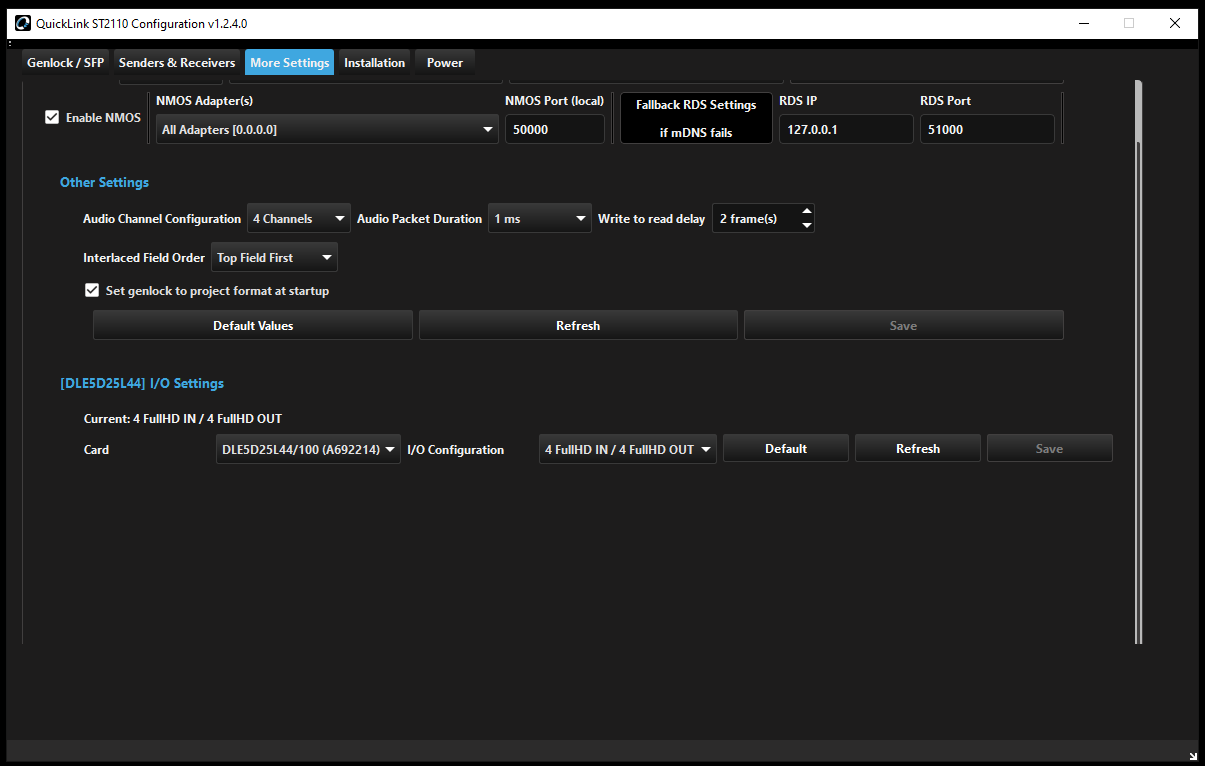

More Settings Tab
| Term | Definition | User Action or Effect |
|---|---|---|
| Configure NMOS | Section for NMOS (IS‑04/05) discovery/control settings. | Configure adapters, ports, discovery fallbacks. |
| Cards | Selects the installed I/O card being configured. | Changes the active hardware context. |
| Enable NMOS | Enables NMOS services on the device. | Starts/stops NMOS discovery & control. |
| NMOS Adapter(s) | Network adapter(s) used by NMOS services. | Choose specific NIC or all adapters. |
| NMOS Port (local) | Local HTTP port for NMOS node API. | Sets listening port (e.g., 50000). |
| Fallback RDS Settings (if mDNS fails) | Manual registry/discovery server used when mDNS is unavailable. | Provides IP/port for RDS fallback. |
| RDS IP | IP address of the registry/discovery service. | Used when mDNS discovery fails. |
| RDS Port | TCP port of the registry/discovery service. | Used when mDNS fails. |
| Default Values | Loads factory/default values for the current block. | Resets inputs to defaults (not saved until Save is clicked). |
| Refresh | Reloads live values from the device for the current block. | Discards unsaved edits in that block. |
| Save | Writes the current block’s settings to the device. | Commits changes. |

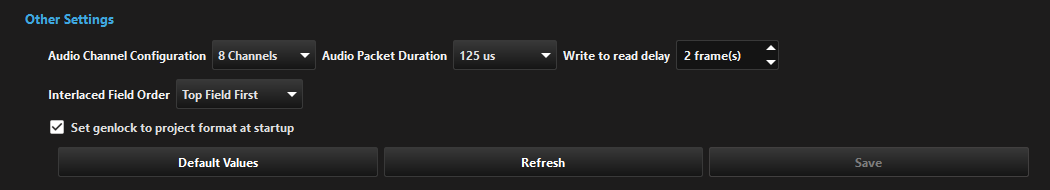

| Other Settings | Settings StudioPro or StudioEdge use for ST 2110 audio and video on this machine. | Most sites keep the defaults. Restart StudioPro or StudioEdge from the Power tab after saving. |
| Audio Channel Configuration | Audio channels in each audio stream: 2, 4, 8 or 16. Default 2. | Must match the equipment you send to or receive from. |
| Audio Packet Duration | Audio per network packet (ST 2110-30 packet time): 125 us, 250 us, 333 us, 1 ms or 4 ms. Default 1 ms. | Must match the other equipment. |
| Write to read delay | Frames of buffering. Default 2 frame(s). | More frames add delay. Change only if QuickLink Support advises it. |
| Interlaced Field Order | Field order for interlaced formats such as 1080i: Top Field First or Bottom Field First. Default Top Field First. | Set to match the source. |
| Set genlock to project format at startup | When ticked, the card genlock is set to match the project format. Default on. | Applies when the project format is chosen in StudioPro or StudioEdge. |
| Default Values / Refresh / Save | Controls for the Other Settings block. | Default Values loads defaults (not saved until Save). Refresh discards unsaved edits. Save stores the settings. |

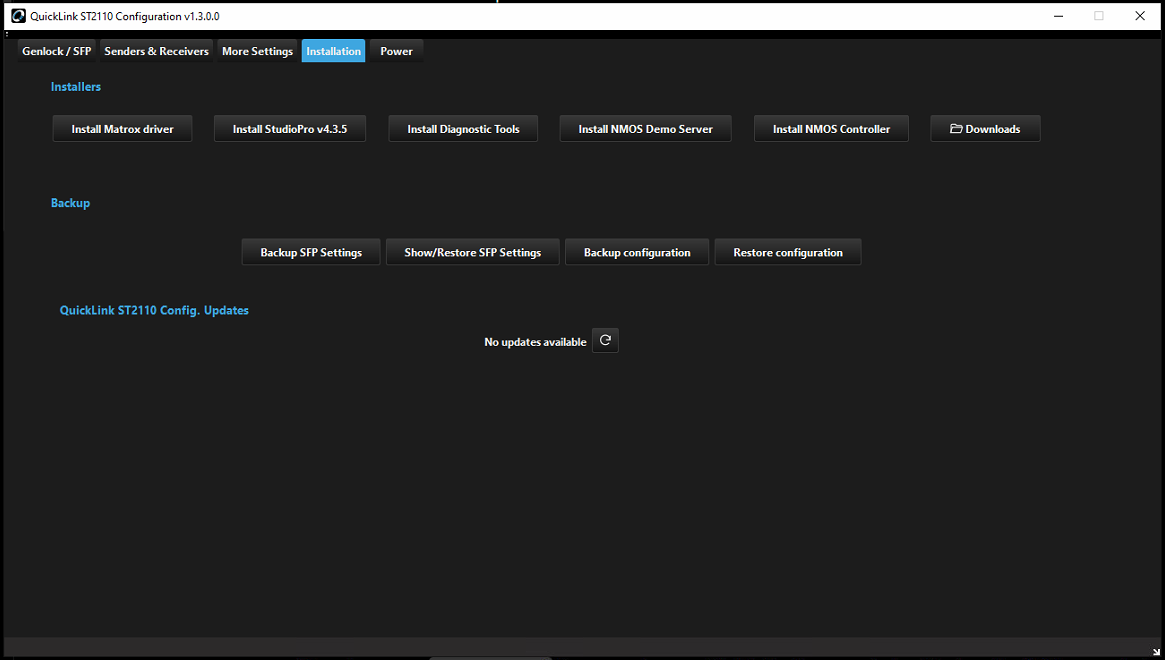

Installation Tab
| Term | Definition | User Action or Effect |
|---|---|---|
| Install Matrox driver | Launches the installer for the supported Matrox driver required by the SMPTE ST 2110 hardware. | Select to install or update the Matrox driver. A system restart may be required after installation. |
| Install StudioEdge / Install StudioPro | Launches the installer for the displayed version of QuickLink StudioEdge or StudioPro. The button names the product on this machine and the version, for example Install StudioPro v4.5.0. | Select to install or update the product to the specified version. |
| Install Diagnostic Tools | Installs the diagnostic utilities used to test, monitor, or troubleshoot the SMPTE ST 2110 system. | Select to install the available diagnostic tools on the local computer. |
| Install NMOS Demo Server | Installs an NMOS demonstration server for local testing of registration, discovery, and control workflows. | Select to install the demo server when creating or testing an NMOS environment. It is intended primarily for testing rather than production use. |
| Install NMOS Controller | Installs an NMOS controller used to discover and manage compatible NMOS senders and receivers. | Select to install the controller for testing device discovery and connection management. |
| Downloads | Opens the location containing additional installers, utilities, or downloadable support files. | Select to view the available QuickLink ST 2110 downloads. An internet connection may be required. |
| Backup SFP Settings | Saves the current SFP A and SFP B network settings for all detected cards, including IP address, subnet mask, and gateway. | Select before changing network or SMPTE ST 2110 settings. The saved values can later be reviewed or restored. |
| Show/Restore SFP Settings | Displays the previously saved SFP settings and provides an option to restore them to the relevant network interfaces and SMPTE 2059 configuration. | Select to review the saved settings and restore them when required. Administrative privileges may be needed to apply network changes. |
| Backup configuration | Creates a backup of the current QuickLink ST 2110 configuration and saves it as a registry backup file. | Select to choose a filename and save the current configuration. Backing up is recommended before making significant changes. |
| Restore configuration | Imports a previously saved QuickLink ST 2110 configuration backup and reapplies the stored configuration. | Select a valid backup file to restore the configuration. Associated SFP and SMPTE 2059 settings may also be reapplied. |
| QuickLink ST 2110 Config. Updates | Displays the update status of the QuickLink ST 2110 Configuration application. | Review this section to determine whether a newer application version is available. |
| No updates available | Indicates that no newer version of the QuickLink ST 2110 Configuration application has been detected. | No action is required. Check again later for future updates. |
| Update available | Indicates that a newer version of the QuickLink ST 2110 Configuration application is available. | Select the associated update control to download or install the newer version. |
| Refresh update status | Checks again for an available QuickLink ST 2110 Configuration application update. | Select the refresh button beside the update status to perform a new update check. An internet connection may be required. |
| Install (update) | Shown beside Update available: v1.x.x.x. | Select to install the update. The app closes, updates and opens again. If it closes without updating (seen when updating from 1.4.0.9), run the latest StudioPro installer, which also updates this app. |

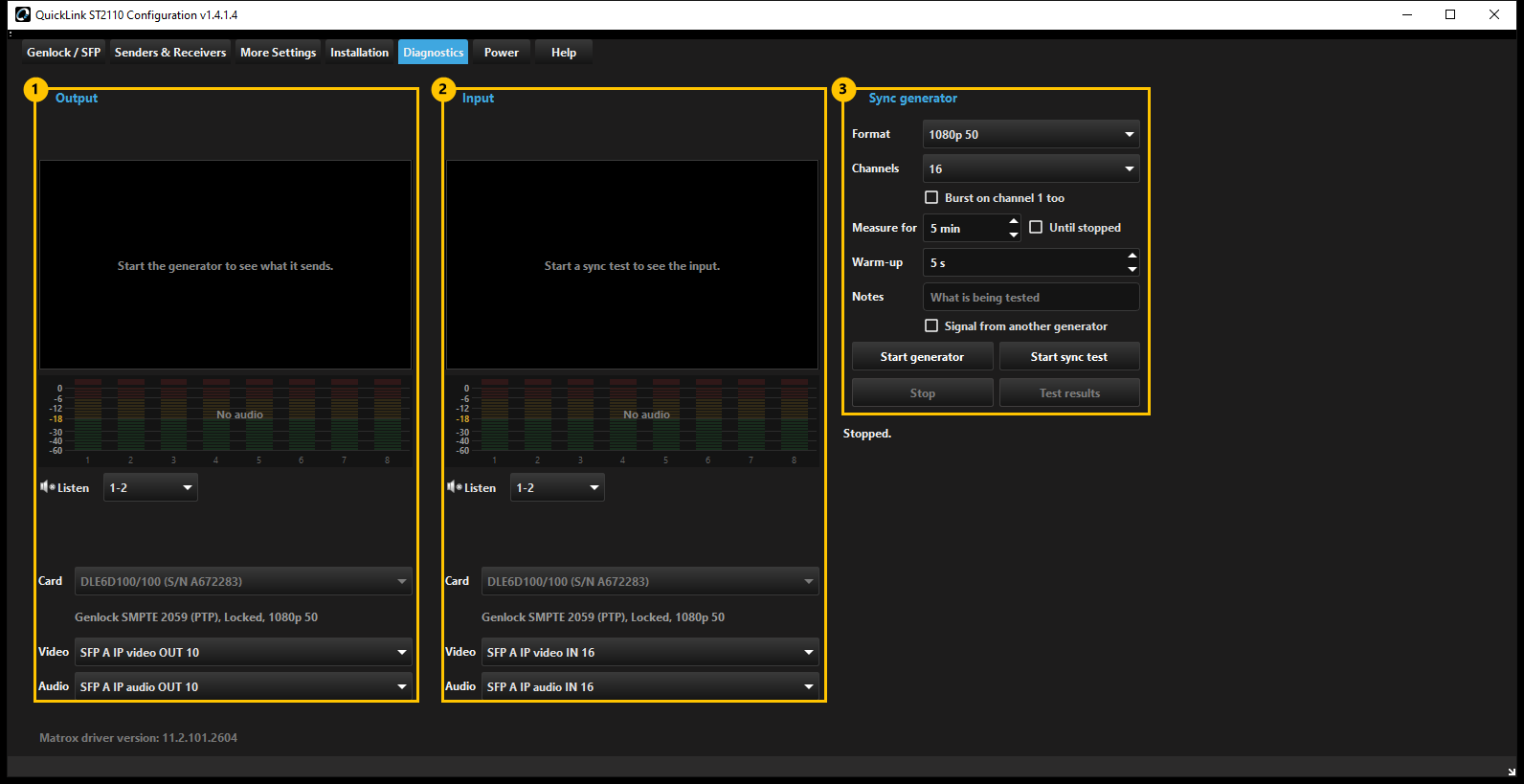

Diagnostics Tab (new)

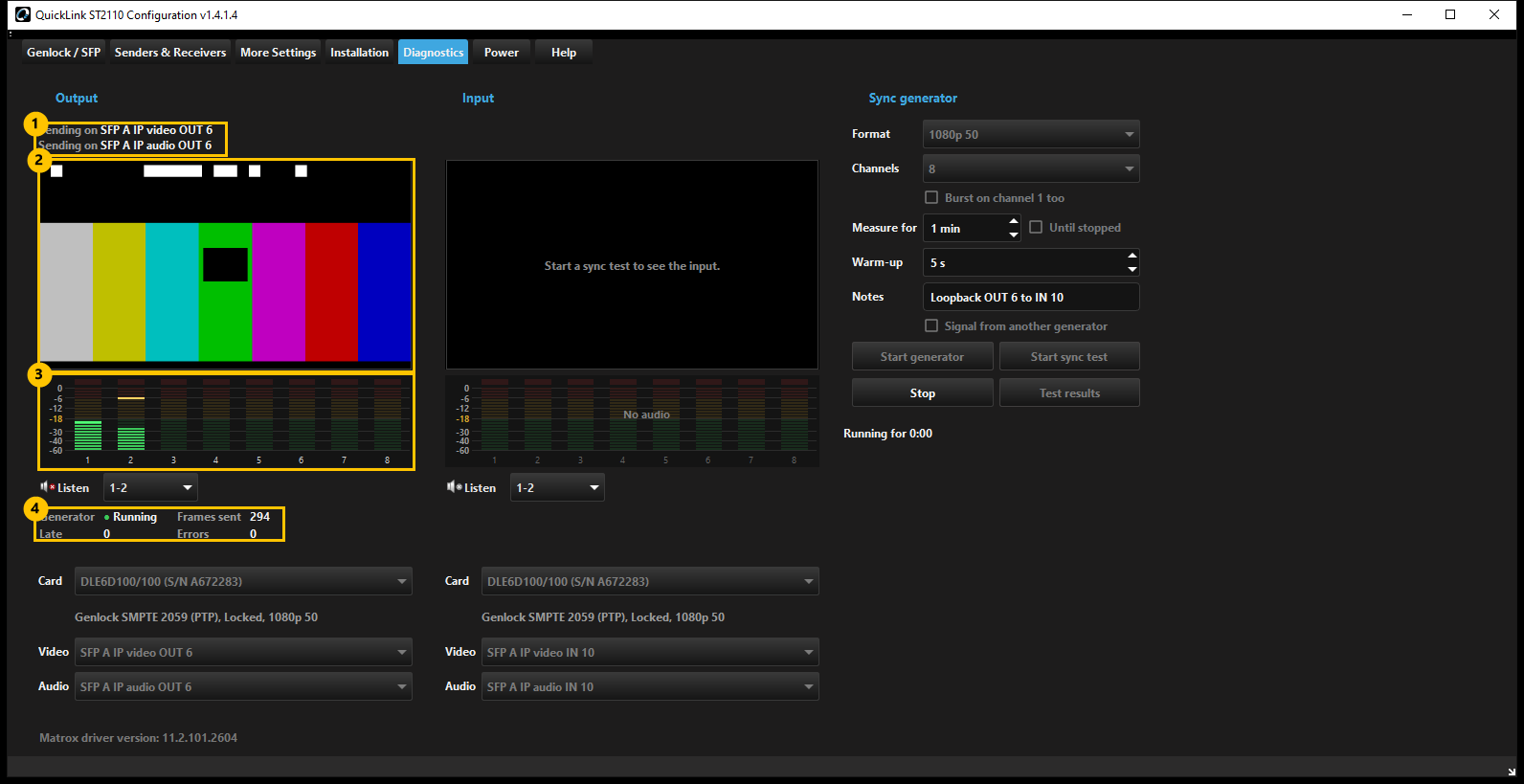

Sends an ST 2110 test signal from an output and measures it when it comes back on an input: audio/video sync, dropped or repeated frames, and audio gaps or clicks. The test picture is color bars with a white box that flashes once a second, with a short audio burst at the same moment. Use it to test a signal path through a switch, router or other device and back.
| Term | Definition | User Action or Effect |
| Output column | Card, video output and audio output that send the test signal. The preview shows what is sent. | Choose outputs that are set up in Senders & Receivers and not in use. An output in use is never taken over: the message 'OUT x in use. Choose a free output that is set up in Senders & Receivers.' appears. |
| Input column | Card, video input and audio input that receive the signal back. The preview shows what arrives. | The input must be set up to receive what the output sends, through the path under test. |
| Genlock line | Gray text under Card, for example Genlock SMPTE 2059 (PTP), Locked, 1080p 50. | Read-only. |
| Format | Picture format of the test signal. | Formats outside the genlock's frame-rate family are grayed out. The test never changes the genlock. |
| Channels | Audio channels in the test signal: 2, 4, 8 or 16. | Set to match the path. |
| Burst on channel 1 too | Also puts the audio burst on channel 1. | Tick when the path carries only one channel. |
| Measure for / Until stopped | How long the sync test runs, in minutes, or until Stop. | Set before starting. |
| Warm-up | Seconds at the start that are not measured. | Lets the equipment under test settle. |
| Notes | Description of the test, for example 'Studio 2 router, path B'. | Shown at the top of the results. |
| Signal from another generator | Measures a test signal from somewhere else; this card's generator does not start. | Tick when another device sends the signal. |
| Start generator | Sends the test signal on the output only. | Use when another device measures, or you need a known signal. |
| Start sync test | Sends the test signal and measures it on the input. | The status shows 'warming up' first; measuring starts after the warm-up time. |
| Stop | Stops the generator or the test. | Stopping a sync test opens the results. |

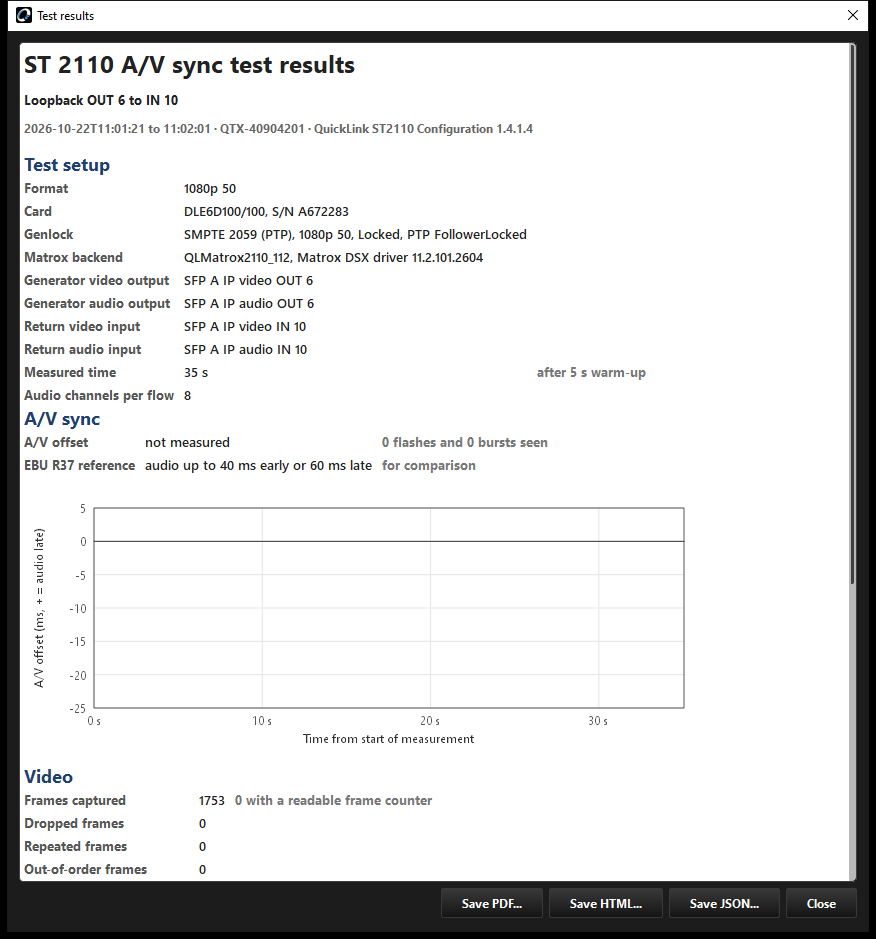

| Test results | Opens the results of the last test. | Save PDF, Save HTML and Save JSON keep a copy (suggested folder: Documents\QuickLink\ST2110 Diagnostics). |
Generator running: Sending on names the outputs; Generator Running with Late 0 and Errors 0 is normal.
| Reading | What it tells you | Good result |
| Offset, Mean | How far audio is from video. + means audio is late. | Close to 0 ms is best. |
| Range, Drift | How much the offset moves during the test, and per hour. | Small values are best. |
| Dropped frames, Repeated, Out of order | Lost, doubled or misordered video frames. | 0 is expected. |
| Mixed fields, Field order swaps | Problems with interlaced formats such as 1080i. | 0 is expected. |
| Test picture | Whether the test picture arrived. | found is expected. |
| Tone, Gaps, Clicks, Discontinuities | Level of the test tone, and breaks, clicks or jumps in the audio. | A steady level and 0 events are expected. |

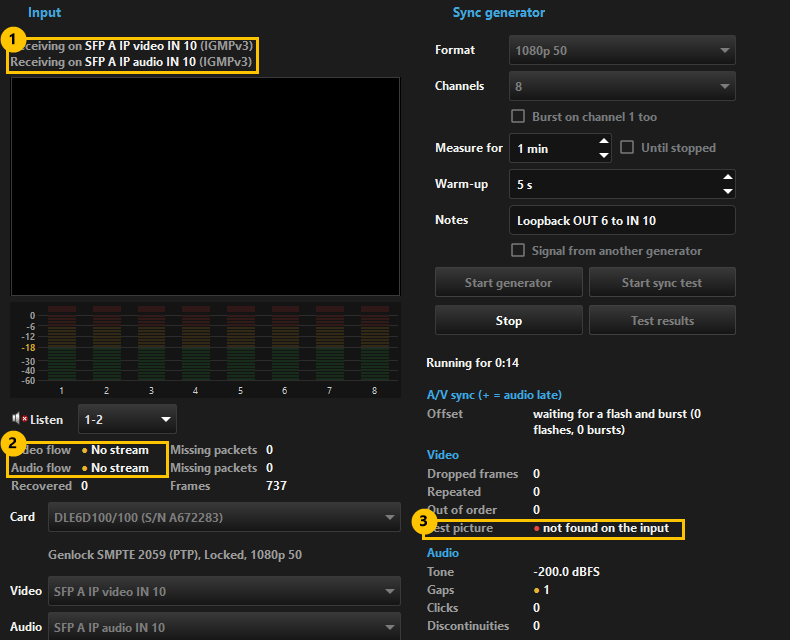

Not working: Video flow and Audio flow show No stream, Test picture shows 'not found on the input' and the offset stays at 'waiting for a flash and burst'. The generator is working, so check the input addresses and that the network passes the stream. On one card, the input's primary port receives what the output's redundant port sends.
The results window never says pass or fail. It shows the EBU R 37 reference for comparison: audio no more than 40 ms early or 60 ms late.
Power Tab
| Term | Definition | User Action or Effect |
|---|---|---|

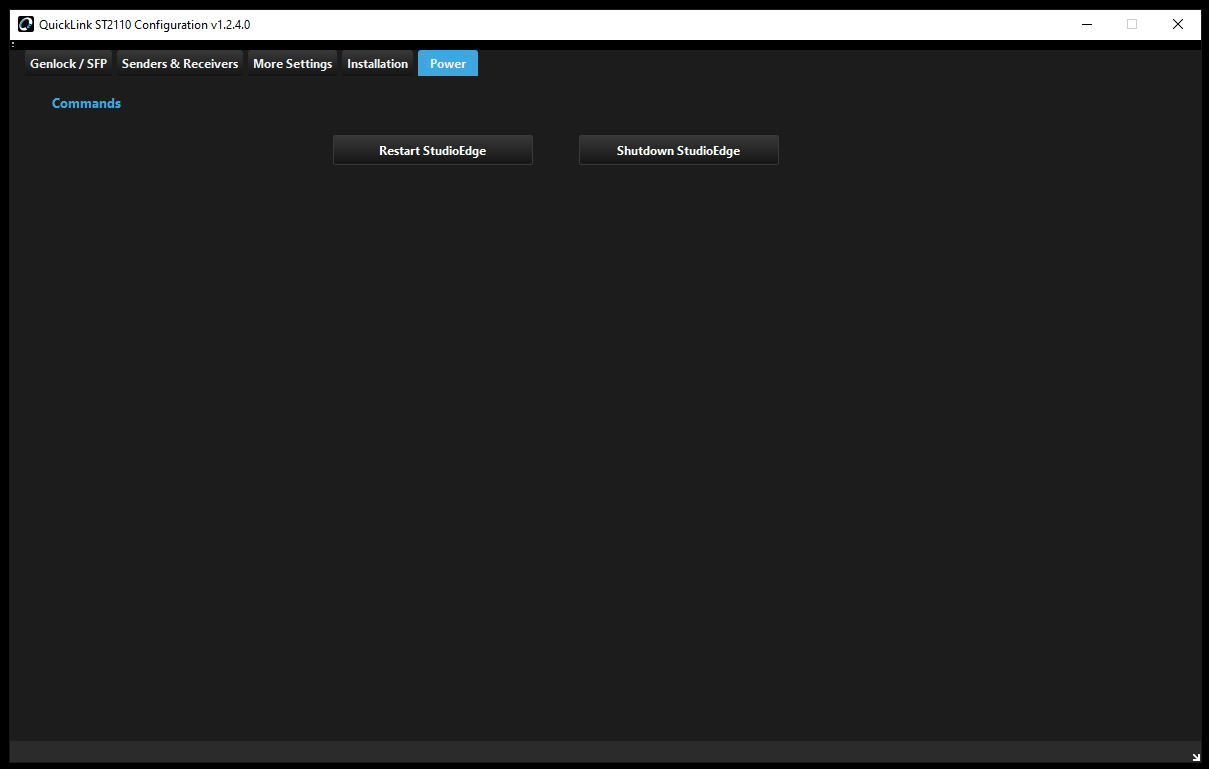

| Restart StudioEdge | Stops and then restarts the StudioEdge application or service. On StudioPro systems the button reads Restart StudioPro. | Select to restart StudioEdge. Active SMPTE ST 2110 inputs and outputs may be interrupted while the application restarts. |
| Shutdown StudioEdge | Stops the StudioEdge application or service without restarting it. On StudioPro systems the button reads Shutdown StudioPro. | Select to shut down StudioEdge. Active SMPTE ST 2110 inputs and outputs will stop and remain unavailable until StudioEdge is started again. |
Help Tab (new)
| Term | Definition | User Action or Effect |

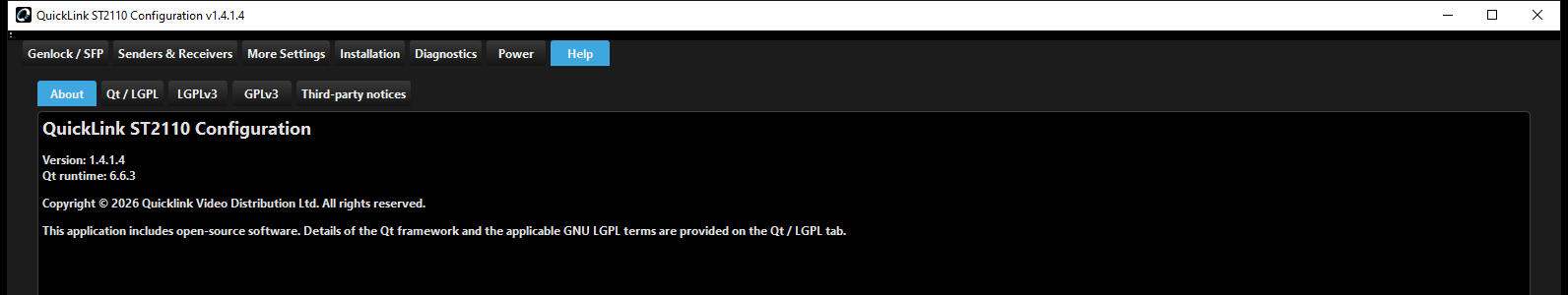

| About | App name, version, Qt runtime version and copyright. | Quote the version when you contact QuickLink Support. |
| Qt / LGPL, LGPLv3, GPLv3, Third-party notices | Open-source license notices for software the app includes. | Read-only. |
Acronyms
- IGMP (Internet Group Management Protocol) — Hosts/routers protocol for joining/leaving IPv4 multicast groups.
- SSM (Source-Specific Multicast) — Multicast model where receivers specify the exact source(s) to receive.
- SFP (Small Form-factor Pluggable) — Pluggable optical/electrical transceiver module (the port/cage on the device).
- PTP (Precision Time Protocol [IEEE 1588]) — Network clock sync used by SMPTE 2059/2110 systems.
- DSCP (Differentiated Services Code Point) — QoS marking bits in the IP header to prioritize traffic.
- ECN (Explicit Congestion Notification) — IP/TCP bits that signal congestion without dropping packets.
- NMOS (Networked Media Open Specifications) — AMWA specs (IS-04/05 etc.) for discovery, registration, and control.
- RDS (Registration & Discovery System) — NMOS registry service used when mDNS isn’t available/desired.
- mDNS (Multicast DNS) — Zeroconf name/service discovery on local subnets (no central server).
- SDP (Session Description Protocol) — Text description of media streams/parameters (e.g., for RTP).
- RTP (Real-time Transport Protocol) — Carries time-stamped audio/video packets over IP.
- SSRC (Synchronization Source Identifier) — The RTP stream’s unique 32-bit ID.
- VLAN (Virtual Local Area Network) — Layer-2 segmentation using 802.1Q tagging.
- VID (VLAN Identifier) — The numeric VLAN tag (1–4094) in 802.1Q.
- PCP (Priority Code Point) — 802.1p priority level (0–7) inside the VLAN tag.
- DEI (Drop Eligible Indicator) — 802.1Q bit indicating a frame can be dropped under congestion.
- BMCA (Best Master Clock Algorithm) — PTP process that elects the grandmaster clock.
- TTL (Time To Live) — Hop limit for IP packets.
- PPM (Parts Per Million) — Units for tiny frequency offsets (e.g., genlock clock trim).
- E2E (End-to-End [delay mechanism]) — PTP path-delay method measuring master↔slave directly.
- P2P (Peer-to-Peer [delay mechanism]) — PTP path-delay method measuring hop-by-hop between neighbors.
- SMPTE (Society of Motion Picture and Television Engineers) — Standards body behind ST 2110/2059.
- ST 2110 (SMPTE Standard 2110) — IP transport for separate video (-20), audio (-30), ANC (-40) essences.
- ST 2059 (SMPTE Standard 2059) — Profiles of PTP for broadcast timing and genlock over IP.
- Rx (Receive) — Direction indicator (incoming stream/path).
- Tx (Transmit) — Direction indicator (outgoing stream/path).
- A/V sync — Timing of sound against picture; + means audio is late.
- dBFS (decibels relative to full scale) — Digital audio level; 0 dBFS is the maximum.
- EBU R 37 — EBU recommendation for sound-to-picture timing: audio no more than 40 ms early or 60 ms late.
