Installing QuickLink StudioPro Cloud on AWS (Amazon Web Services EC2)

Navigate to Amazon Web Services (AWS), and sign in.

Once logged in, within Services, navigate to EC2. This can be done by locating through recent/all services, or by simply searching EC2.

Within the EC2 Instances, select your chosen Region from the top-right corner.

Next select Launch Instances.

Launch instance.png

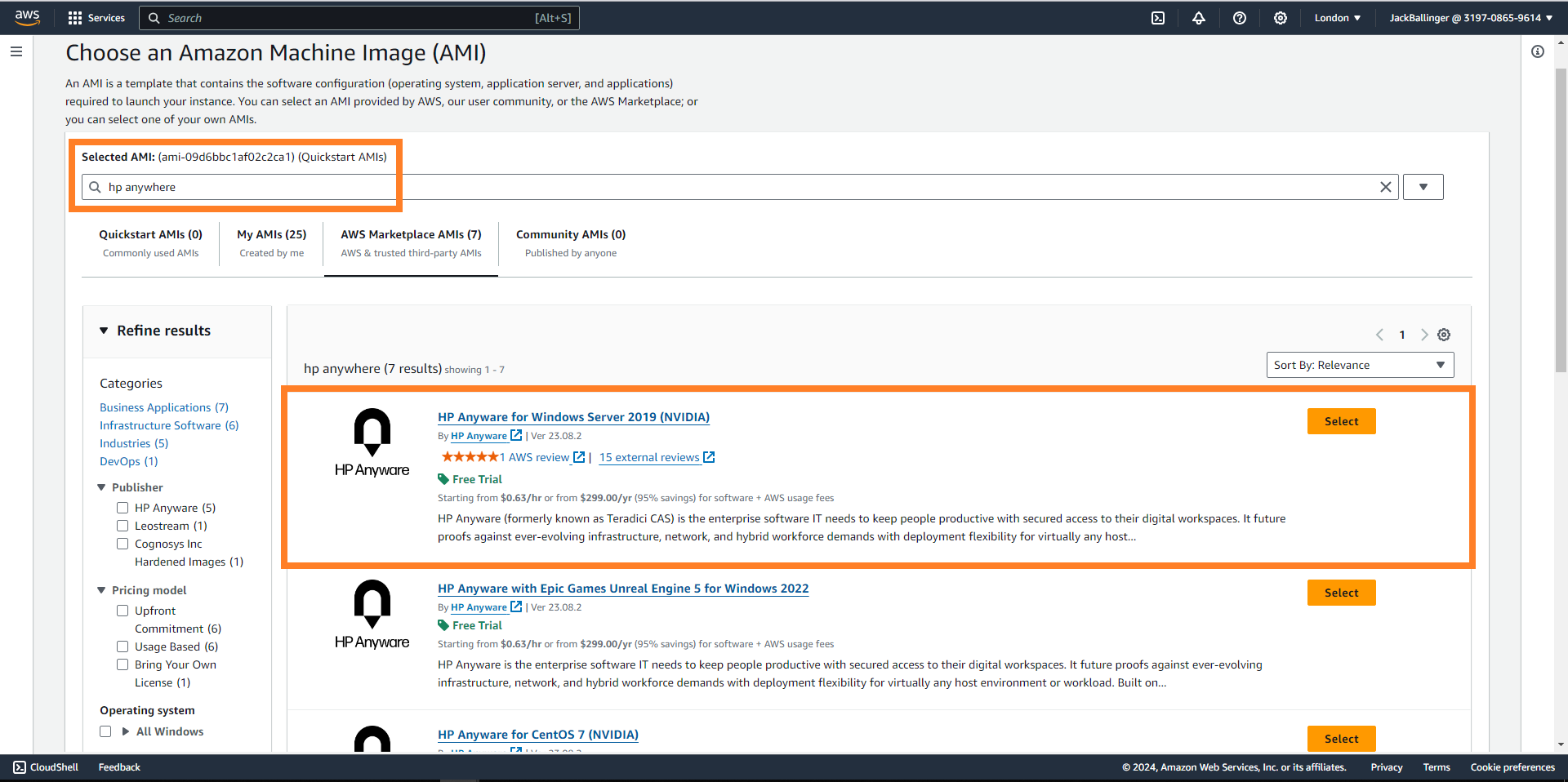

Once your instances are open, select the Amazon Machine Image (AMI) you would like to use. Search for HP Anywhere and then select the 2019 NVIDIA image.

AWS HP Anywhere.png

You will now need to select your instance type, select the g4dn.4xlarge instance.


Underneath that you will need to select an existing key pair or create a new key pair. Select Create a new key pair, then enter a friendly name for your Key pair, such as QuickLink StudioPro Cloud Instance.

Create new key pair.png

Once entered, click Create Key Pair to download your key. This key is extremely important as it is used to enter your AMI

Create key pair.png

Chose a safe place to save this as it's very important!

Save pem.png

Configure your Network Settings.

Configure network settings.png

Make sure you're happy with your Storage Settings


If you haven't done so already, give your instance a friendly name.


Make sure you're happy with all your configuration. A summary can be seen down the right-hand side. When you're ready, click Launch Instance.


Your instance will now begin launching. Navigate back to your EC2 Instances. Your created instance will be available and the current state will display. Please note that it may take a few minutes until your instance is in a running state.

All instances.png

Next, right-click your newly created instance and click Connect.


Select the RDP client tab, then click Get password. This may take a couple of minutes for your password to be available.

Get password.png

Once available, you will need to decrypt your instance password by uploading the key pair downloaded previously. Click Upload private key, then select the Key pair file downloaded previously. Once uploaded, click Decrypt Password.

Private key.png

Your password will now be decrypted. Copy and make a note of this password, this password is extremely important as it is used to connect to your instance.

Private pem.png

Returning back to your EC2 instances, select the Elastic IPs section from the menu on the left-hand side.

Elastic IPs.png

To create a new one, select Allocate Elastic IP addresses.

Allocate EIPs.png

Now select Allocate.

Your Elastic IP address will now be allocated. Now select your allocated Elastic IP address just created, then click the Actions drop-down menu, and select Associate Elastic IP address.


Within the Instance option, select the Instance created previously, then click Associate.

Select Instance.png

Your Elastic IP will now be assigned. To check this, navigate to your EC2 Instances and ensure an IP is within the Elastic IP column of your instance. Make a note of the Elastic IP displayed here, as this will be the IP you connect using.

You will now need to download the HP Anywhere software client. Navigate to the HP Anywhere Software and Mobile Clients download page. Select the option for your chosen operating system; Windows, macOS or Linux.

Software client page.png

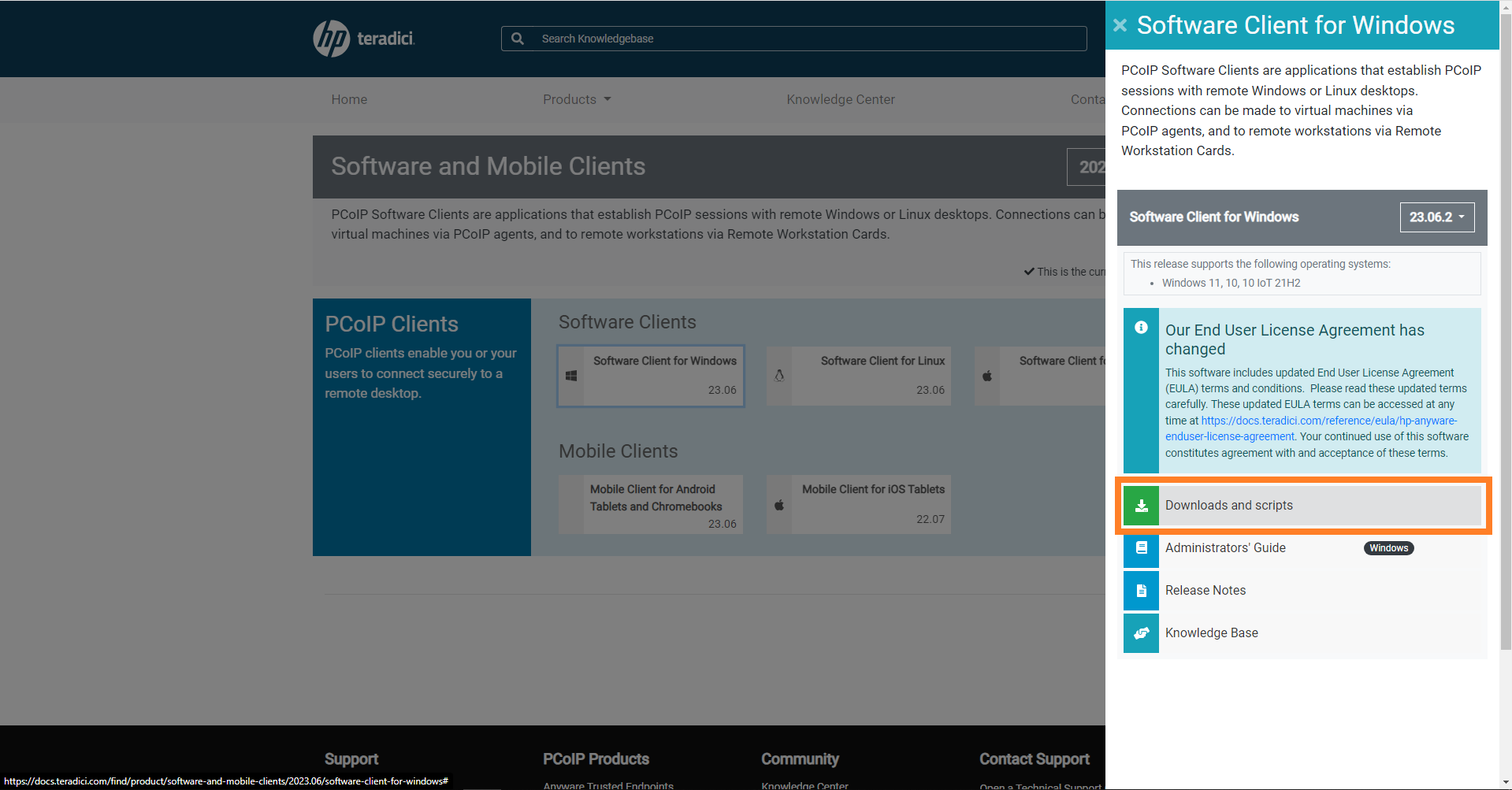

Once selected, click Downloads and scripts. Read through the license agreement, once happy click Agree, then click Download now.

downloads and scripts.png

Once downloaded, run the HP Anywhere PCoIP client installer and follow steps for installing.

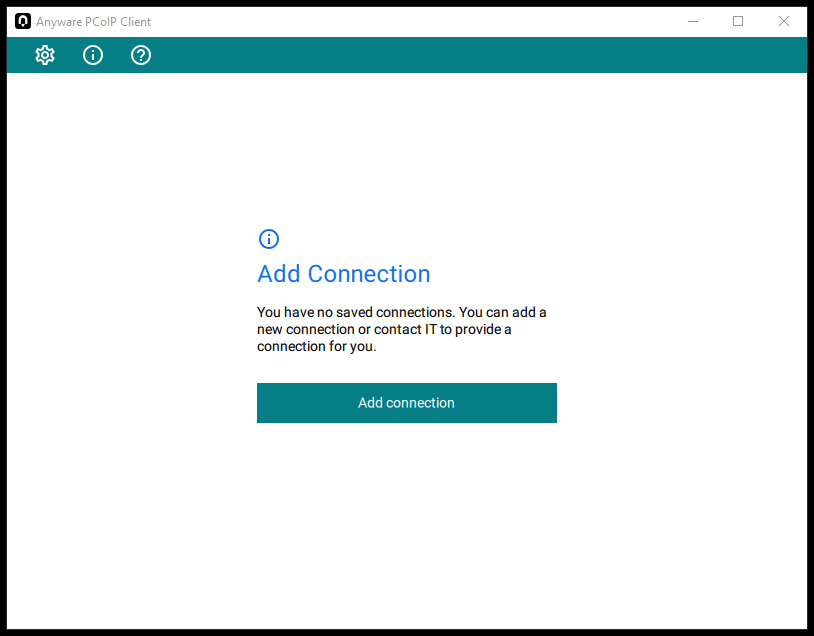

When your installation has completed, launch the PCoIP client application.

Software client.png

Within the Host Address or Code field, enter the Elastic IP created previously, then enter a friendly connection such as Quicklink Cre8. Click NEXT.

Add connection.png

You may get a certificate popup warning, click Connect Insecurely.

Connect Insecurely.png

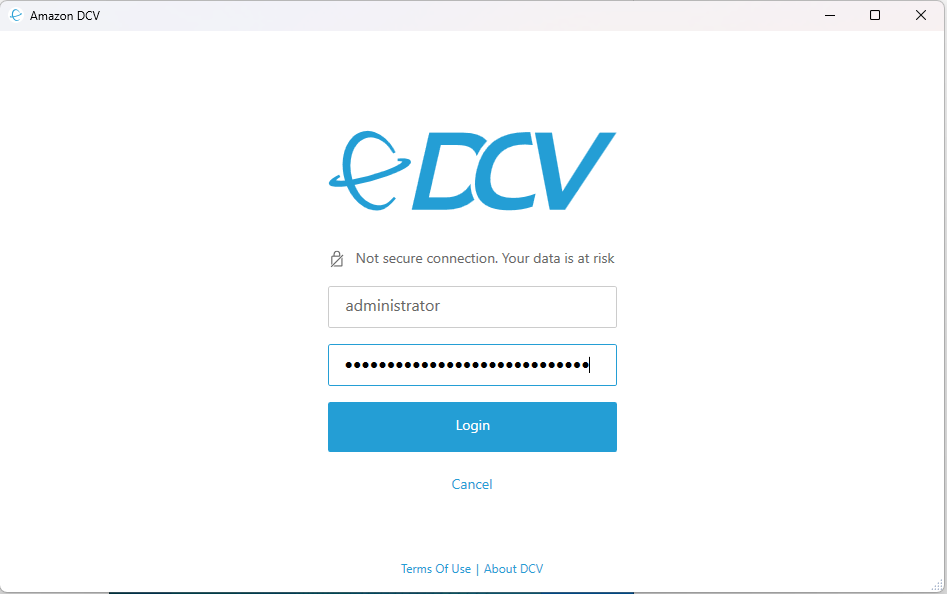

You will now be prompted to enter a username and password. Within the username field, enter Administrator. Within the password field, enter the password that was decrypted and copied previously. When entered, click LOGIN.

Log in.png

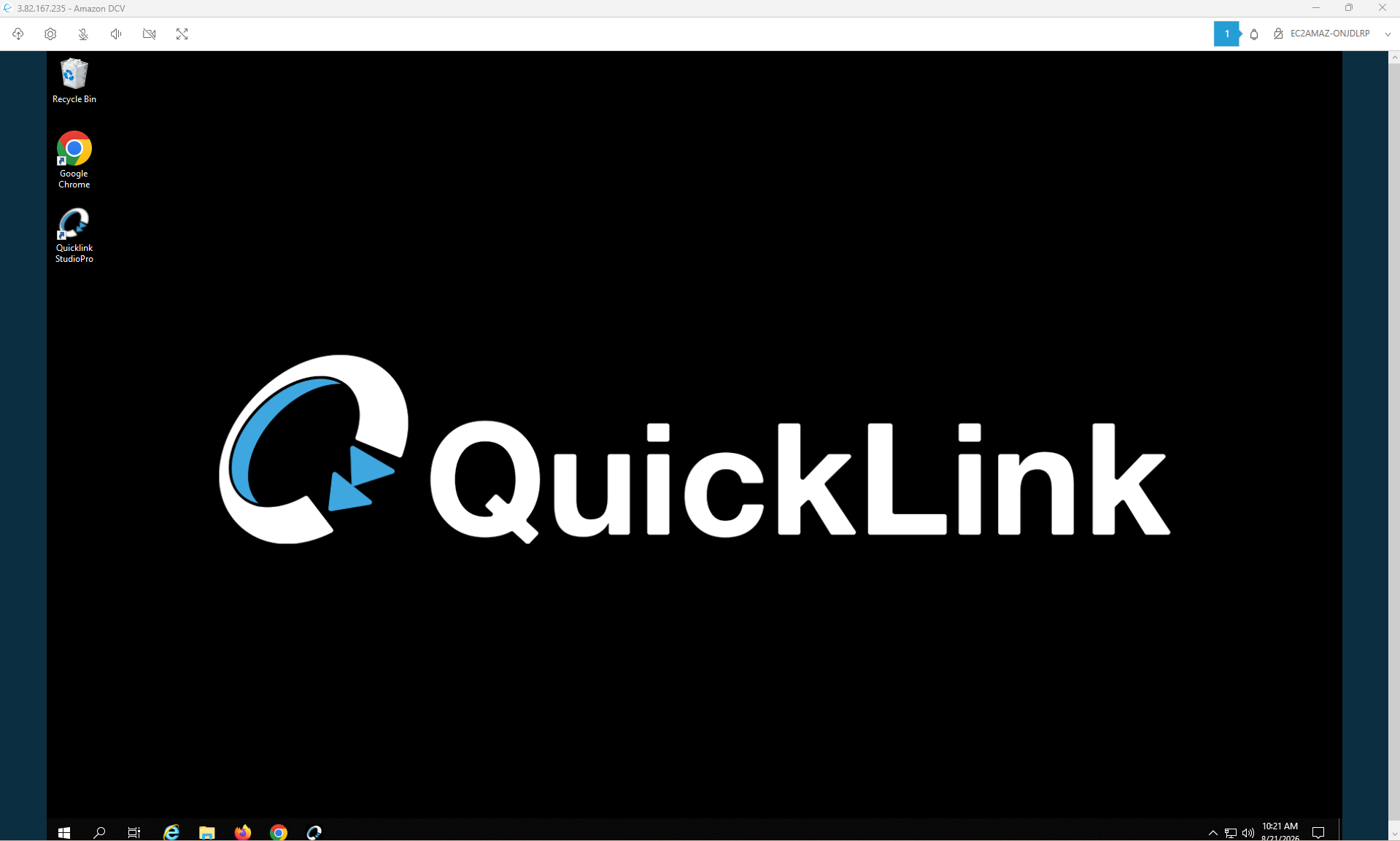

Your instance will now boot and appear. There will now be a little configuration/setup needed on the instance. On the Windows toolbar, click the Networks icon in the bottom-right corner. When prompted, click Yes to allow your PC to be discoverable by other PCs and devices on the network.

Next, click the audio icon from the Windows toolbar in the bottom-right corner. A prompt will appear to enable Windows Audio Service, click Yes.

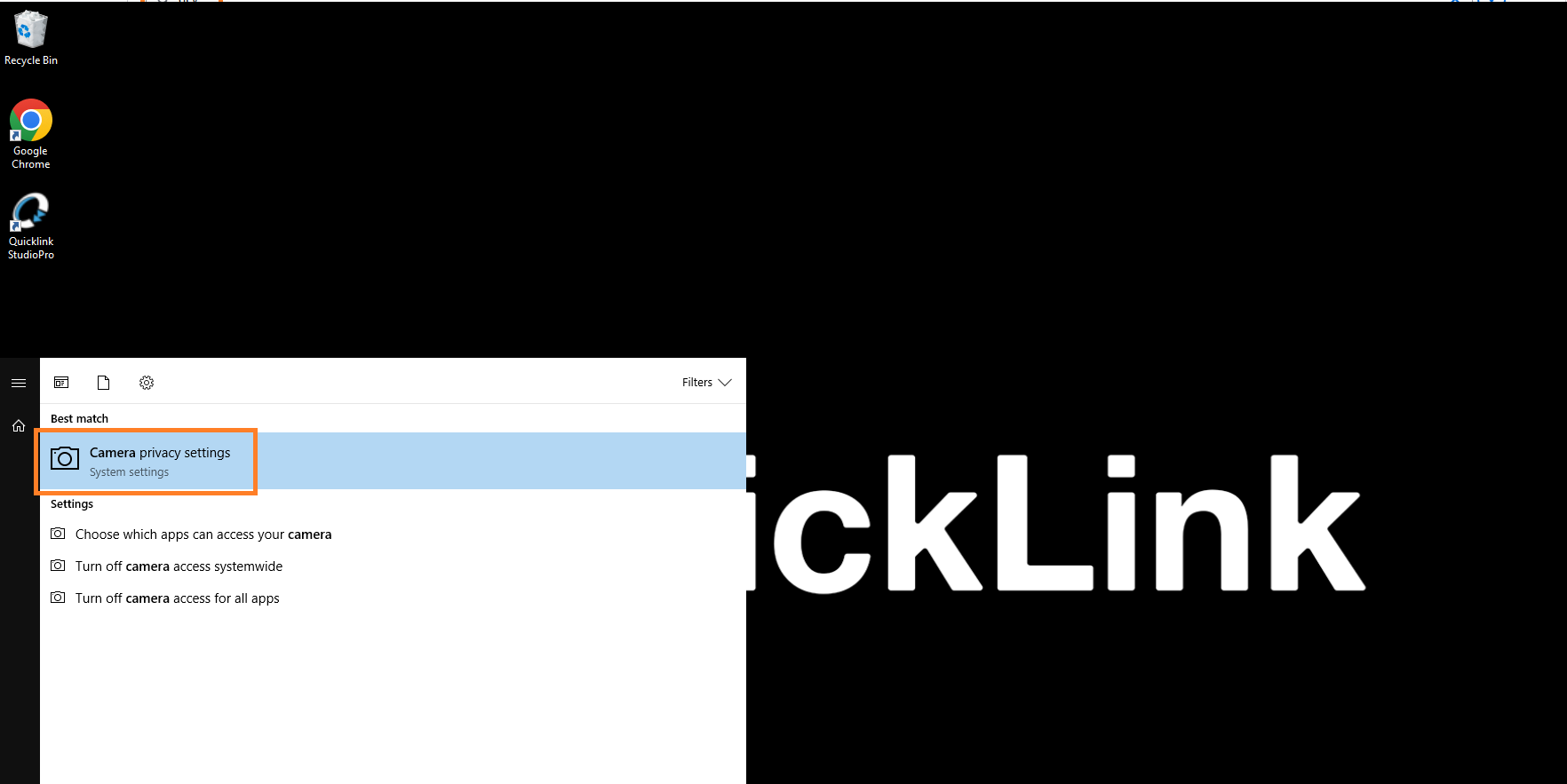

You will now need allow apps to access your Camera and Microphone. Open the Windows menu by selecting the Windows icon from the bottom-left corner, search camera then select Camera privacy settings.

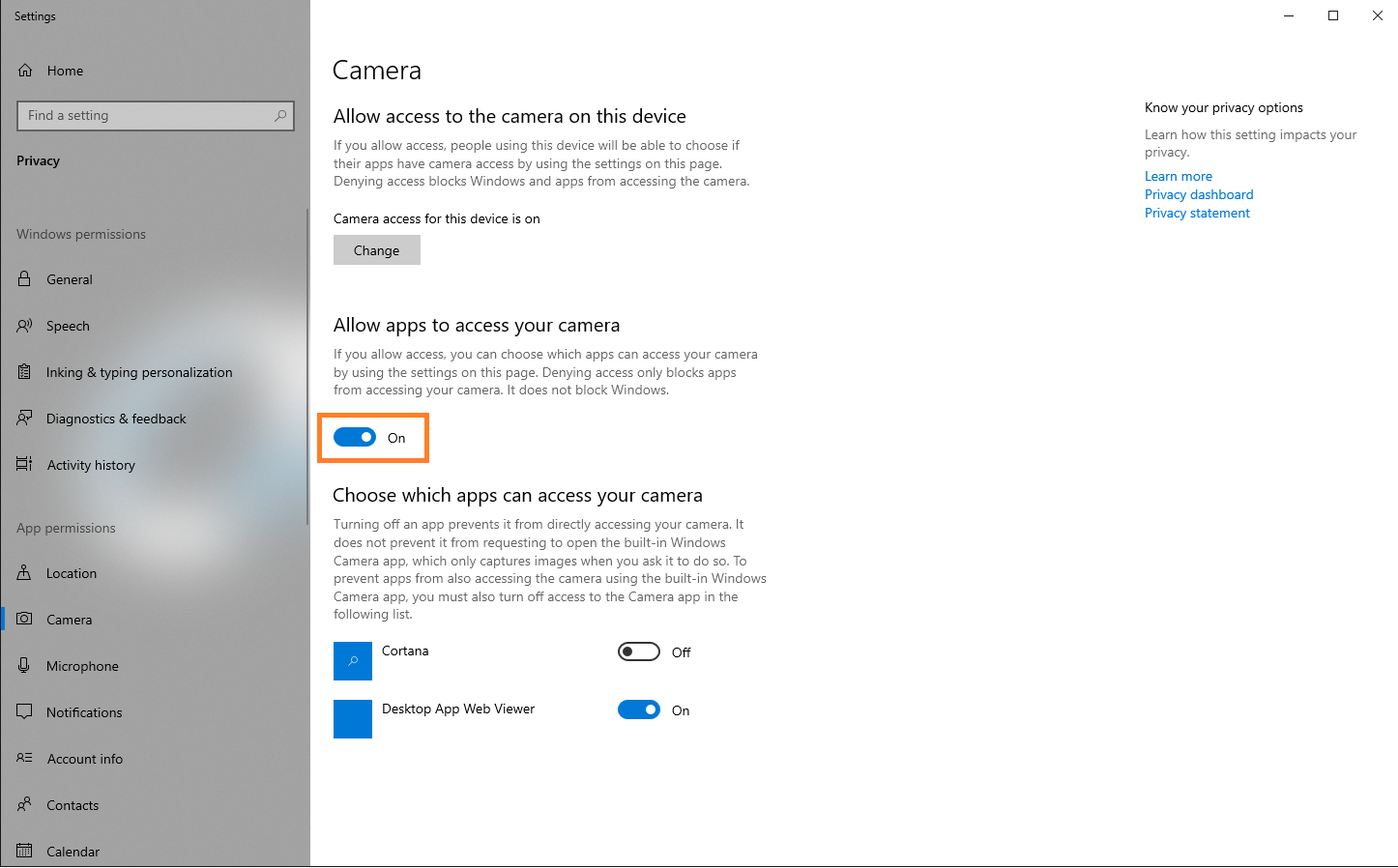

Within the Allow apps to access your camera section, change from Off to On.

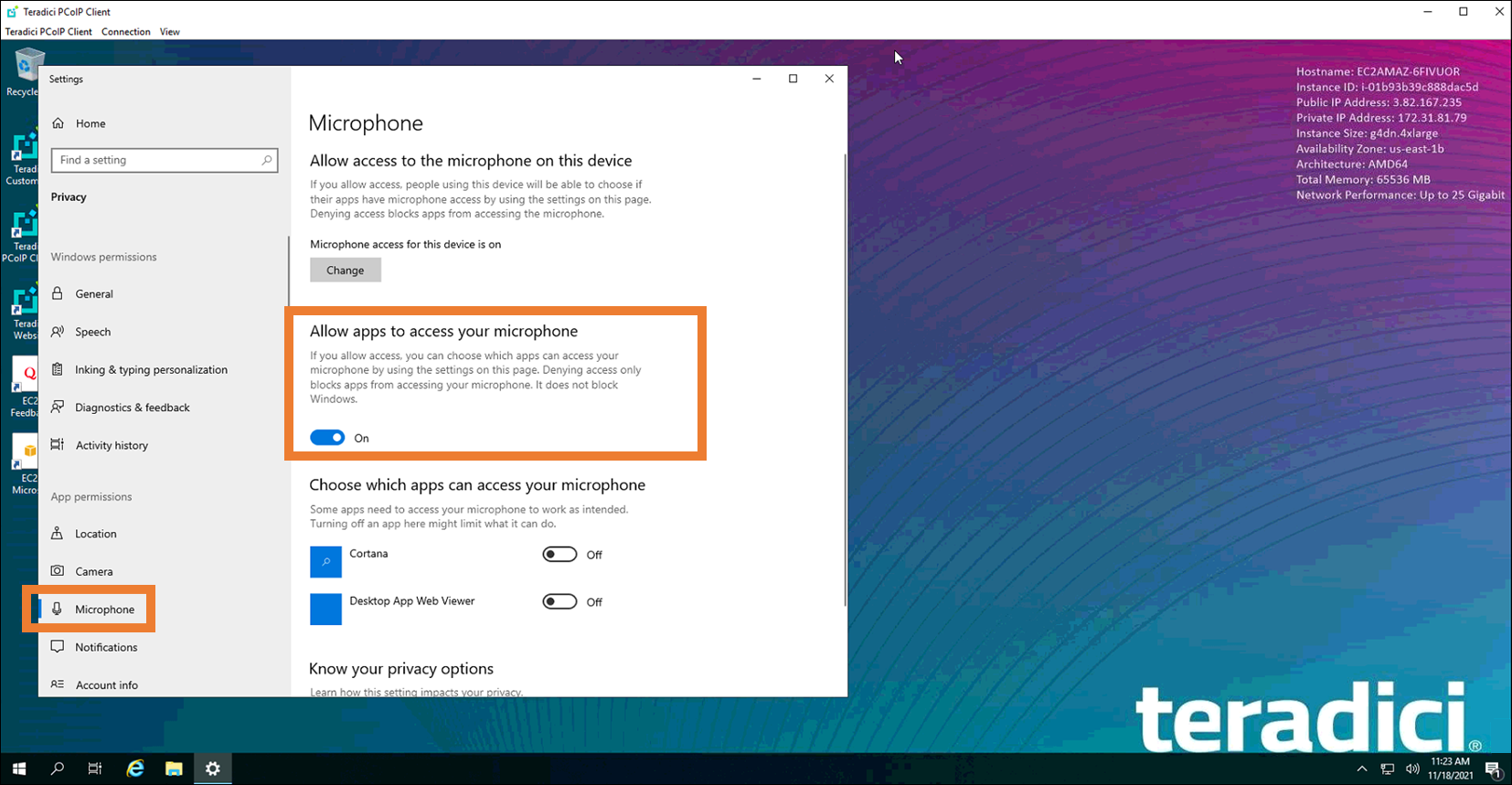

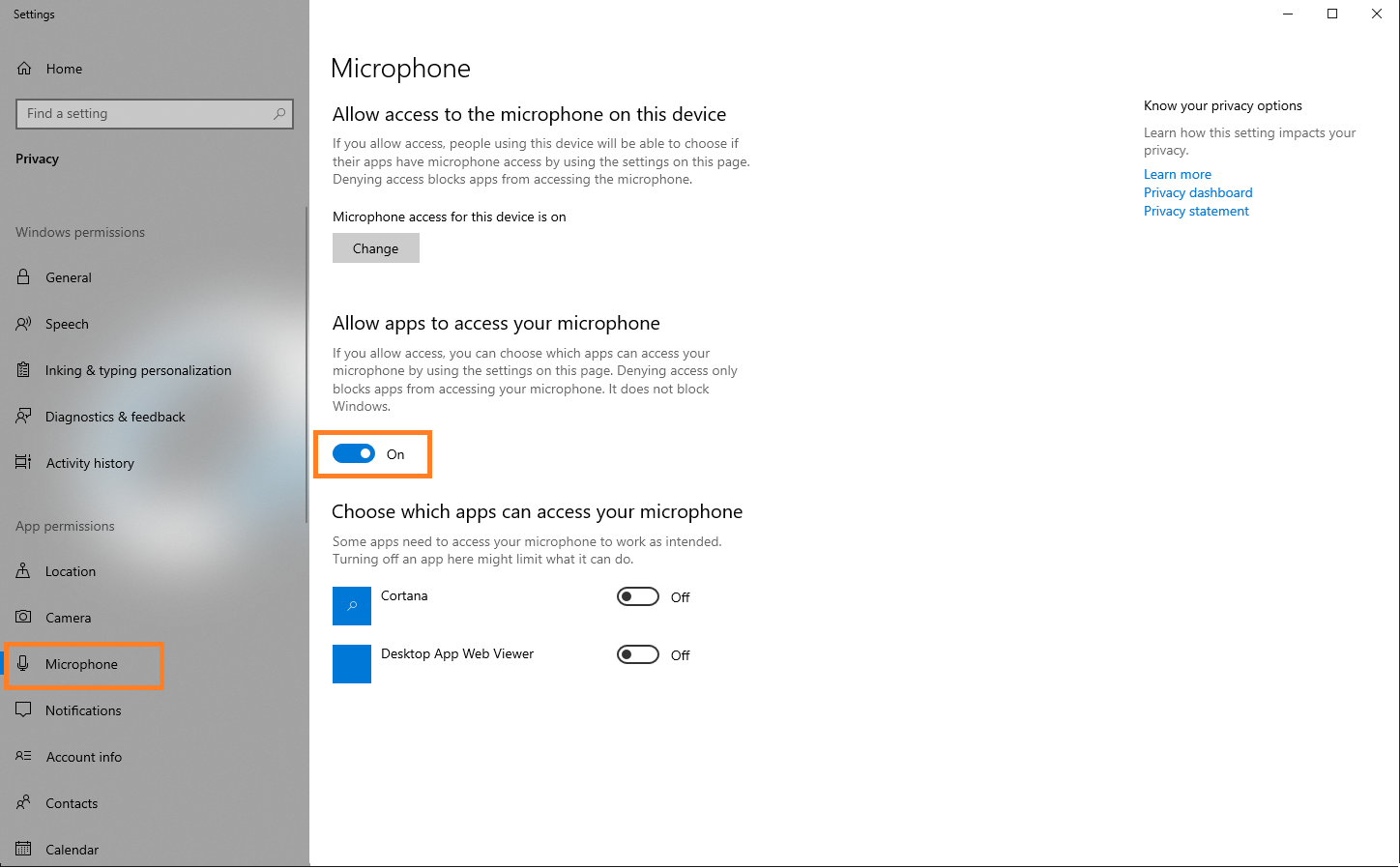

Select the Microphone privacy settings tag from the left-hand side. Within the Allow apps to access your microphone section, change from Off to On.

You will now need to configure your Server Manager settings. Open the Windows menu by selecting the Windows icon from the bottom-left corner, search server then select Server Manager.

Within the Server Manager settings, select the Local Server tab. Within the Properties, select Unknown next to IE Enhanced Security Configuration to configure Internet Explorer.

A configuration window will pop-up. Change the Administrators and Users option to Off. Then click OK to save and close.

Next, launch Windows Explorer from the Windows toolbar. Once launched. select the settings icon in the top-right corner to open Windows Explorer's settings, then click Internet options.

Select the Security tab, then drag the Allowed level to Medium (lowest level).

You have now completed configuration and setup of your Amazon AWS instance, and you can now install QuickLink StudioPro. For installation instructions, please refer to the Installing Cre8 on your own hardware Knowledge Base article.

If you would like the system to auto launch and add it to your Cloud Servers section under Management in the portal, follow the steps on this link.
