Overview of the StudioEdge user interface

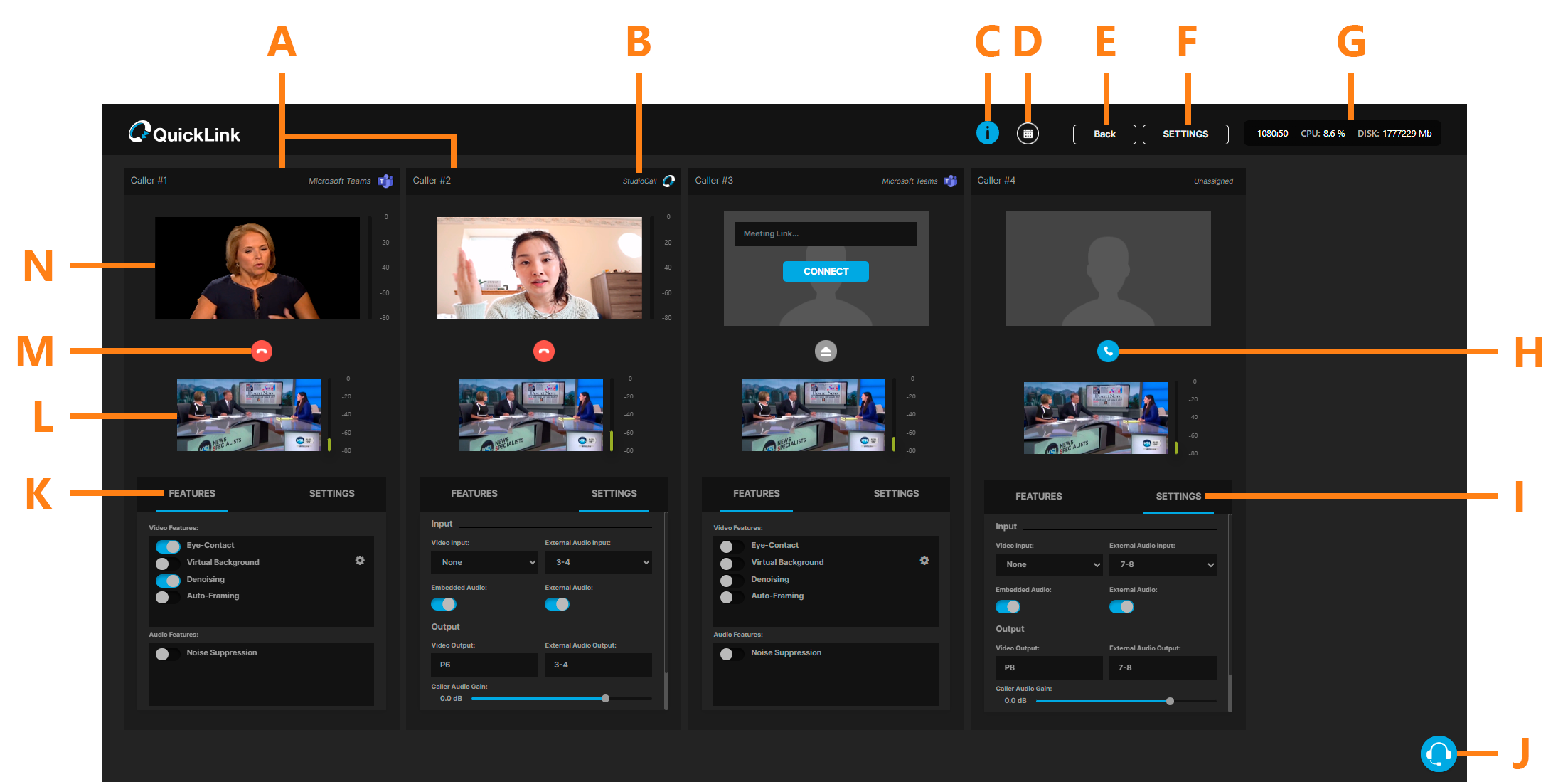

QuickLink StudioEdge has been designed with an easy-to-use, intuitive interface to ensure that the learning curve when adopting StudioEdge is seamless. This handy labelled image and subsequent key will briefly describe the core interface of StudioEdge:



Key for StudioEdge interface

  • A – Channels: channels for introducing remote guests.
  • B – Assigned Platform: video conferencing platform assigned to channel.
  • C – Dashboard: return to StudioEdge dashboard.
  • D – Project Settings: project and system settings.
  • E – Device Stats: statistics on resolution, frame rate, CPU usage and disk usage.
  • F – Call: assign channel to Zoom, Teams, Skype or StudioCall.
  • G – Channel Settings: configure inputs and outputs for channels.
  • H – Features: filters that can be applied to callers to improve video and audio quality.
  • I – Return Preview: preview of the configured return.
  • J – End Call: disconnect/end call.
  • K – Guest Preview: preview of the connected remote guest.
