Virtual Devices

The Virtual Devices feature allows you to enable your production program or any individual scene and make available as a webcam device for return into a video conferencing platform. An example of how, would be to return the production program, or a feed into a video conferencing call when using Zoom, Teams or any other platform to introduce contributions.

To configure your Virtual Cameras, open settings by selecting the mceclip0.png icon.

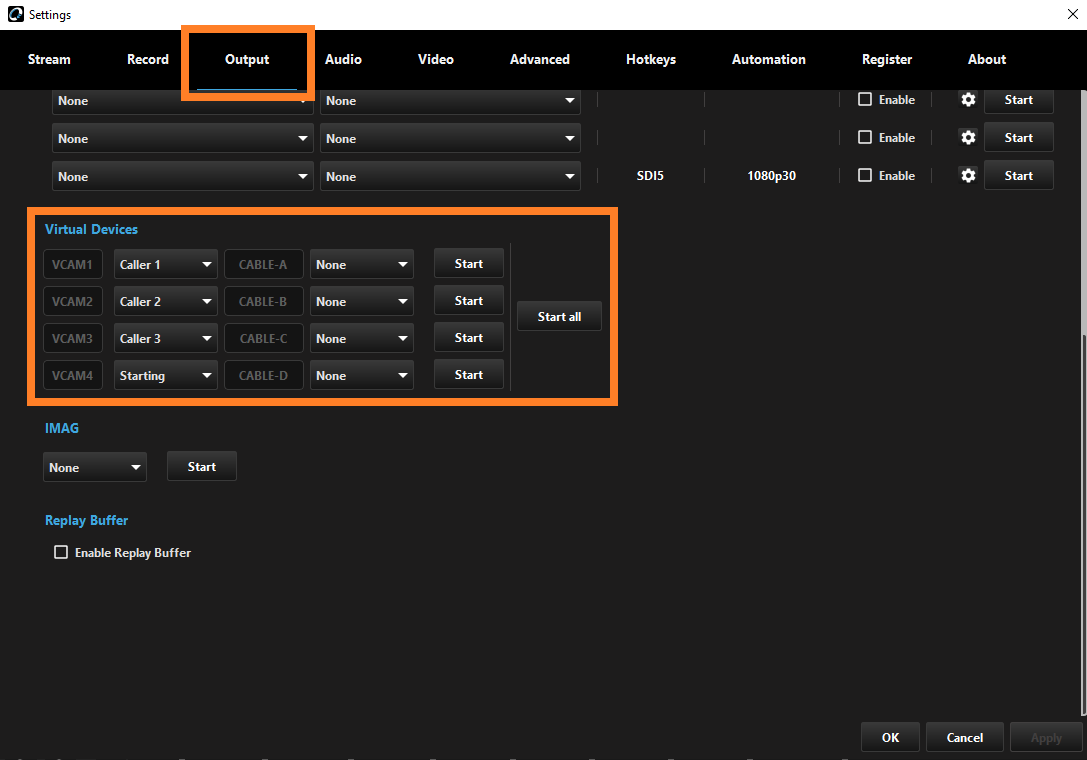

Then navigate to the Output tab and scroll down to the Virtual Devices section. From here you can configure up to 4 Virtual Devices individually or simultaneously.

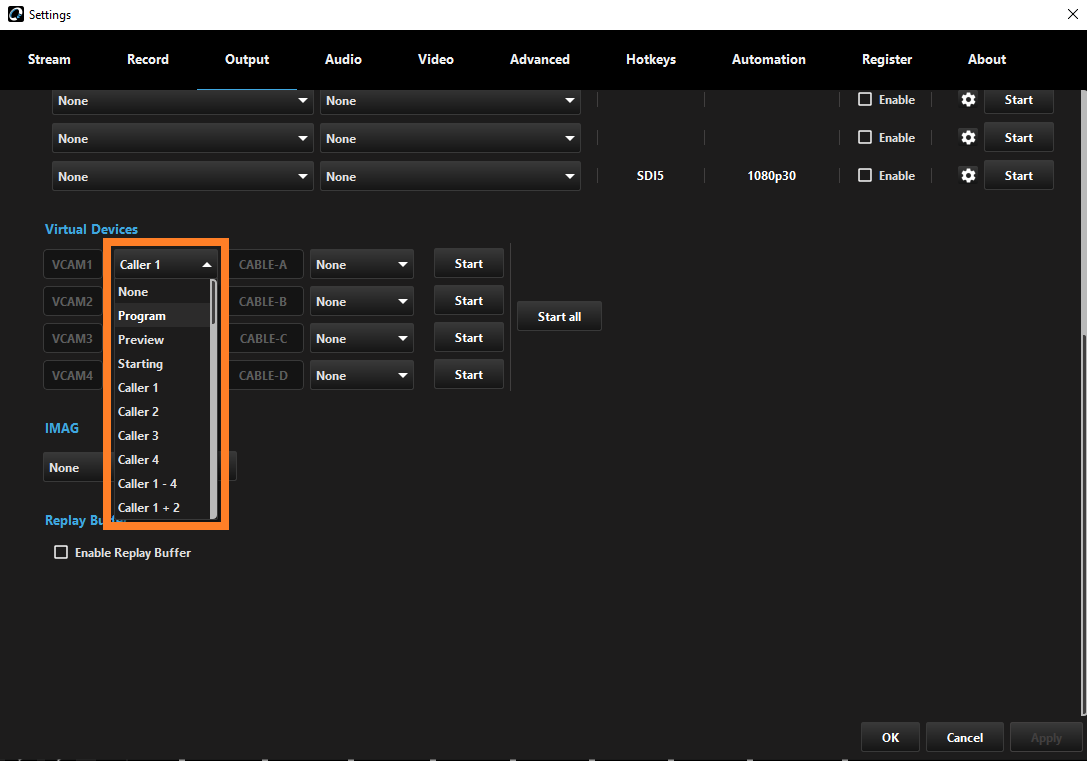

The first dropdown menu is for Video. You can select None, Program or an individual scene.

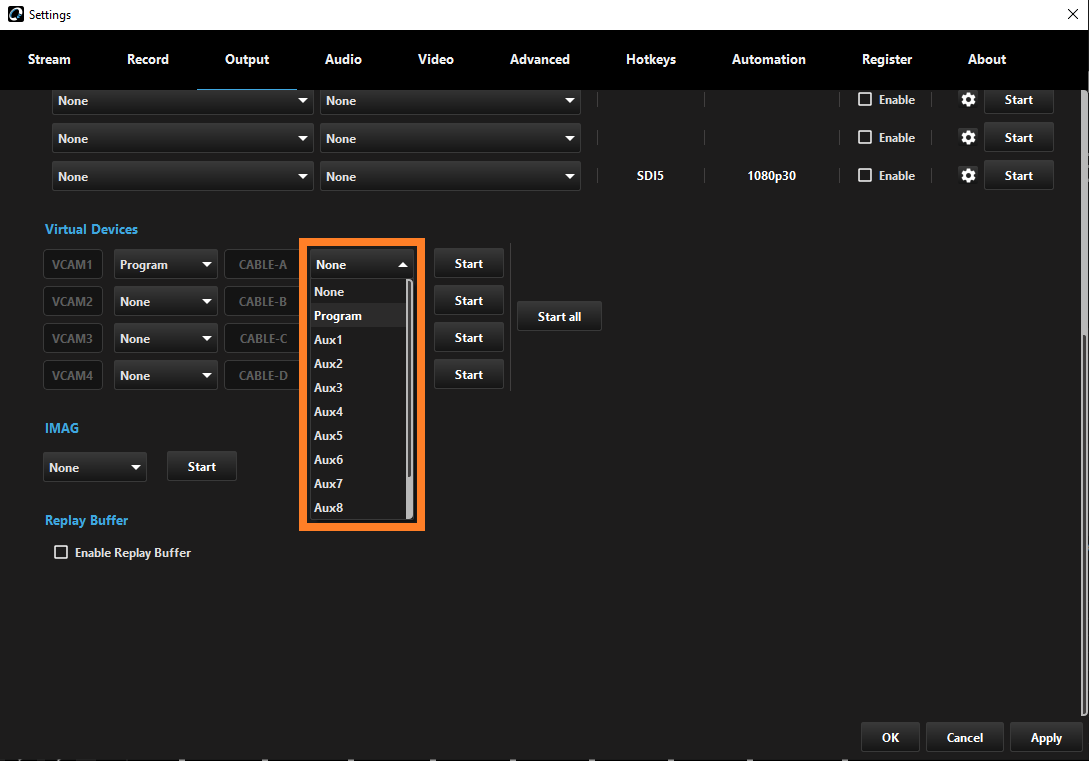

Next is the Audio also select None, Program or one of your Aux's. For more information on setting up an Aux, see here.

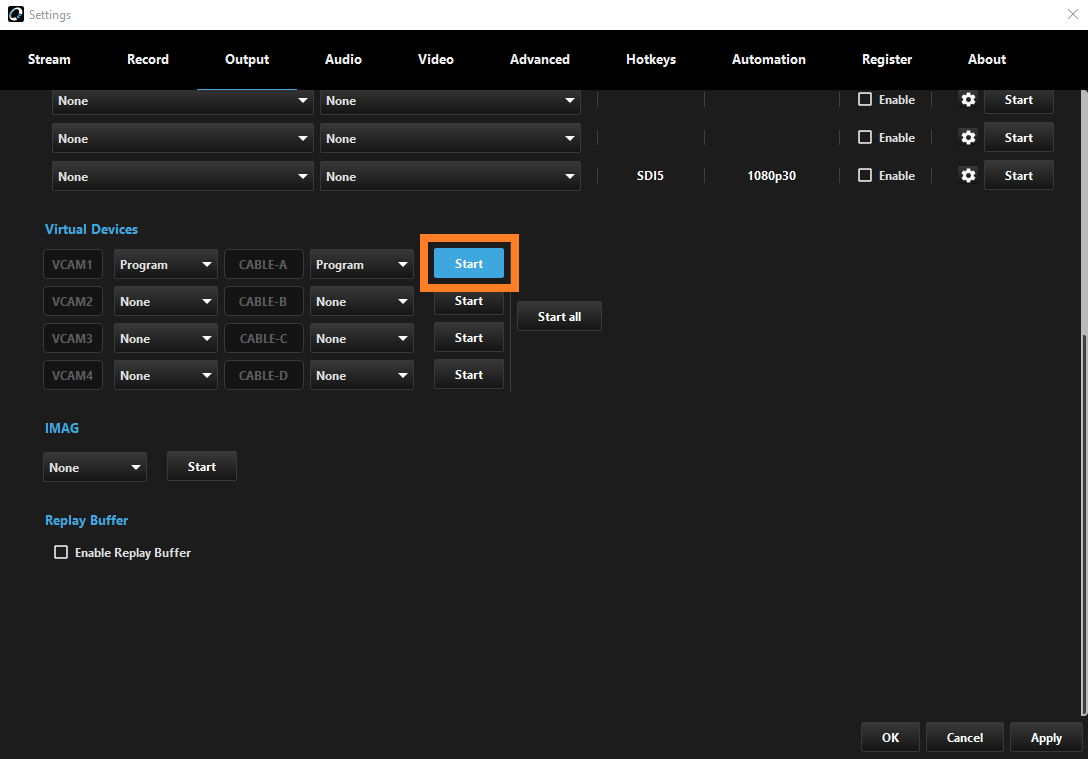

To start one Virtual Device, select the Start button next to VCAM1, 2, 3 or 4.

Individual start.png

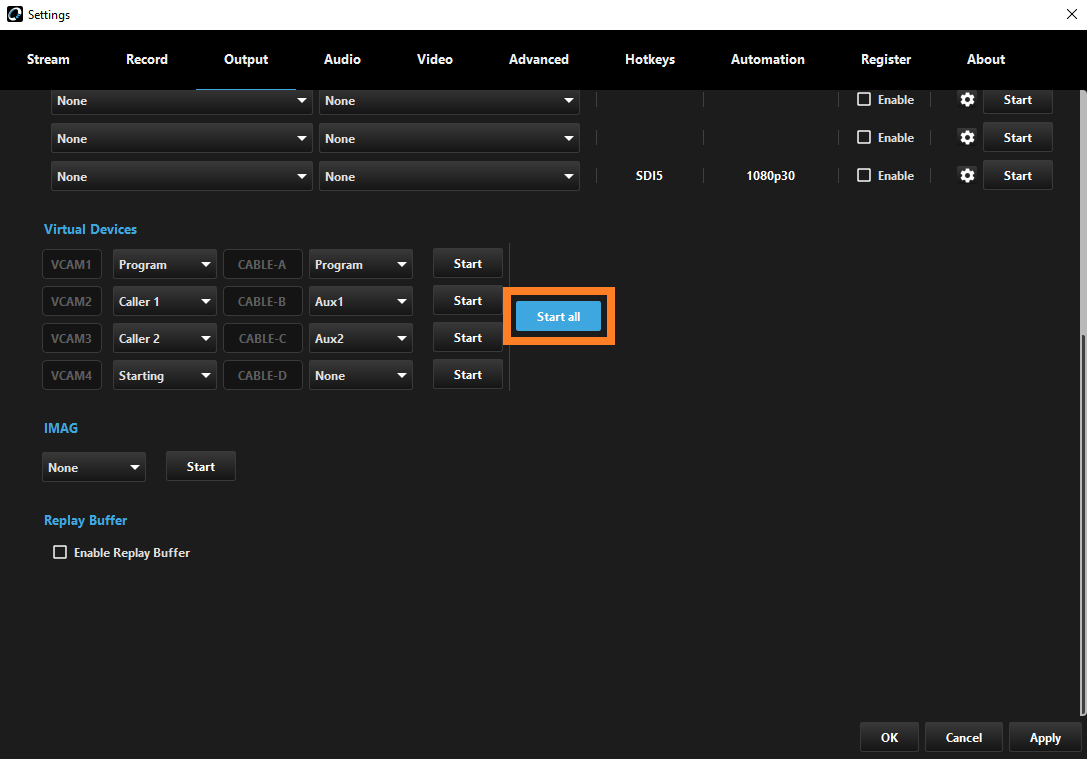

You can start all four at once if you need to.

Start all.png



Once the Virtual Camera is running, you can then select it as an input device within your chosen video conferencing platform. For example, you could select the StudioPro VCam_1 as your video device instead of your webcam when joining a call on Zoom.

Next open up Zoom. Then Start or Join a meeting.

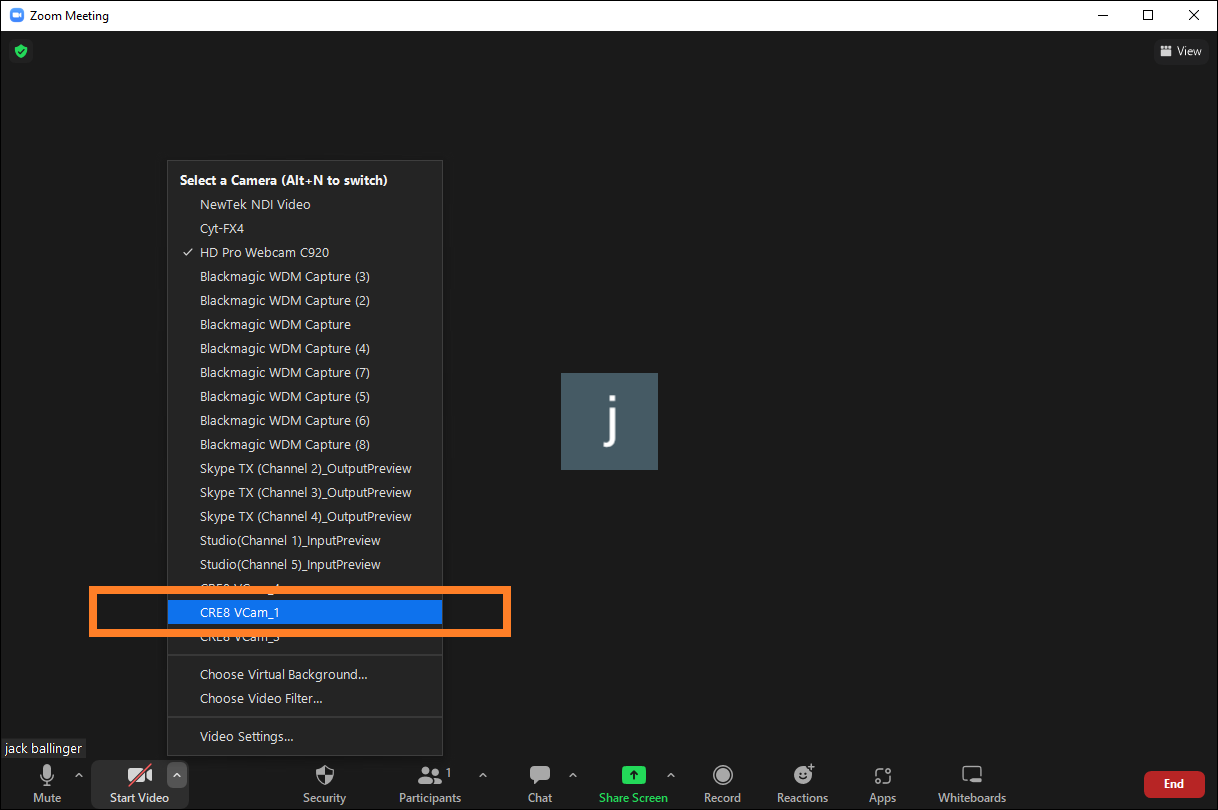

Click the arrow by camera icon to open up the menu. This will bring up all your video source options. From the list select StudioPro VCam_1.

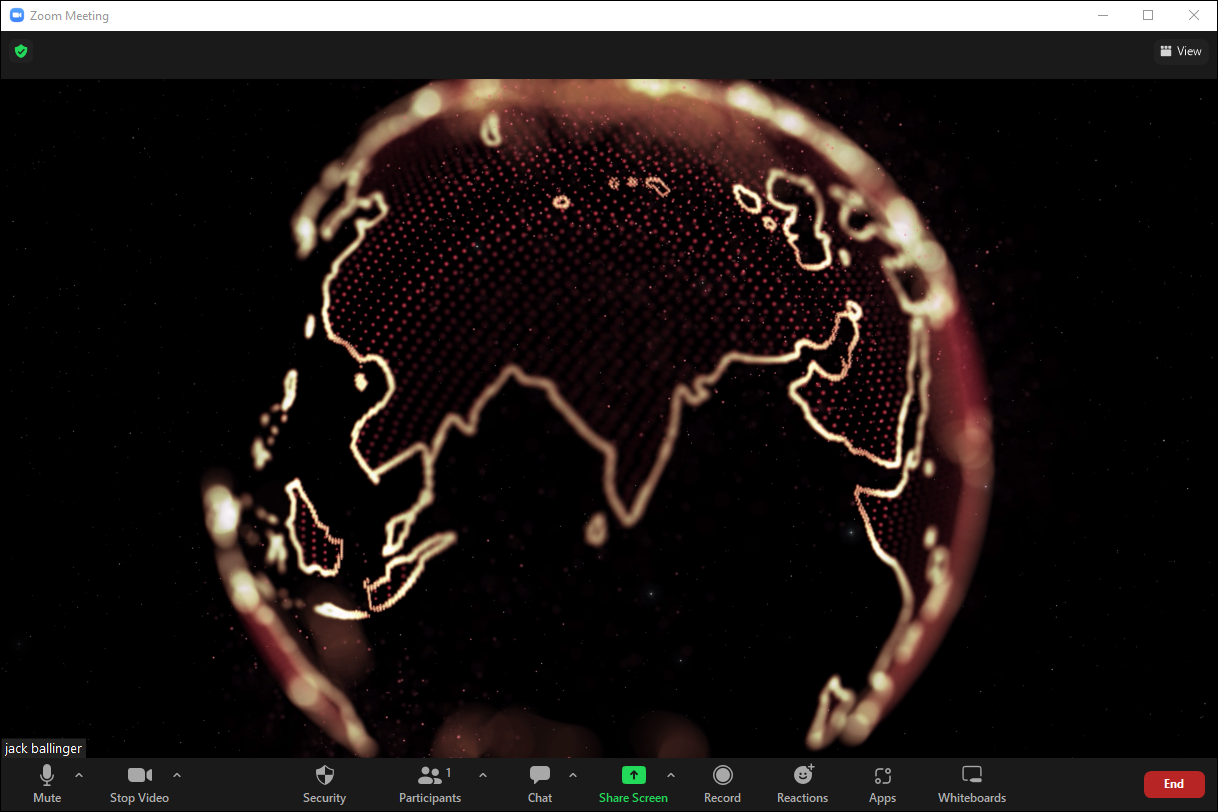

You'll now see that your video source is the Program feed from StudioPro. Don't worry that this is mirrored, it will appear the correct way around when viewed by any other user.

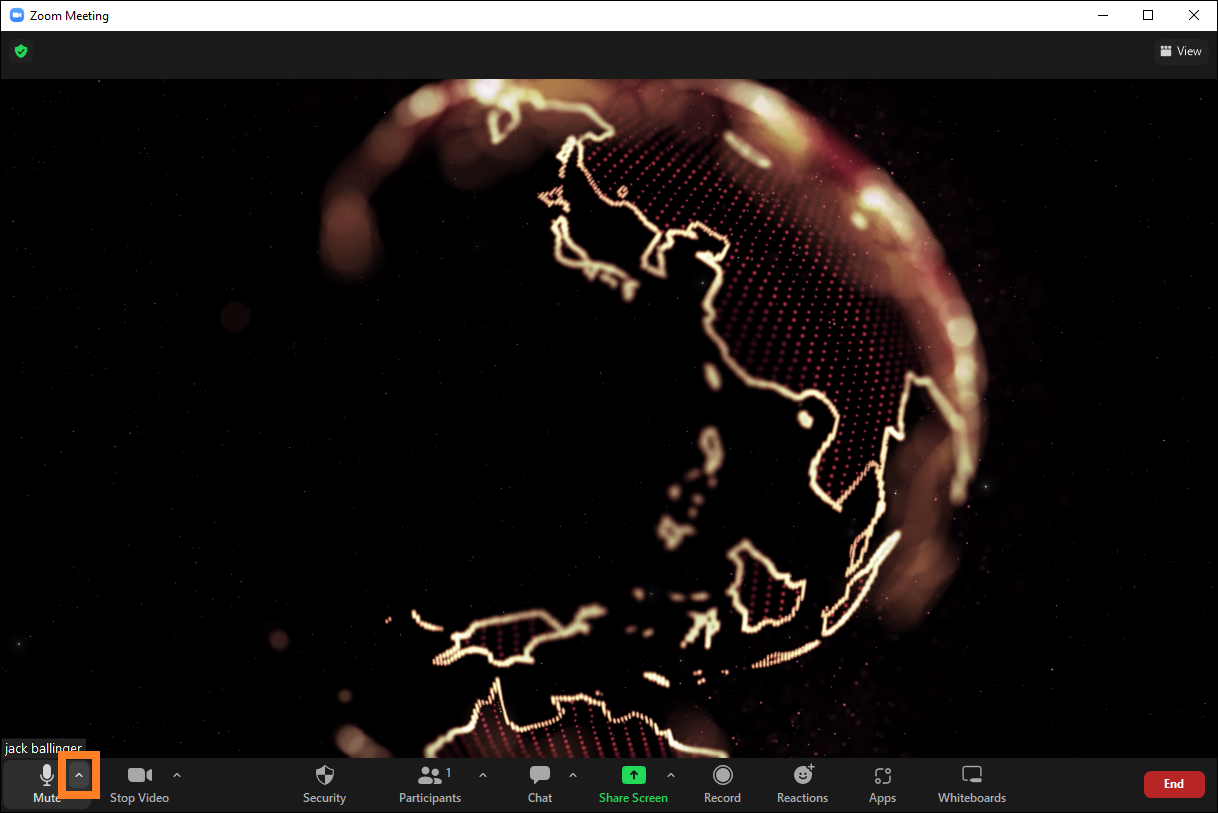

Now you also want the audio to come from StudioPro too. To do this, open up the audio settings by clicking on the arrow by the microphone icon.

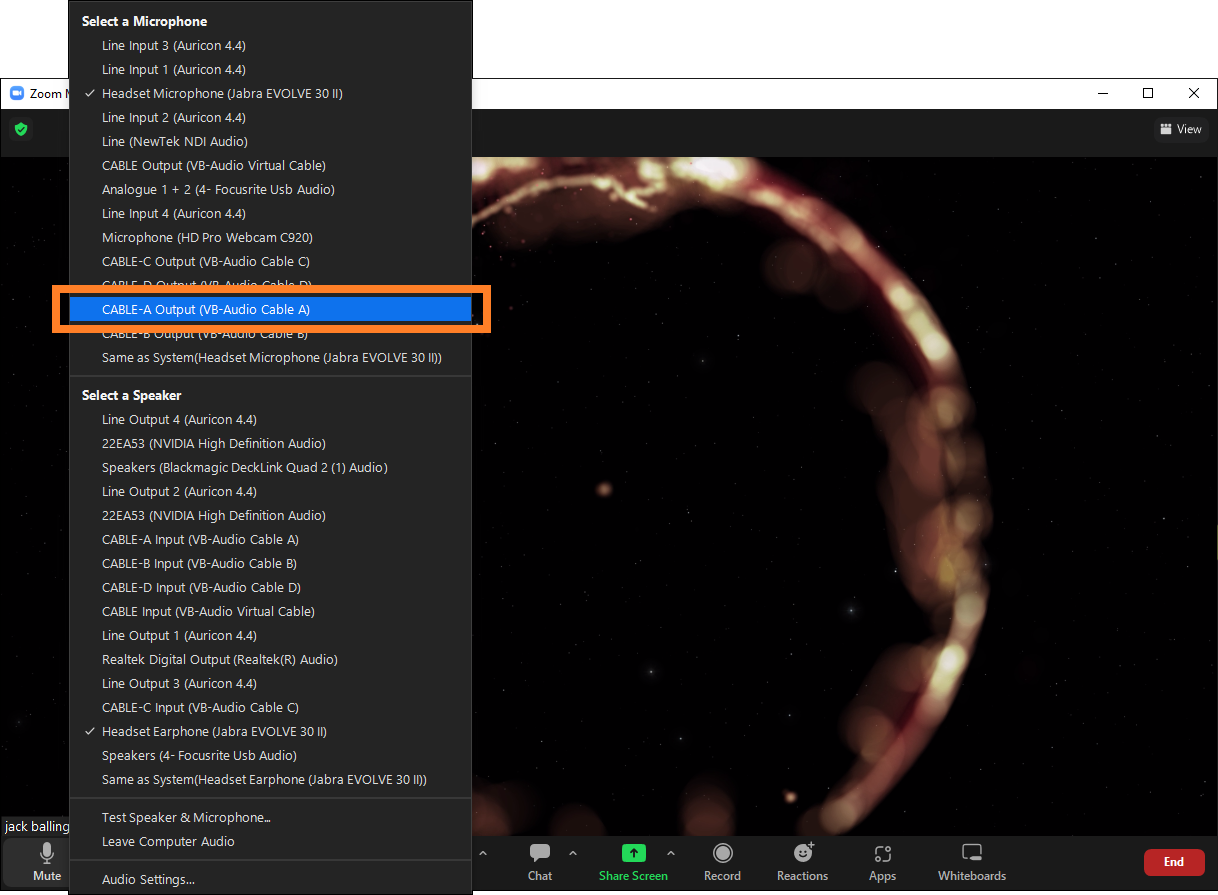

From the Select a Microphone section, choose the corresponding Virtual Cable you set as your Aux output before. In this case Virtual Cable A.


You will now be showing the other members of your Zoom call the Program Output of StudioPro via Virtual Device and a pre configured Aux bus via a Virtual cable.

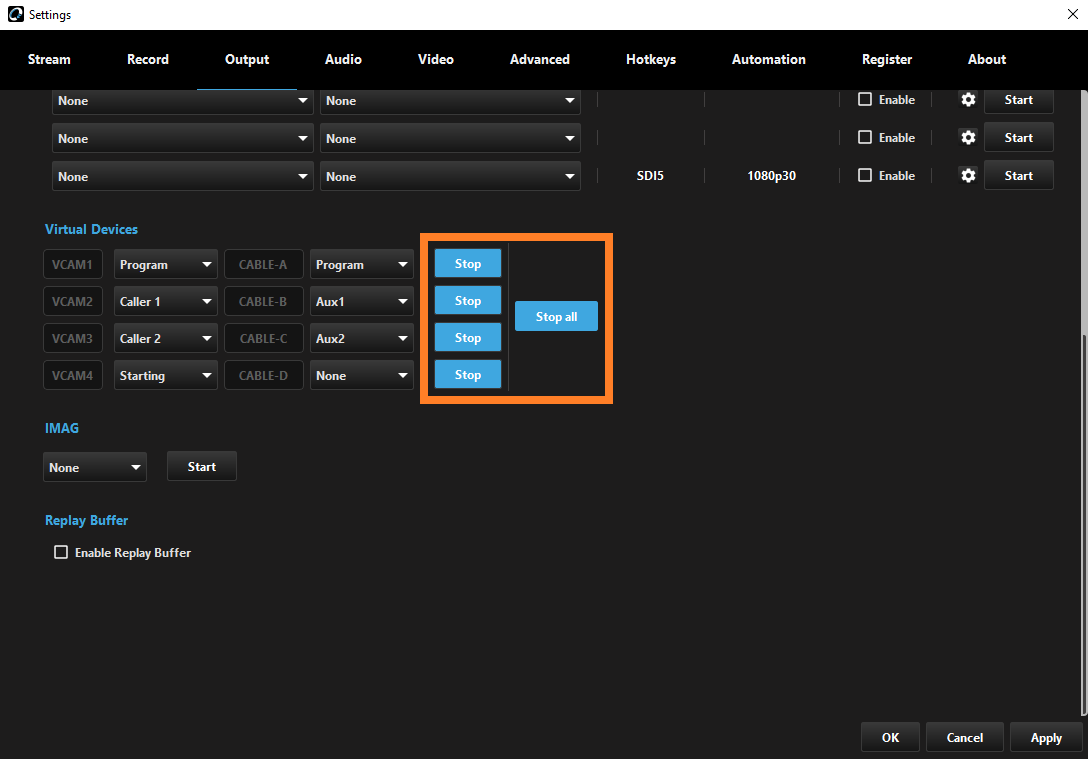

To stop one or all devices, head back to StudioPro and click Stop all.
