Monitor (Scopes) Options

When producing high-quality video content in QuickLink StudioPro, achieving accurate exposure, focus, and color balance is crucial, especially in professional live streams, broadcasts, or recordings. While StudioPro provides powerful core functionality, advanced video monitoring tools like Zebra, Waveform, Histogram, Focus Peaking, False Color, and Vectorscope give producers the precision needed to fine-tune their visuals.

These tools act as real-time overlays or diagnostic scopes to help you monitor:

• Exposure levels

• Focus accuracy

• Color balance and saturation

This article breaks down each of these tools, explaining what they do, why they're useful, and how you can implement them in your StudioPro workflow to elevate your production quality.

Summary of Monitoring Tools:

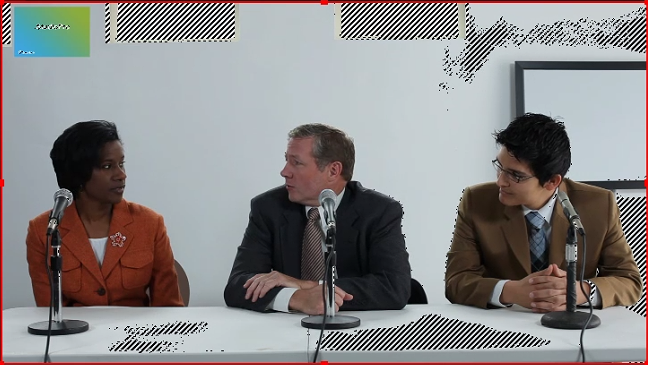

Zebra

In QuickLink StudioPro, the "Zebra" source option is used as a diagnostic overlay tool to help identify areas of overexposure in your video feed. Similar to how professional cameras use zebra stripes.

What it does:

• Displays striped patterns (typically diagonal lines) over areas of the image that exceed a certain brightness threshold.
• These areas are likely to be clipped highlights (i.e., parts of the image that are too bright and have lost detail).

Use case:

• Useful when calibrating cameras or lighting setups.
• Helps producers and operators avoid overexposed spots in their scene (especially important for live video work like interviews or live broadcasts).

Configuration:

• You can adjust the brightness threshold at which the zebra pattern appears (e.g., 90% IRE or brightness level).
• The stripes are non-destructive and only visible to the operator, not the stream or recording (unless you choose to include them).

Waveform

The Waveform option in QuickLink StudioPro is a video analysis tool that visualizes the luma (brightness) and sometimes RGB color values across the frame. It's commonly used in professional video production for exposure and color grading.

What the Waveform Source Does:

Displays a graph showing the brightness or color values of pixels across the image.

Horizontally: Corresponds to horizontal position in the frame.

Vertically: Shows brightness or RGB values, from 0 (black) at the bottom to 100 (white) or full RGB at the top.

Use Cases:

Exposure Monitoring: Helps you see whether your highlights are clipping (values reaching the top of the graph) or if shadows are crushed (values at the bottom).

Color Balancing: With RGB waveforms, you can spot color shifts or tints (e.g., too much red in highlights).

Precision Camera Setup: Useful when lighting scenes for live broadcasts or recordings.

Typical Features (Depending on Plugin):

Luma only or RGB Parade options.

Adjustable intensity and transparency.

Histogram

A histogram shows the distribution of brightness or color values in an image. It's a bar graph that tells you how many pixels fall into each brightness or color level, from black (0) to white (255).

Use Cases:

• Exposure Check: Quickly see if your image is underexposed (all data on the left), overexposed (all data on the right), or well-balanced.
• Highlight & Shadow Clipping: Helps identify areas where you're losing detail.
• Color Distribution: With RGB histograms, you can see if your image has color casts or imbalances.

 How to Read It:

• X-axis: Represents brightness or RGB values (from black on the left to white on the right).
• Y-axis: Number of pixels at each value.
• RGB Histogram: Shows separate graphs for Red, Green, and Blue channels.
• Luma Histogram: Shows brightness/luminance only.

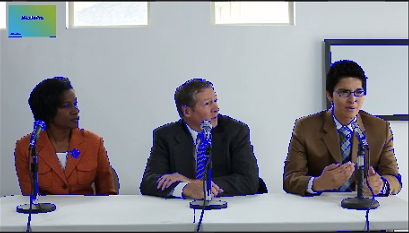

Focus Peaking

Focus Peaking in StudioPro is a tool that highlights the sharpest, most in-focus areas of your video feed—helping you visually confirm whether your camera is correctly focused.

What Focus Peaking Does:

• Outlines in-focus edges in bright colors (usually green, red, or blue).
• Helps you quickly spot what parts of your frame are sharp vs. blurry.
• Similar to focus peaking on DSLR/mirrorless cameras.

Use Cases:

• Manual focus confirmation: When you're using a DSLR, mirrorless, or webcam with manual focus.
• Multi-camera setup: Ensures all cameras are correctly focused during setup.
• Streaming or recording: Ensures subjects (like your face) are in focus before going live.

How It Works (Technically):

Focus peaking uses edge detection (like a Sobel filter) to highlight areas of high local contrast — typically where the image is sharpest.

Customization:

• Change the peaking color (e.g., green, red, cyan).
• Adjust intensity or edge threshold.
• Enable/disable dynamically or on hotkey.

*Tip:

• Use it during setup, not during broadcast — it’s meant as a monitoring aid and may be distracting for viewers unless toggled off.

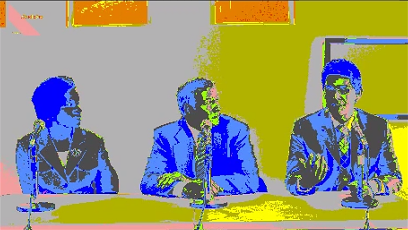

False Color

False Color in StudioPro is a powerful exposure monitoring tool that assigns specific colors to different brightness (luma) levels in your video, making it easy to see at a glance whether your subject is properly exposed, even if your monitor isn’t accurately calibrated.

What False Color Does:

• Converts brightness levels into color overlays.
• For example:
  • Green might represent proper skin tone exposure (~40–70% IRE).
  • Red might indicate overexposure (~100% IRE or higher).
  • Blue or purple might show underexposure (~0–20% IRE).
• It's similar to what you’d see on monitors like Atomos or SmallHD, commonly used in professional video production.

Why Use It:

Features You Might Find:

• Choose from different false color LUT styles (Arri, RED, SmallHD, etc.).
• Adjust thresholds for each color band.
• Toggle on/off via hotkey or preview-only (so it’s not seen in the final stream or recording).

Vectorscope

The Vectorscope in StudioPro is a color analysis tool used to visualize the hue and saturation of your video. It's especially useful for tasks like color correction, white balance, and skin tone monitoring.

What a Vectorscope Does:

Plots chroma (color) information from your video onto a circular graph.

Center = no saturation (gray)

Outer edges = higher saturation

Different angles represent different hues (e.g., red, green, blue, magenta, cyan, yellow).

Why Use a Vectorscope:

How to Read It:
