Adding Viz Flowics graphics into scenes

Vizrt's Viz Flowics allows you to add professional, intelligent live overlays within your scenes. To learn more about Viz Flowics, visit the Flowics website.

To integrate your Viz Flowics graphics to StudioPro you will need to firstly obtain your output URL. To do this, log into your Flowics dashboard and then select your chosen Flowics graphics. Once open, select Open Output.

Open Output URL.png

Copy the URL

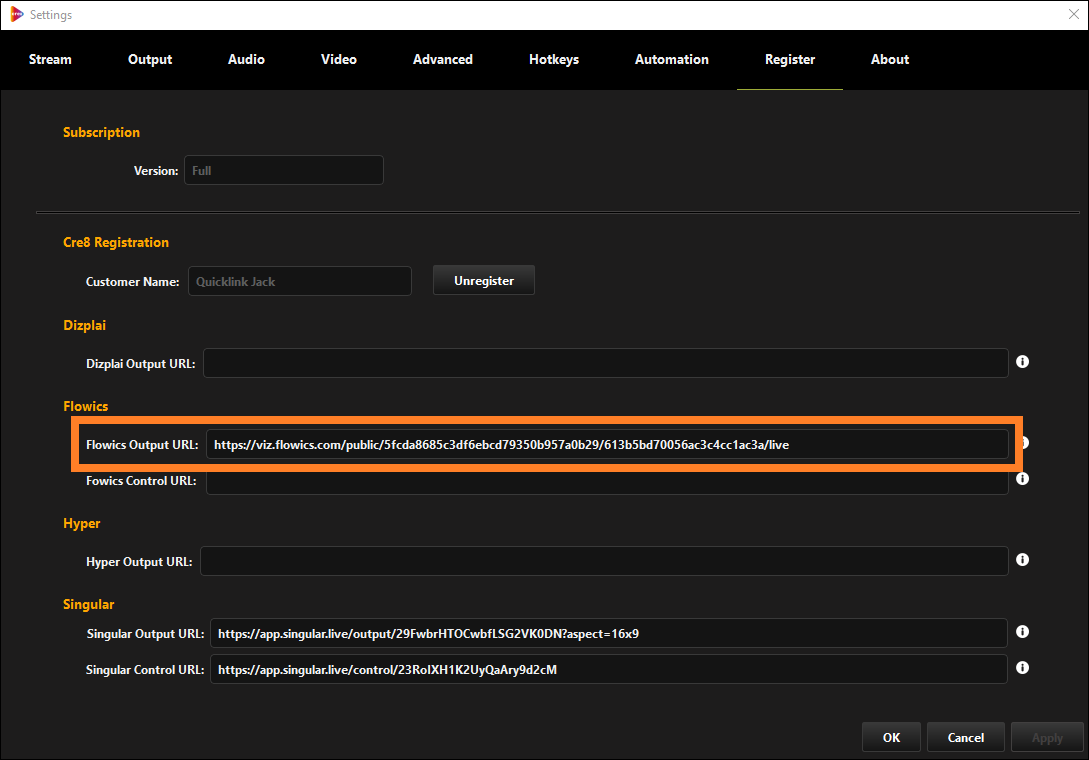

Once you have copied the Flowics Output URL you will need to configure this within StudioPro. Open the StudioPro settings, then navigate to the Register tab. Within Flowics Output URL, paste the Flowics URL copied previously, then click Apply and OK.


Now you are ready to add Flowics into your Scenes. Select your chosen Scene, select the plus.png icon to add a source, then select Flowics.


Your graphics will now appear as part of your scene. To add your graphics to multiple scenes, simply repeat these steps for all scenes you wish to add your Flowics graphics. Your Viz Flowics graphics can now be controlled from your Flowics dashboard, or using the Viz Flowics Control Dock.


Adding the Viz Flowics Control Dock

It is also possible to control your Viz Flowics graphics natively within QuickLink StudioPro using a Control Dock.

To achieve this, you will need to obtain your Remote URL. From your project page in Flowics, click Open Remote to open the control URL page.

Once open, copy the URL.

Returning to QuickLink StudioPro, open your Settings, select the Register tab and locate Flowics. Paste the Remote URL copied into the Flowics Control URL option. Click Apply.

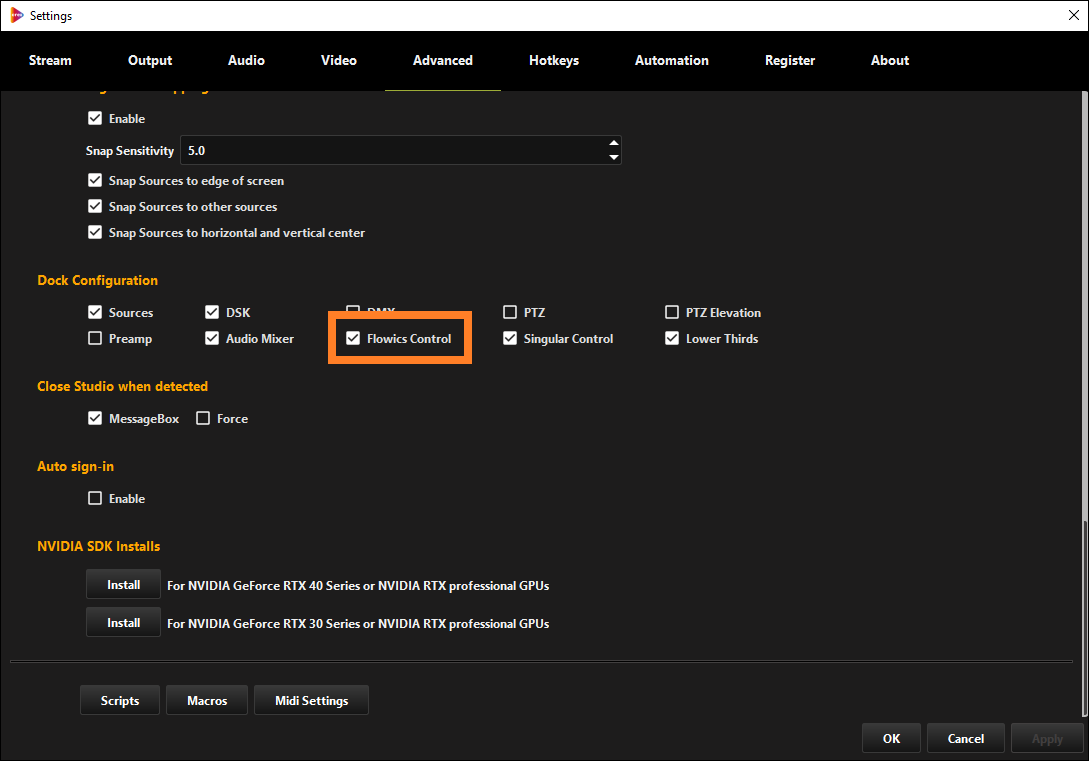

You will also need to enable the Flowics Control Dock. Navigate to the Advanced tab and scroll to Dock Configuration. Enable Flowics Control, then click Apply.


From your QuickLink StudioPro user interface you will now see the Flowics Control option.
