Adding overlays into scenes

Singular lets you create and control custom overlays within your scenes. To learn more about Singular, visit the Singular website.

To add your Singular overlays to StudioPro you will need to generate a Singular Output URL. To do this, log into your Singular dashboard and double-click on the app you would like to link. Once you are redirected to your app, click the Copy button located at the top right of your window.

Copy Output URL.png

Once you have copied the Singular Output URL you will need to configure this within StudioPro. Open the StudioPro settings, then navigate to the Register tab. Within Singular Output URL, paste the Singular URL copied previously, then click Apply and OK.

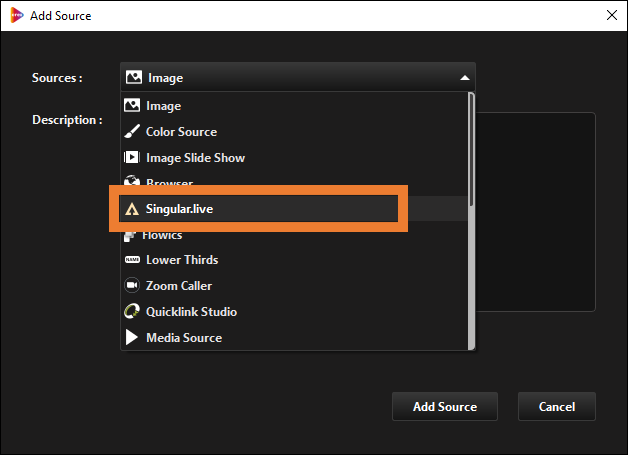

Now you are ready to add Singular into your scenes. Select your chosen scene, select the plus.png icon to add a source, then add the source.


Your graphics will now appear as part of your scene. To add your graphics to multiple scenes, simply repeat this step for all scenes you wish to add your Singular graphics. Your Singular graphics can now be controlled from your Singular dashboard, or using the Singular Control Dock.

Please note, to remove the Singular watermark you will require a Pro or Enterprise license.


Adding the Singular Control Dock

It is also possible to control your Singular graphics natively within QuickLink StudioPro using a Control Dock.

To achieve this, you will need to obtain your Control URL. From your project in Singular, click Copy Control URK in the top-right corner.

Copy control URL.png

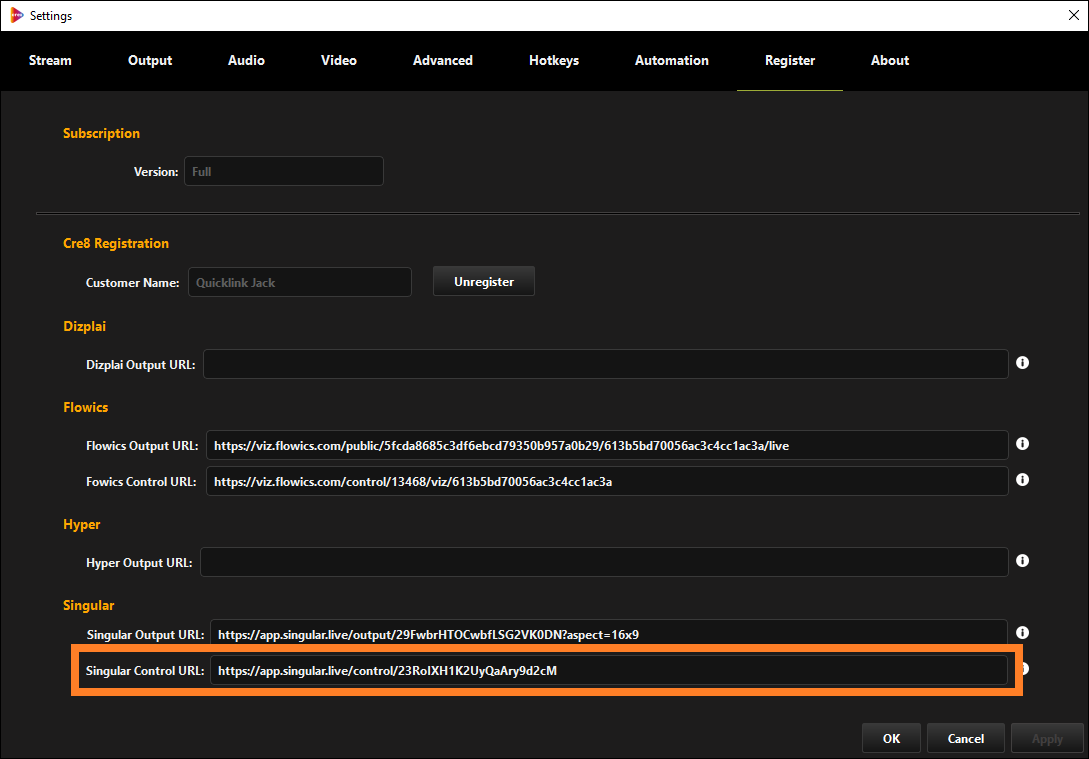

Returning to QuickLink StudioPro, open your Settings, select the Register tab and locate Singular. Paste the Remote URL copied into the Singular Control URL option. Click Apply.

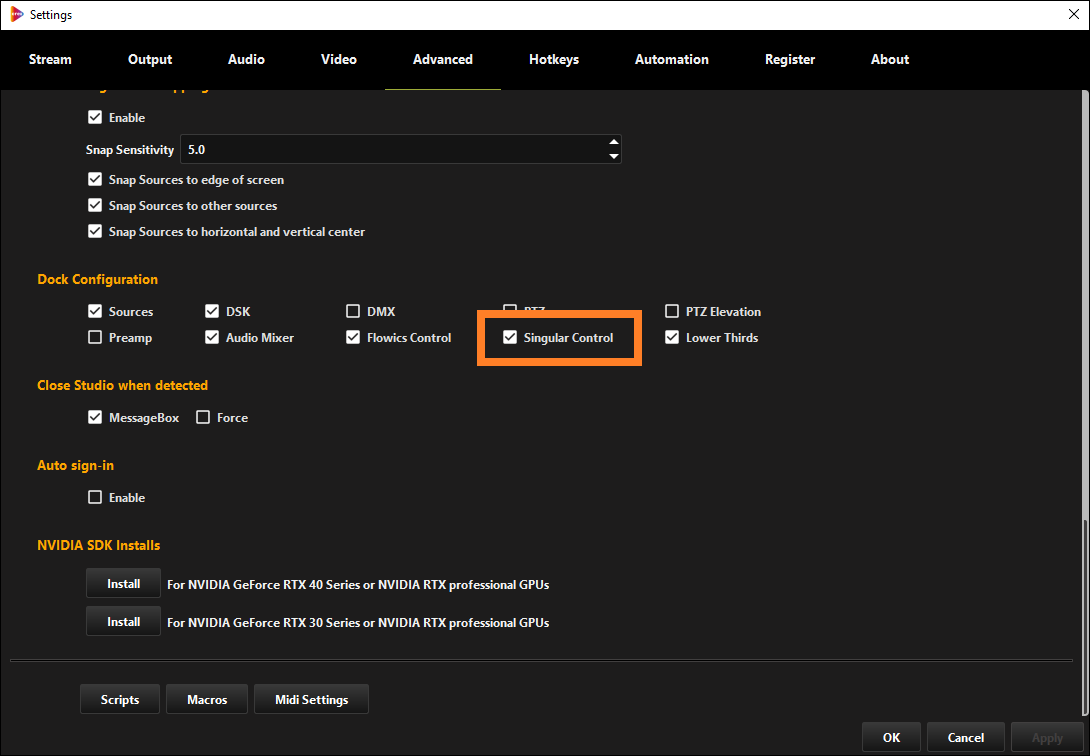

You will also need to enable the Singular Control Dock. Navigate to the Advanced tab and scroll to Dock Configuration. Enable Singular Control, then click Apply.


From your QuickLink StudioPro user interface you will now see the Singular Control option.
