Adding an SRT input source

Using StudioPro you can very quickly and easily bring in an SRT (Secure Reliable Transport) input source to your production.

Before you start to receive an SRT signal, you'll need to set up your router for Port Forwarding to open up the ports you wish to send to. This will be different for each router but more information can be found by searching online. The basics are, you need to sign in to your router and in the advanced firewall settings, set the ports you wish to use as rules.

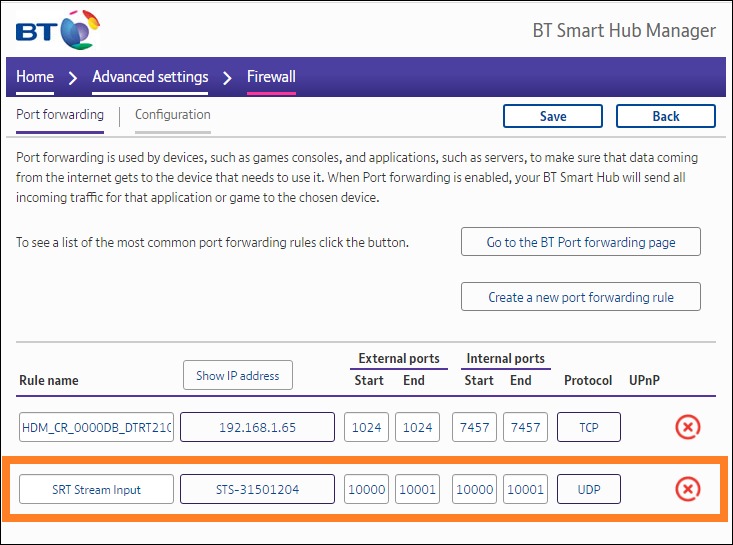

For example, here's how this is achieved using BT Smart Hub Manager:




Adding an SRT input

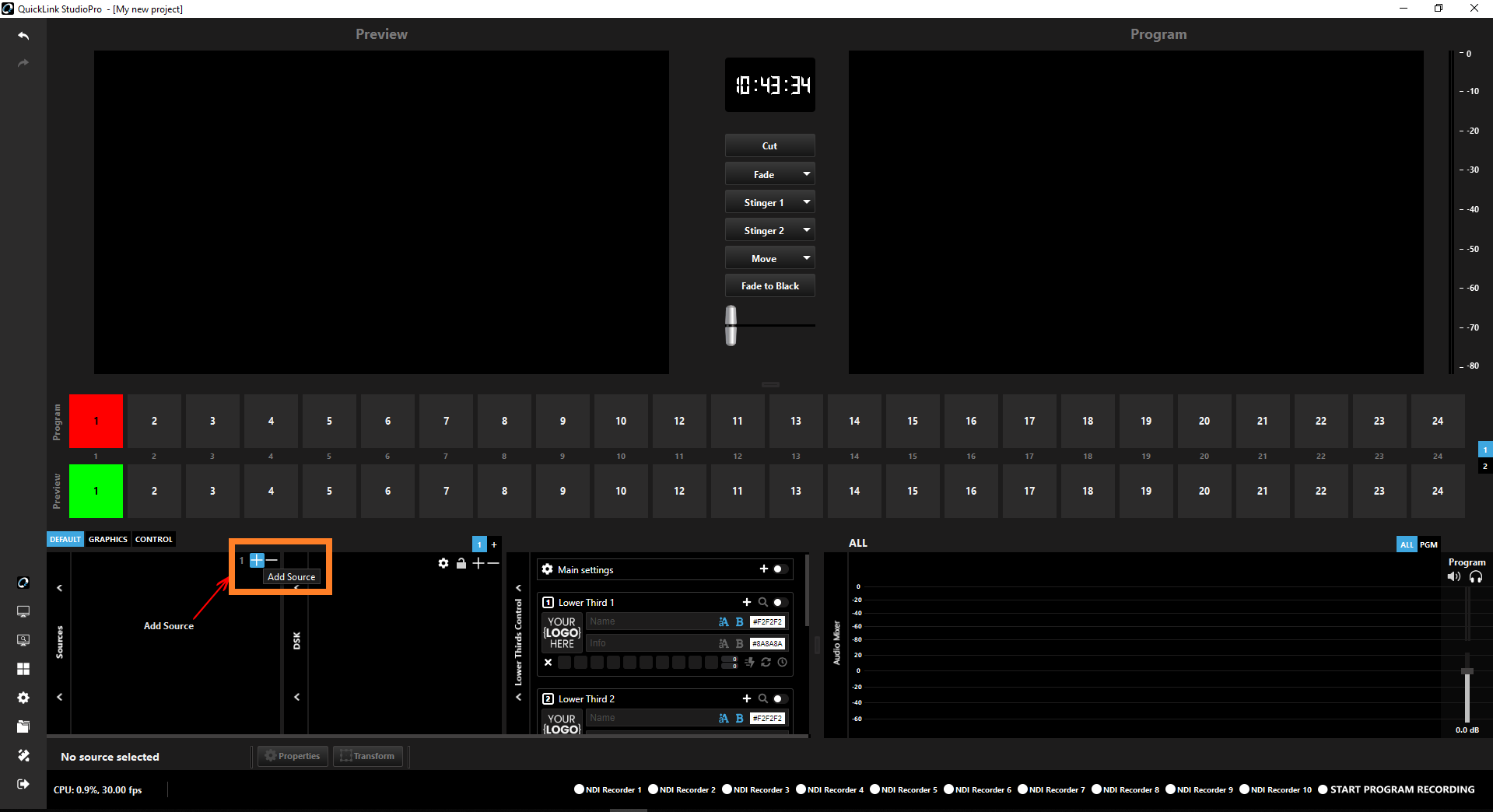

To add an SRT source, select the scene you would like to add your SRT source to, then click the plus.png icon within the Sources window.

Add source.png

Within the Sources dropdown menu, locate and select SRT Source.

SRT source.png

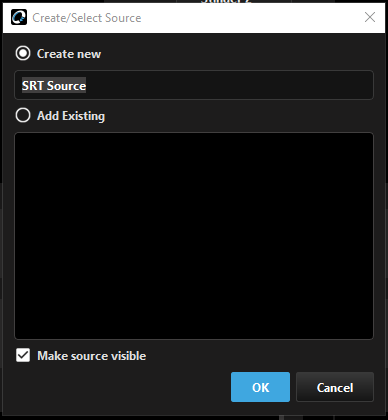

When prompted to create a new or add existing, select Create new. Enter a friendly name for your SRT source (i.e SRT Source), then click OK.

Friendly name.png

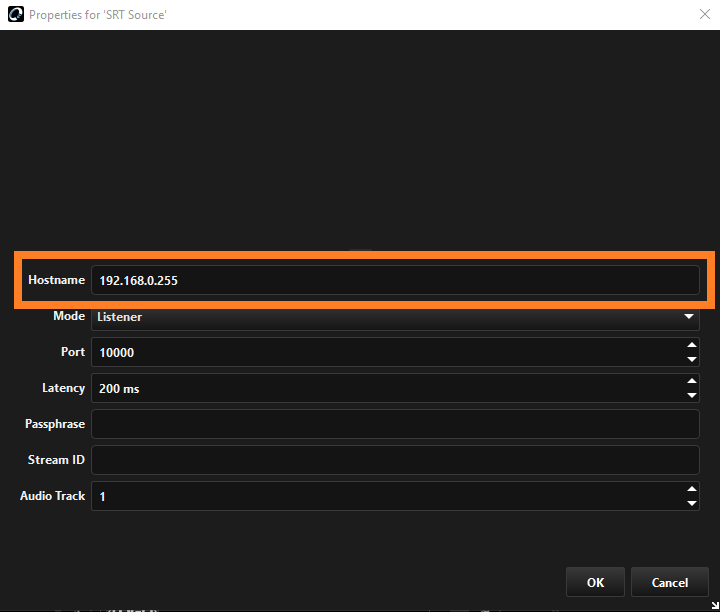

Within the Properties window, enter the Hostname. This is your Internal IP Address.

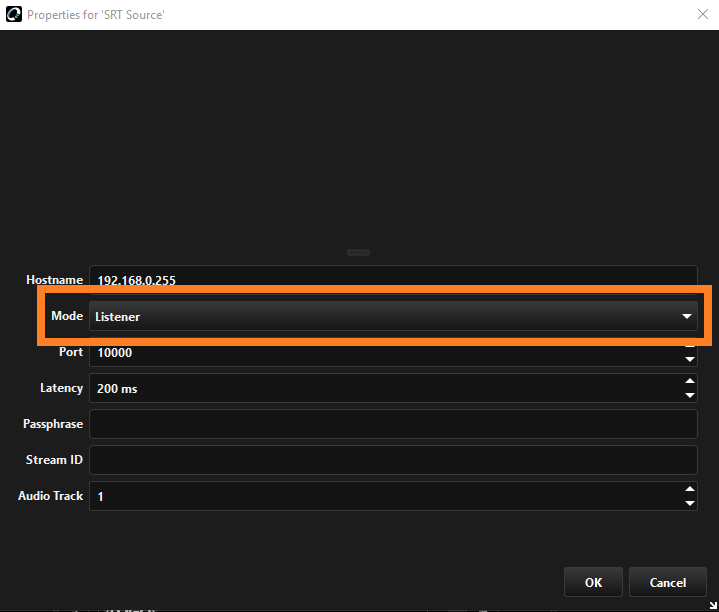

Set the Mode to Listener or Caller.


Caller and Listener modes don’t have anything to do with who is sending or receiving the stream; it is merely who initiates the initial connection.
In Listener mode, SRT will wait to receive a connection from another SRT process. In Caller mode, SRT will attempt initiate the connection. This connection comes in the form of the SRT handshake.

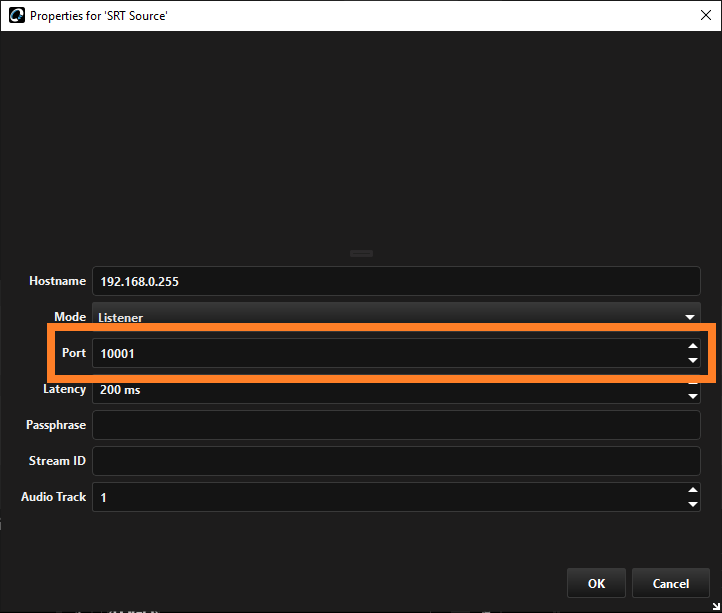

Enter the same port as you set on the streaming side.

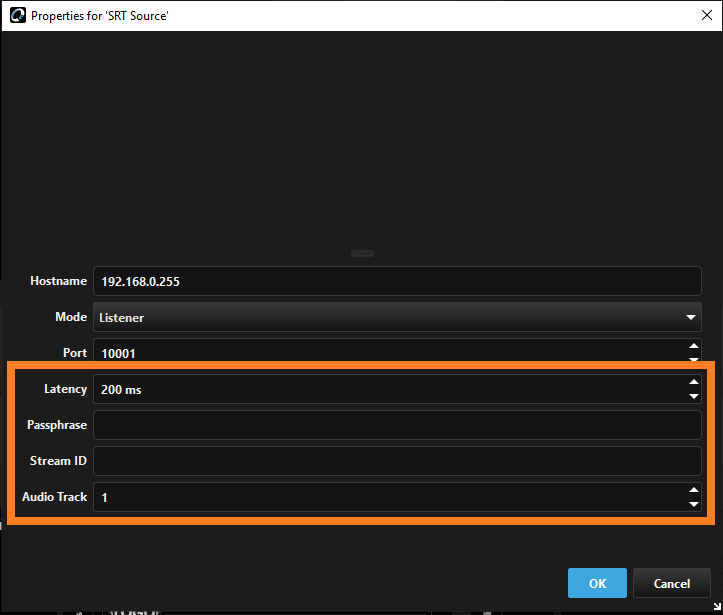

Enter the other settings to match the other end.  Once you've done that. Click OK.

Other settings.png

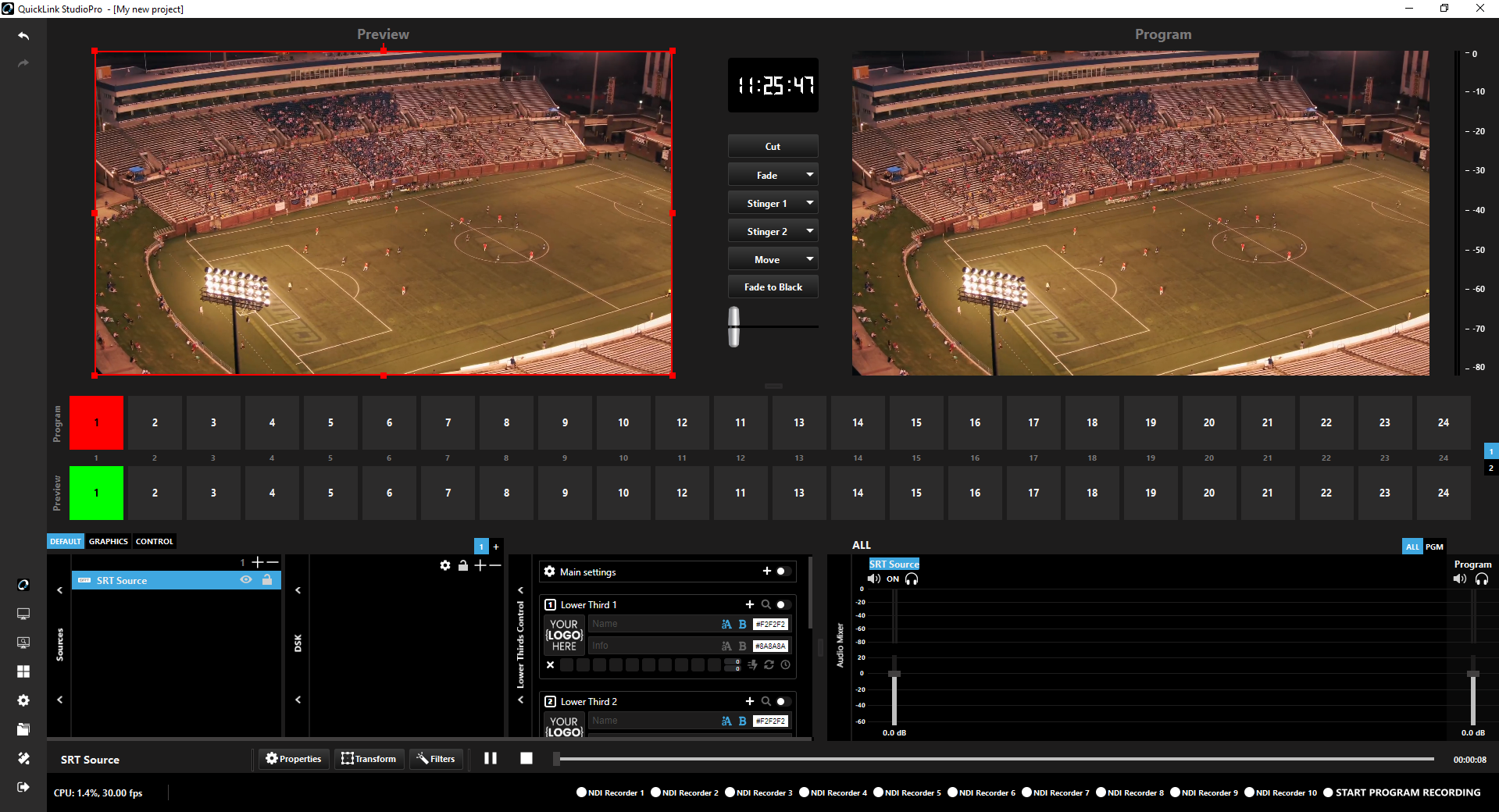

You have now successfully brought in an SRT source to your StudioPro production.
