Streaming to Switchboard Live

With Quicklink Cre8, you can very easily stream your productions to Switchboard Live, a powerful live stream management platform. You can find more information about Switchboard Live on the Switchboard Live website.

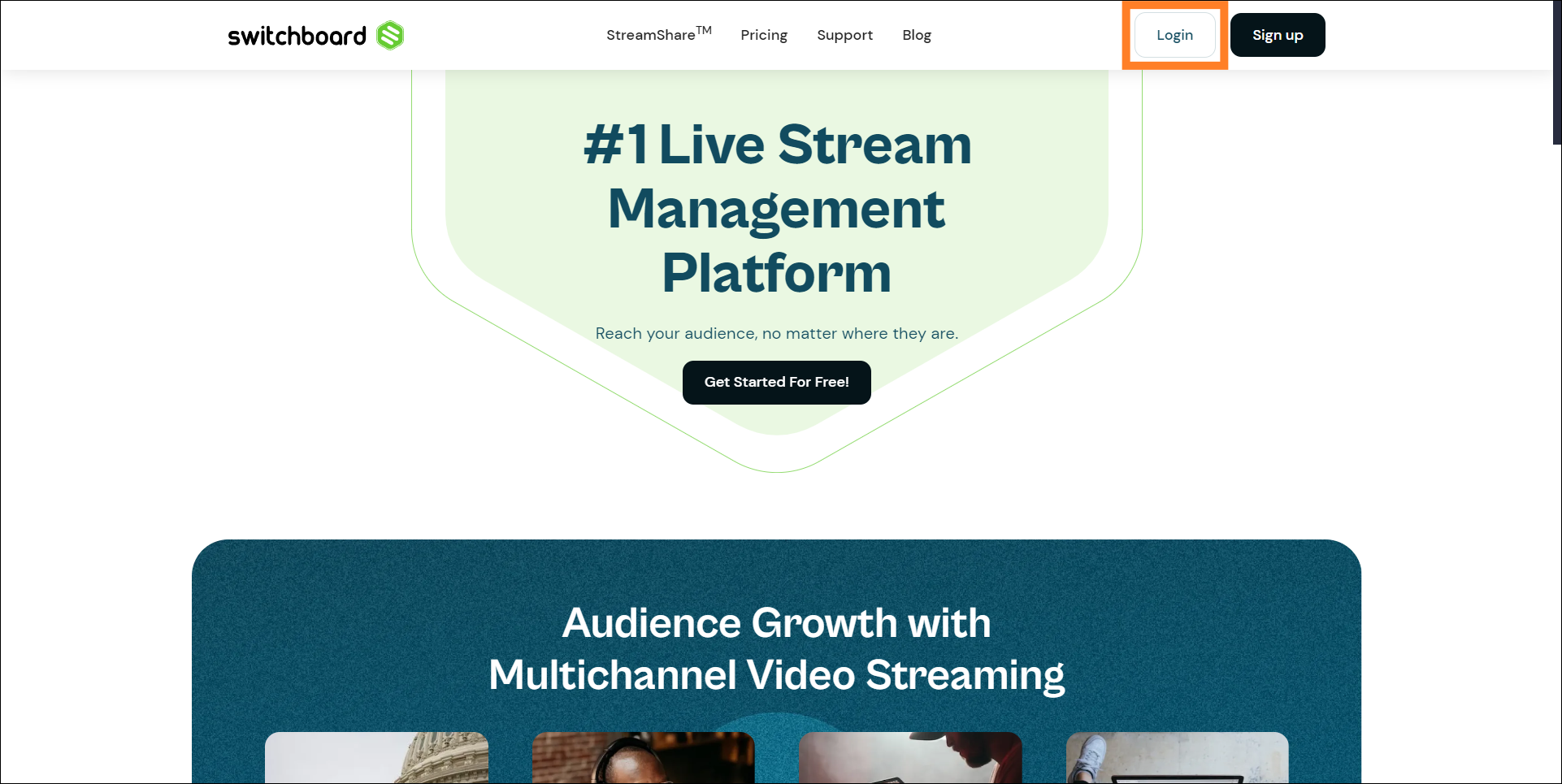

You will firstly need to log in to your Switchboard Live account, visit the Switchboard Live website, then click Login.

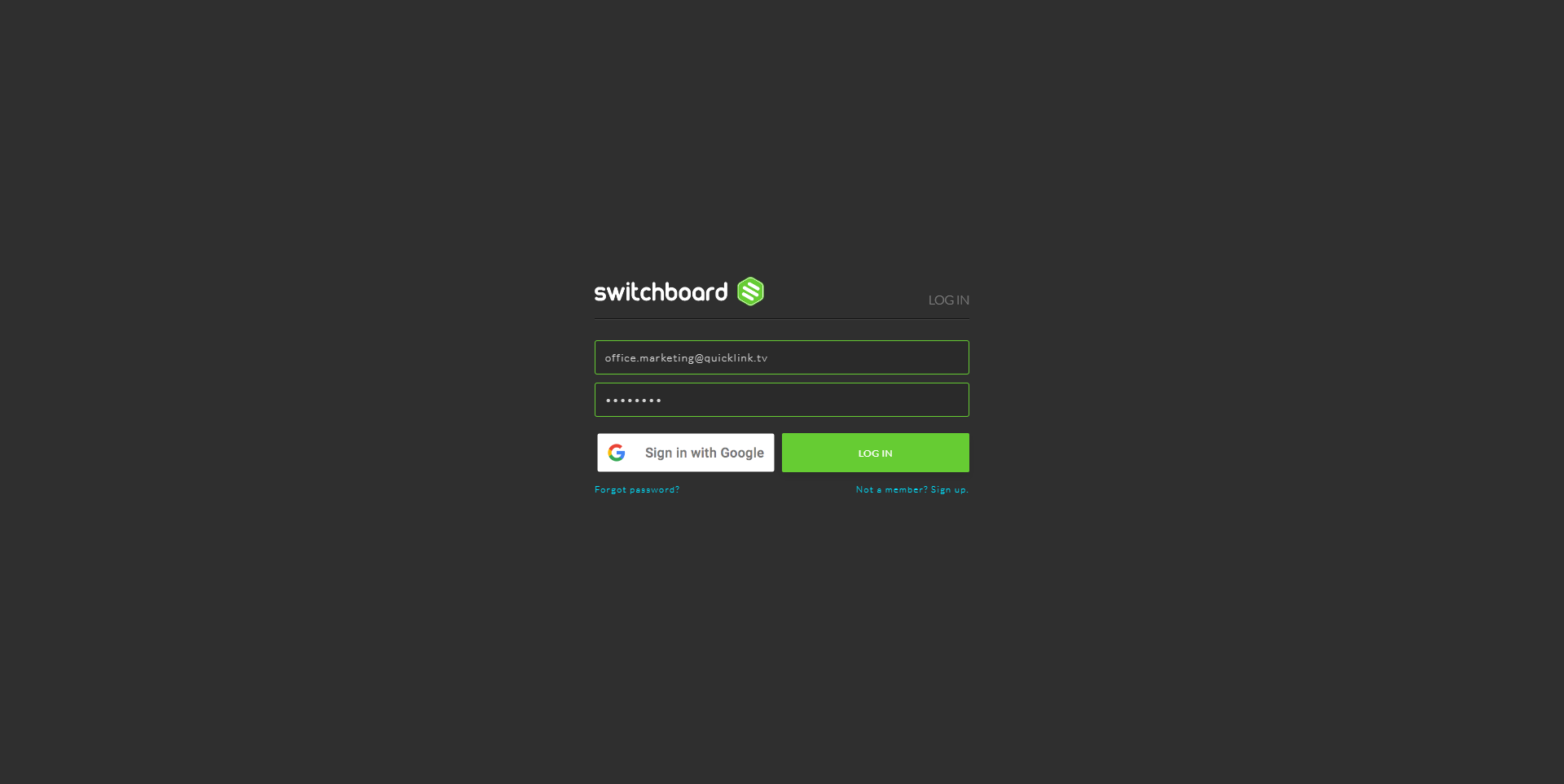

Enter your email and password, or sign in with Google. Click LOG IN.

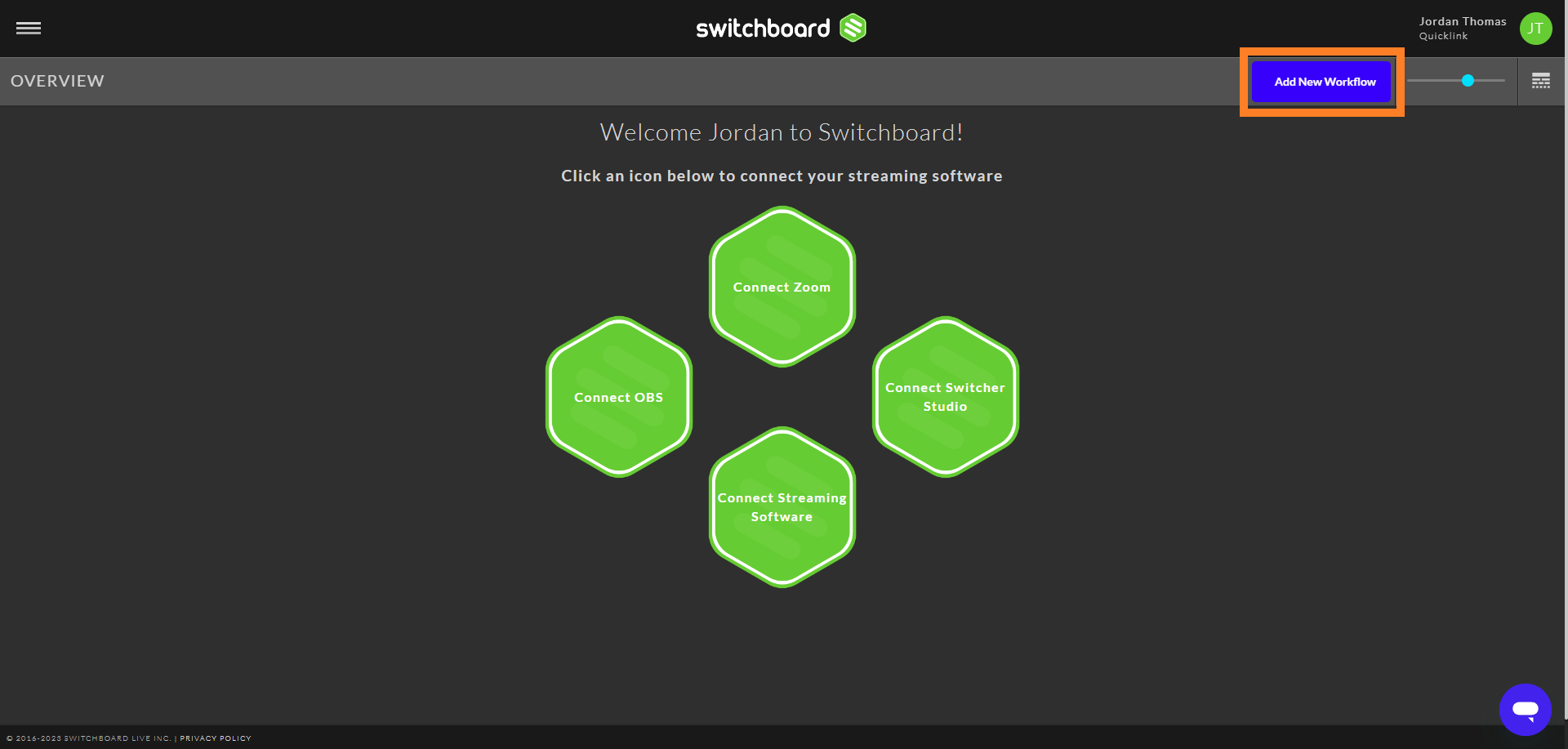

Once logged in, click Add New Workflow.

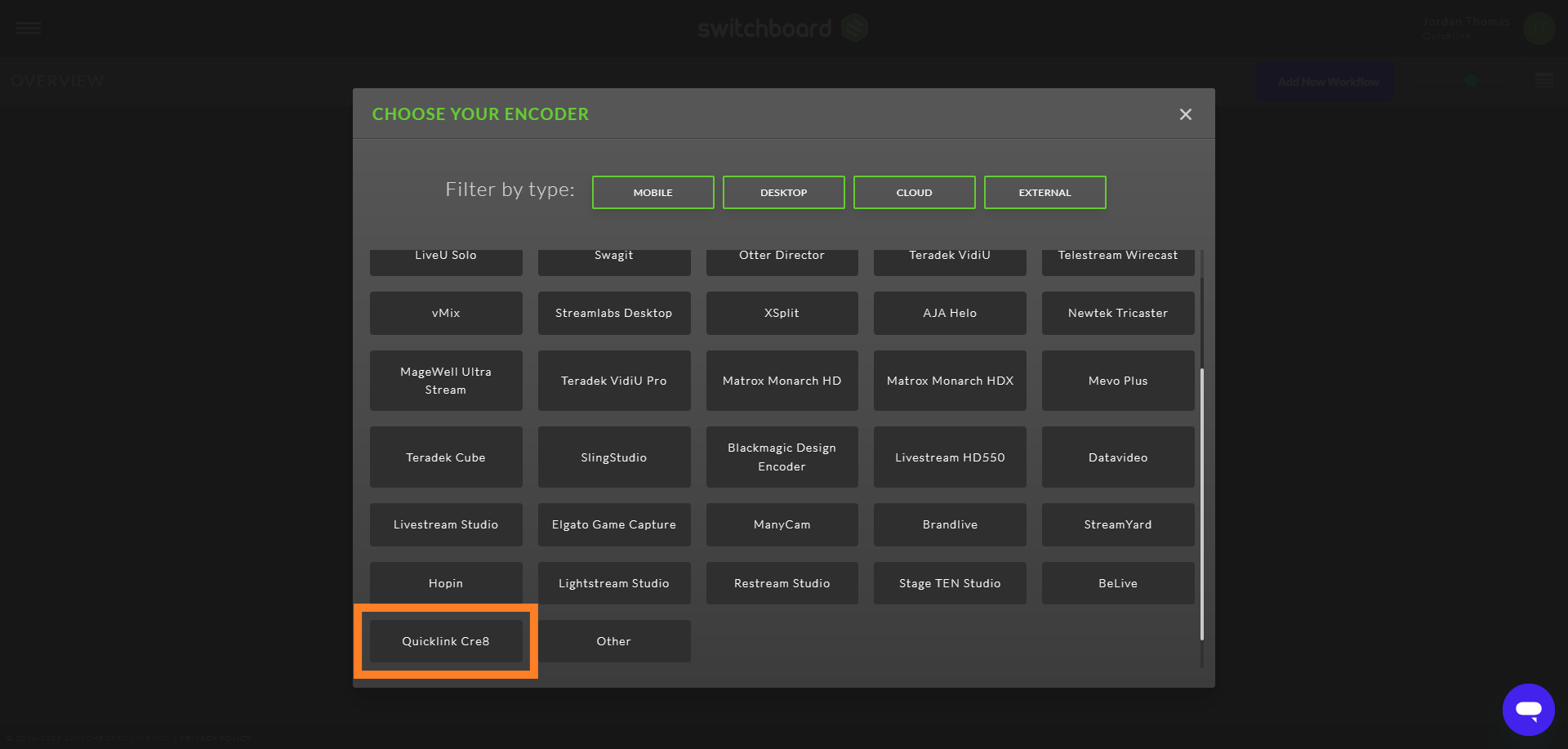

Within the Encoders window, locate and select Quicklink Cre8.

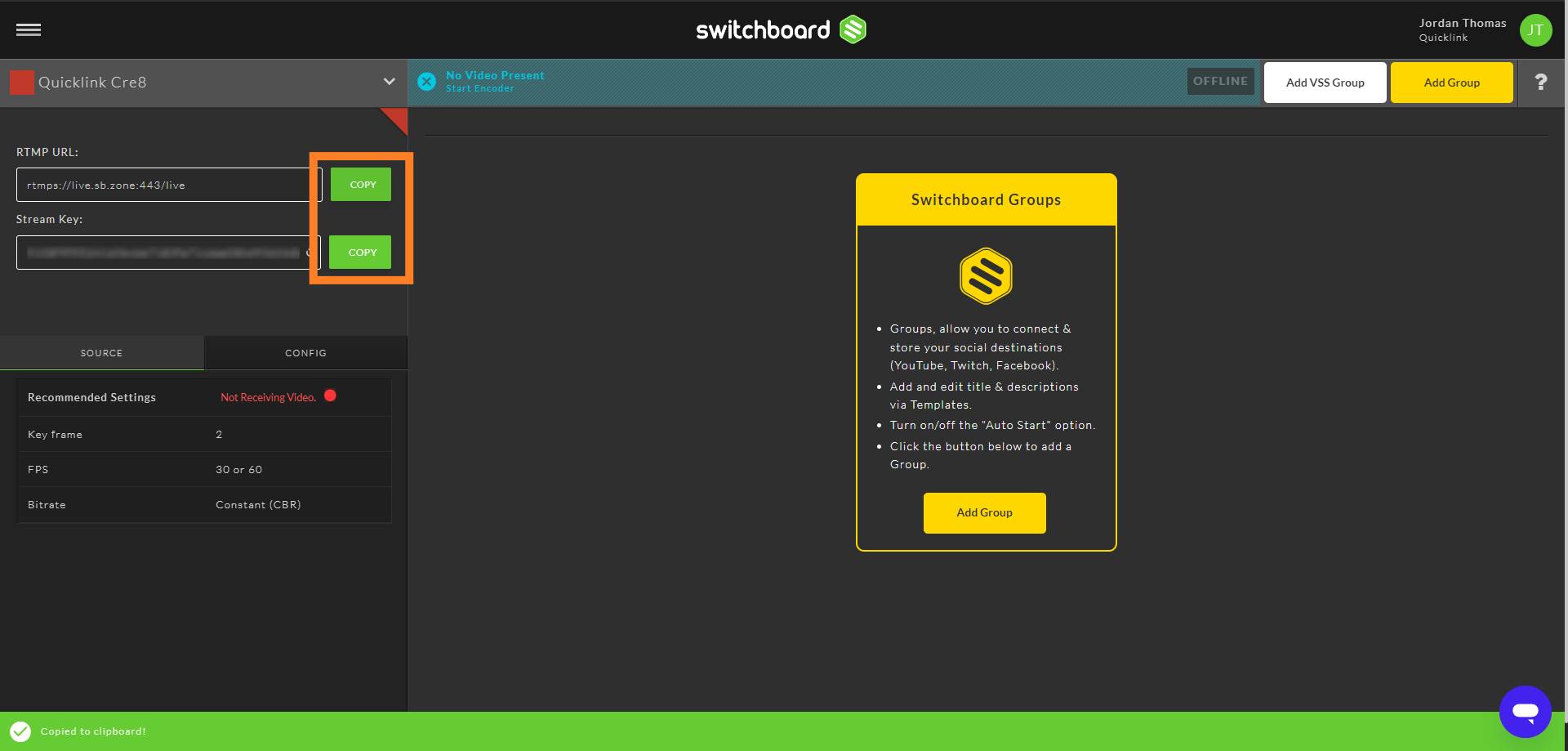

Next, copy and make a note of the Stream Key.

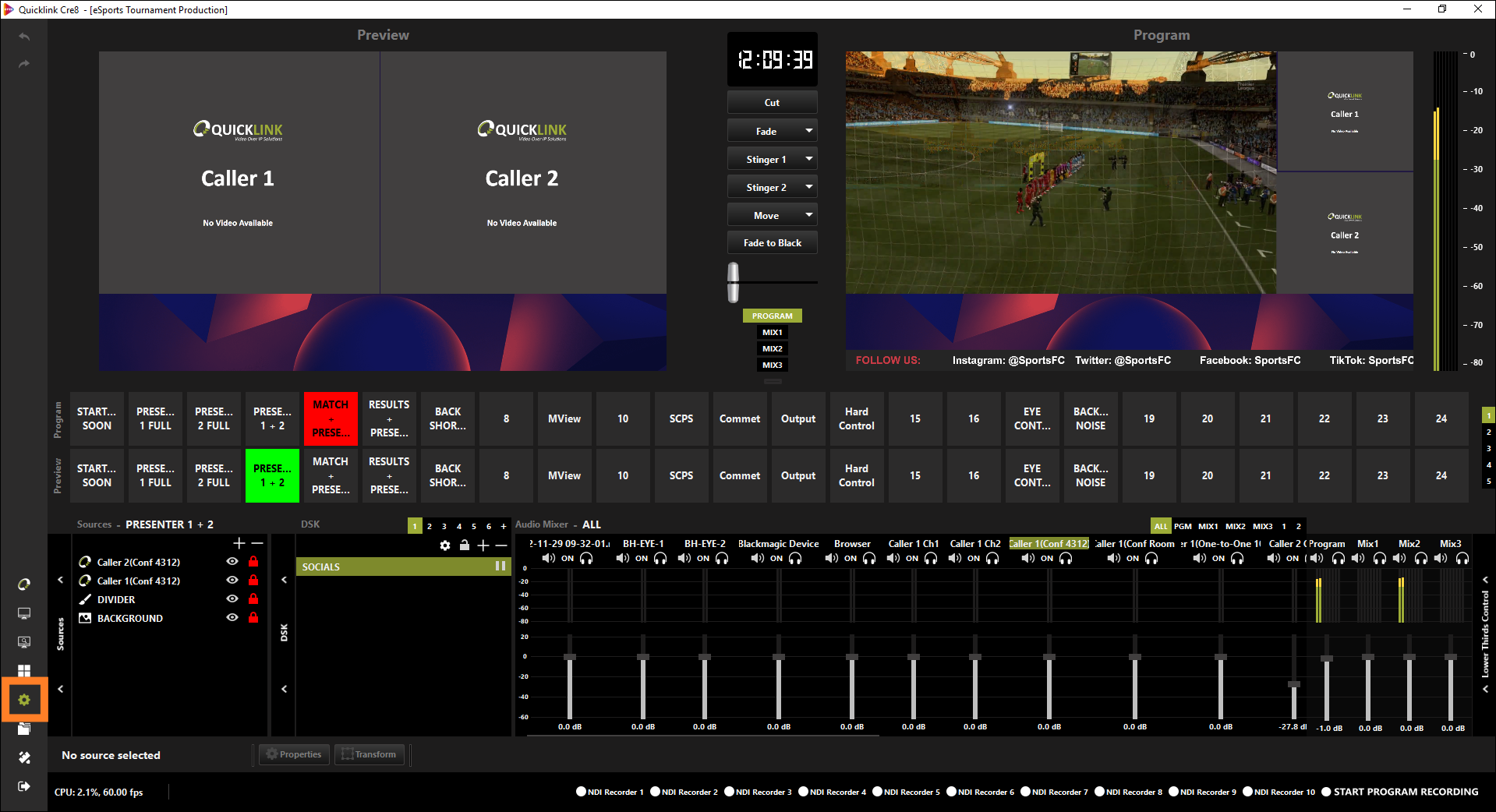

Returning to Quicklink Cre8, open the settings by clicking the settings-icon.png icon.

On the Stream tab of Settings, locate Services, within the Service drop-down click Show All.. then select Switchboard Live.


Select the Server that is the closest to the location you are streaming from. Paste the Stream Key copied previously into Stream Key. Click Apply.


Your Switchboard Live stream is now configured and you are ready to begin streaming. When you are ready to stream, click Start Streaming.

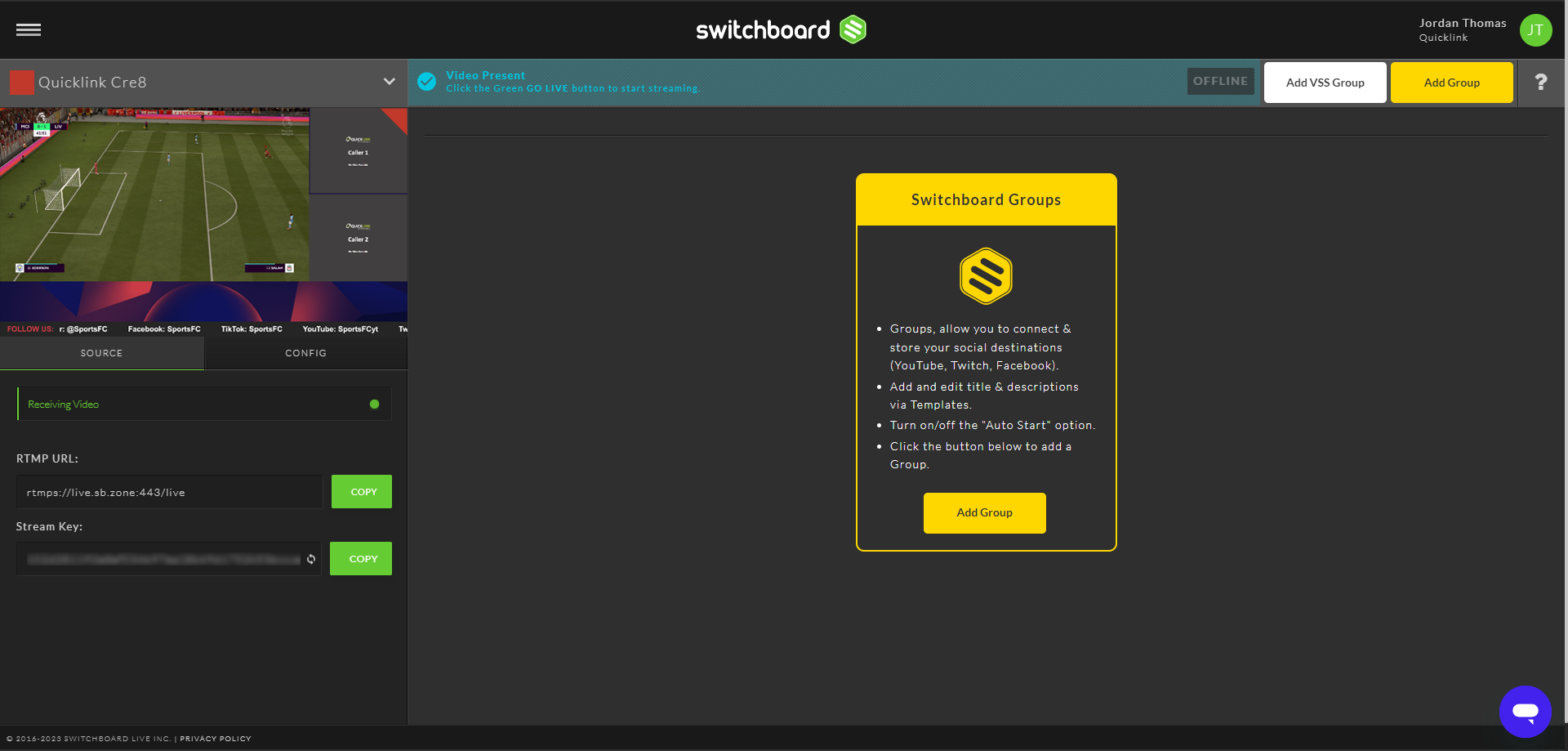

Your stream will now initiate. You can return to Switchboard Live, and view your stream.

To stop streaming, press Stop Streaming in the bottom right hand corner of the Quicklink Cre8 interface or from the Streaming tab in the Settings window.
