Streaming to Dolby.io

Using Quicklink Cre8 you can very quickly and easily stream to Dolby.io, a real-time content delivery platform.

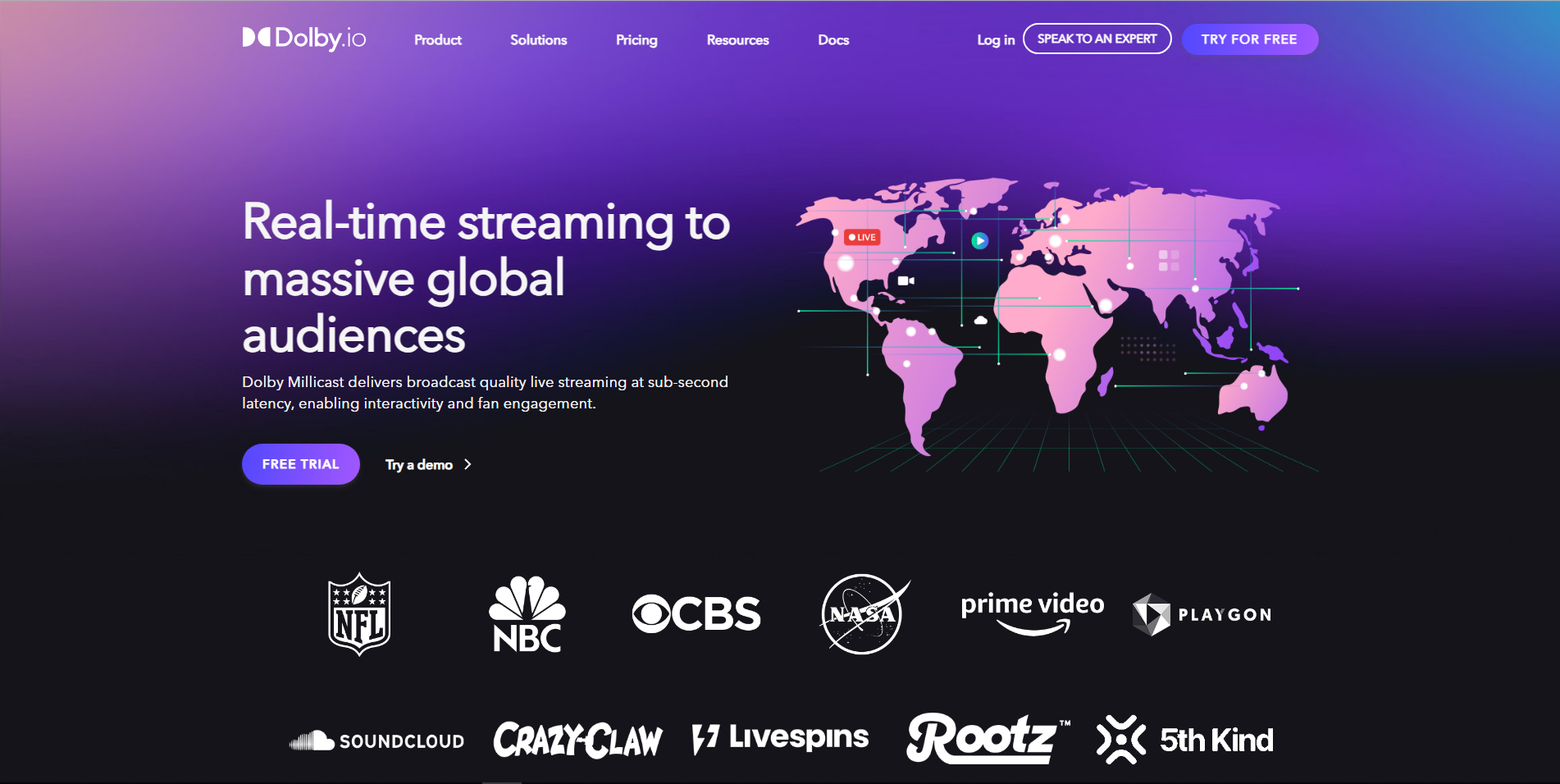

To configure your stream to Dolby.io, you will first need to head to the Dolby.io website and sign into your account. If you do not already have an account, you can get started here.

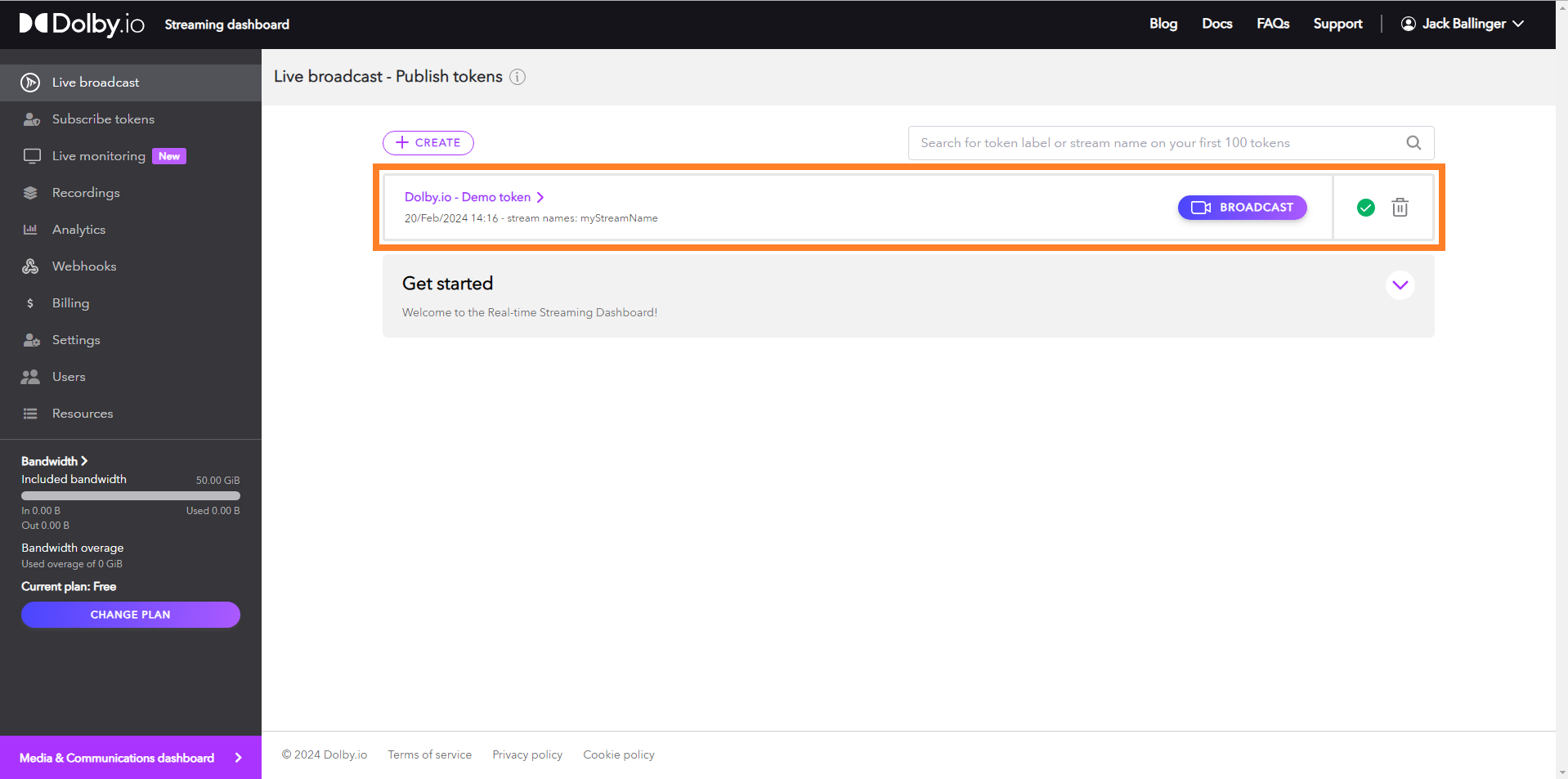

Once you are signed in, you should see your Dashboard. From here select your Live Broadcast Token

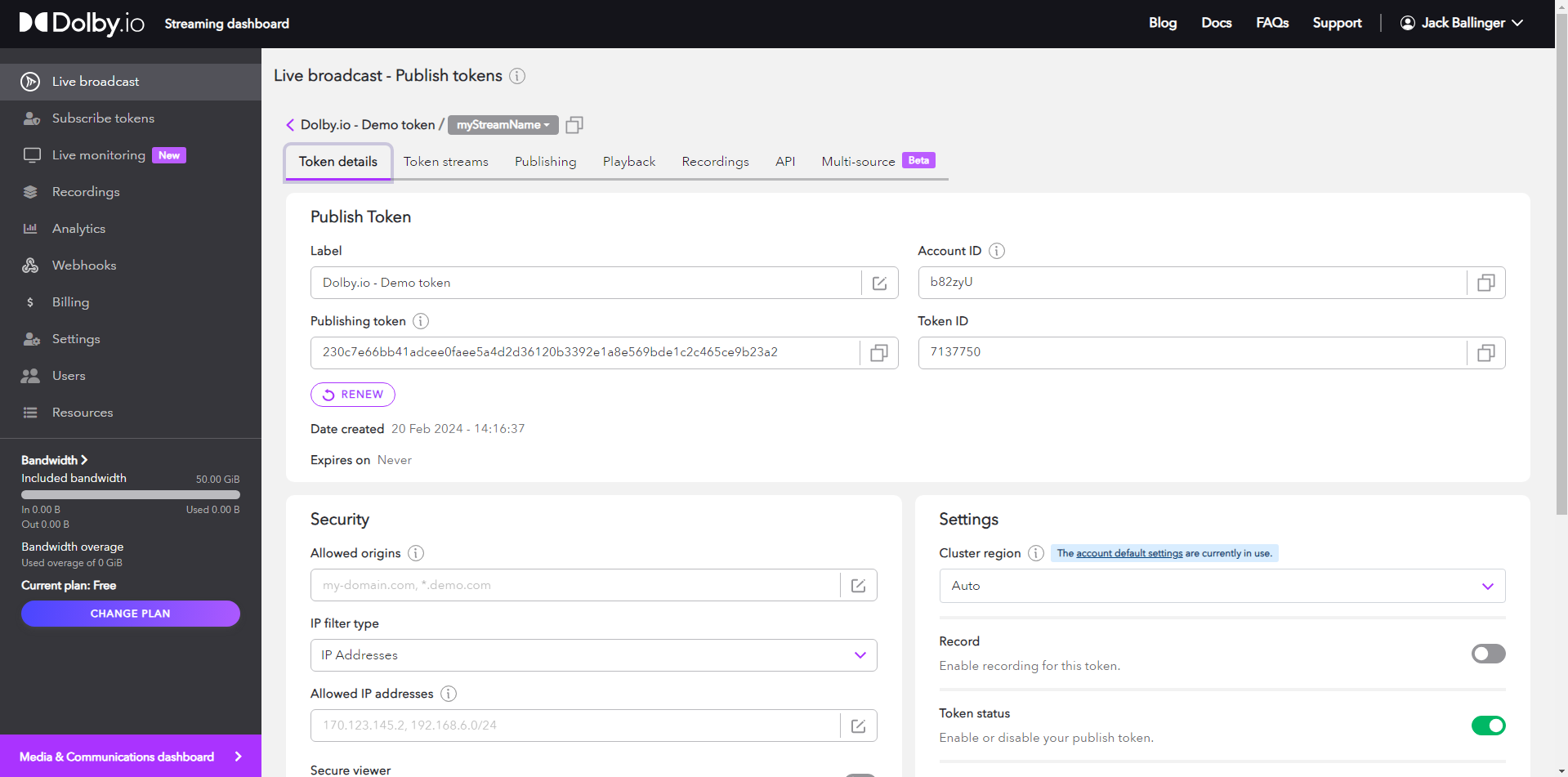

You will then see all your available settings and links for your stream.


Select the Publishing tab.

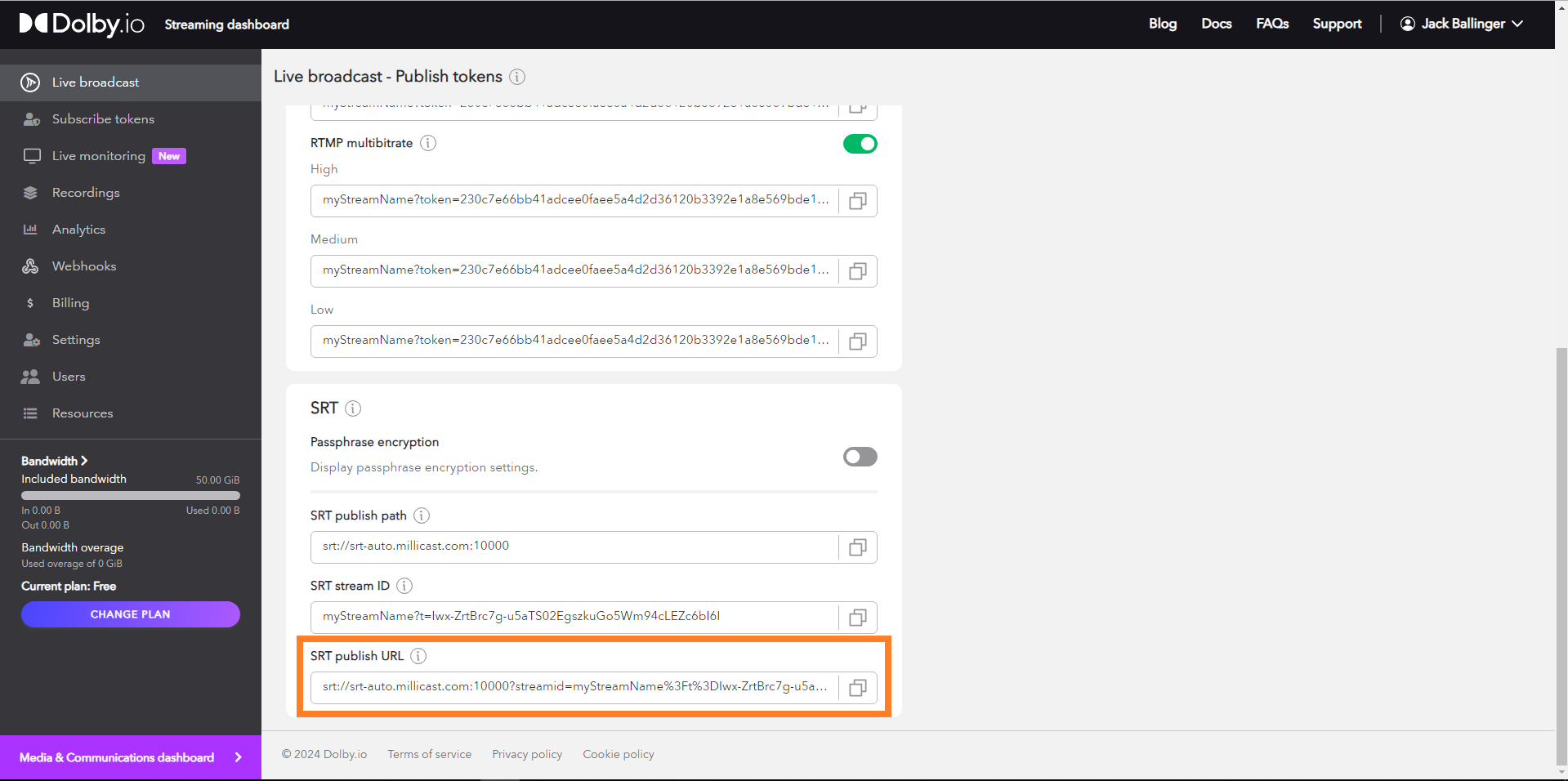

From the Publishing tab, you can see your various endpoints, paths and URLs. You have lots of options with Dolby.io including WHIP and RTMP but for this example , we'll show you how to set up a simple SRT stream. Scroll down and copy the SRT publish URL. Click the copy icon.

SRT Publish URL..png

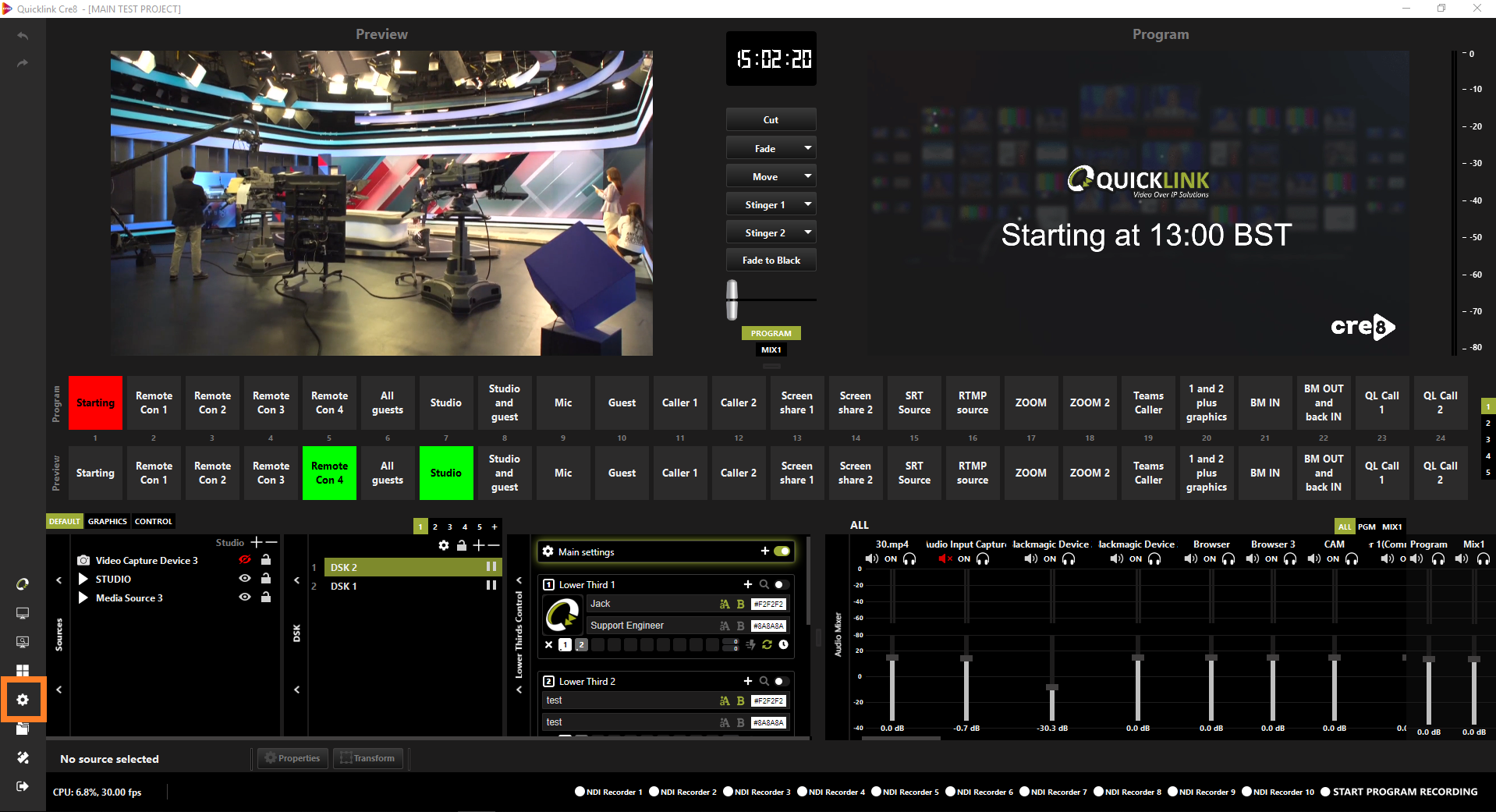

With your token copies, head over to Quicklink Cre8. Open the Settings window by clicking the settings-icon.png icon.

Open Settings.png

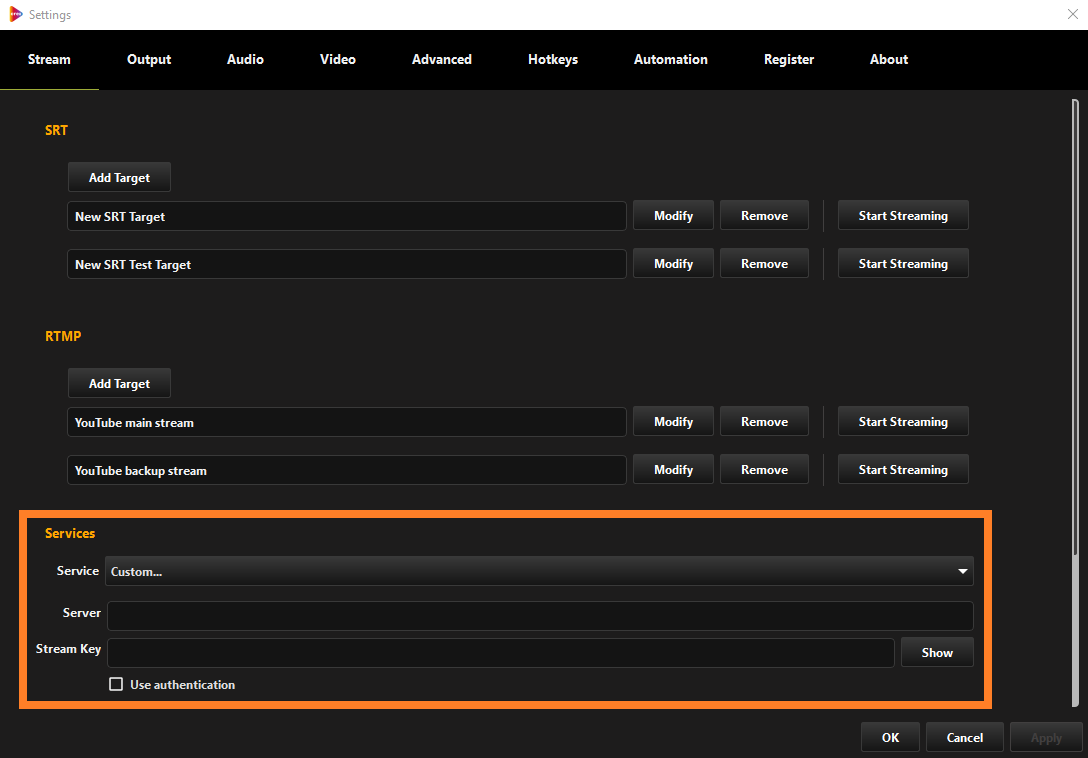

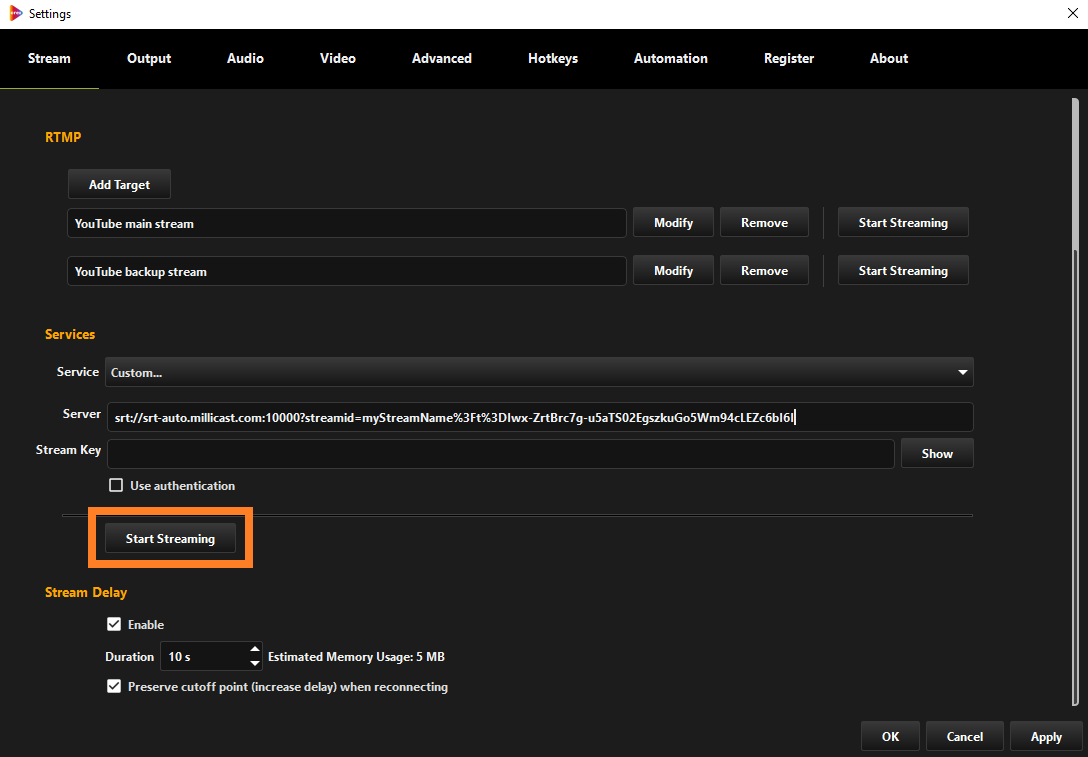

In the Stream tab, scroll down to Services.

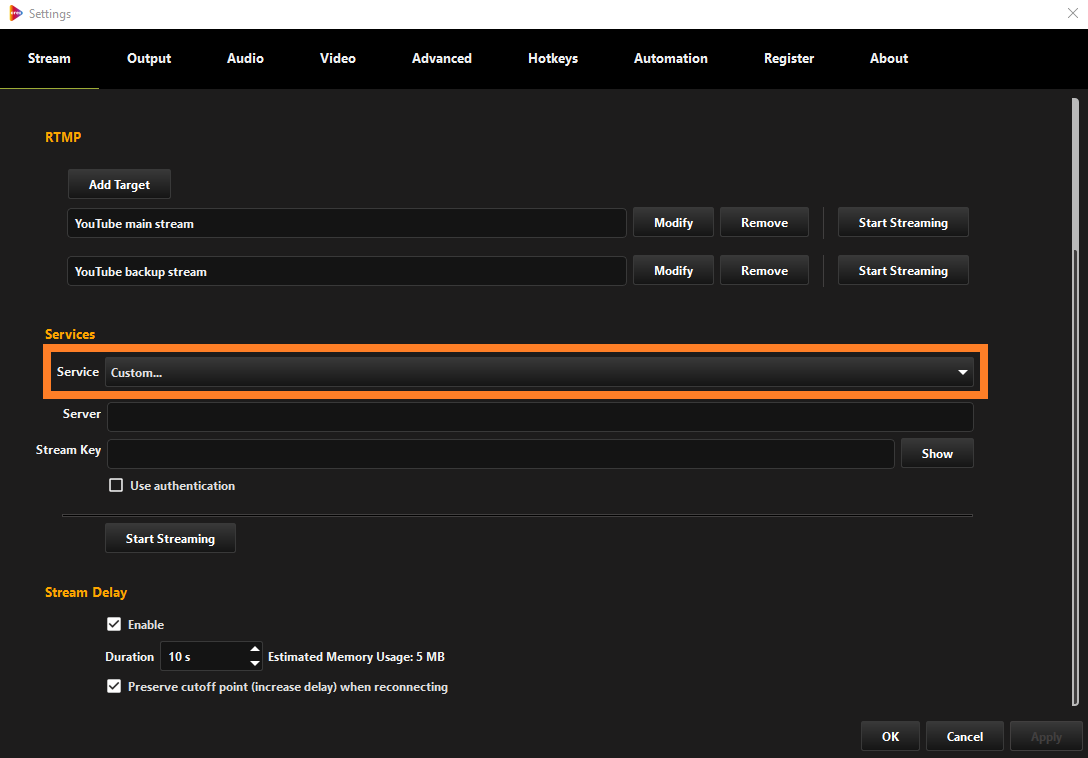

Select Custom in the Service box.


Paste the SRT publish URL copied previously into the Server box. The Stream Key in this instance is not required.


You have now configured your Dolby.io stream. When you are ready to start streaming, click Start Streaming.

Start Streaming.png

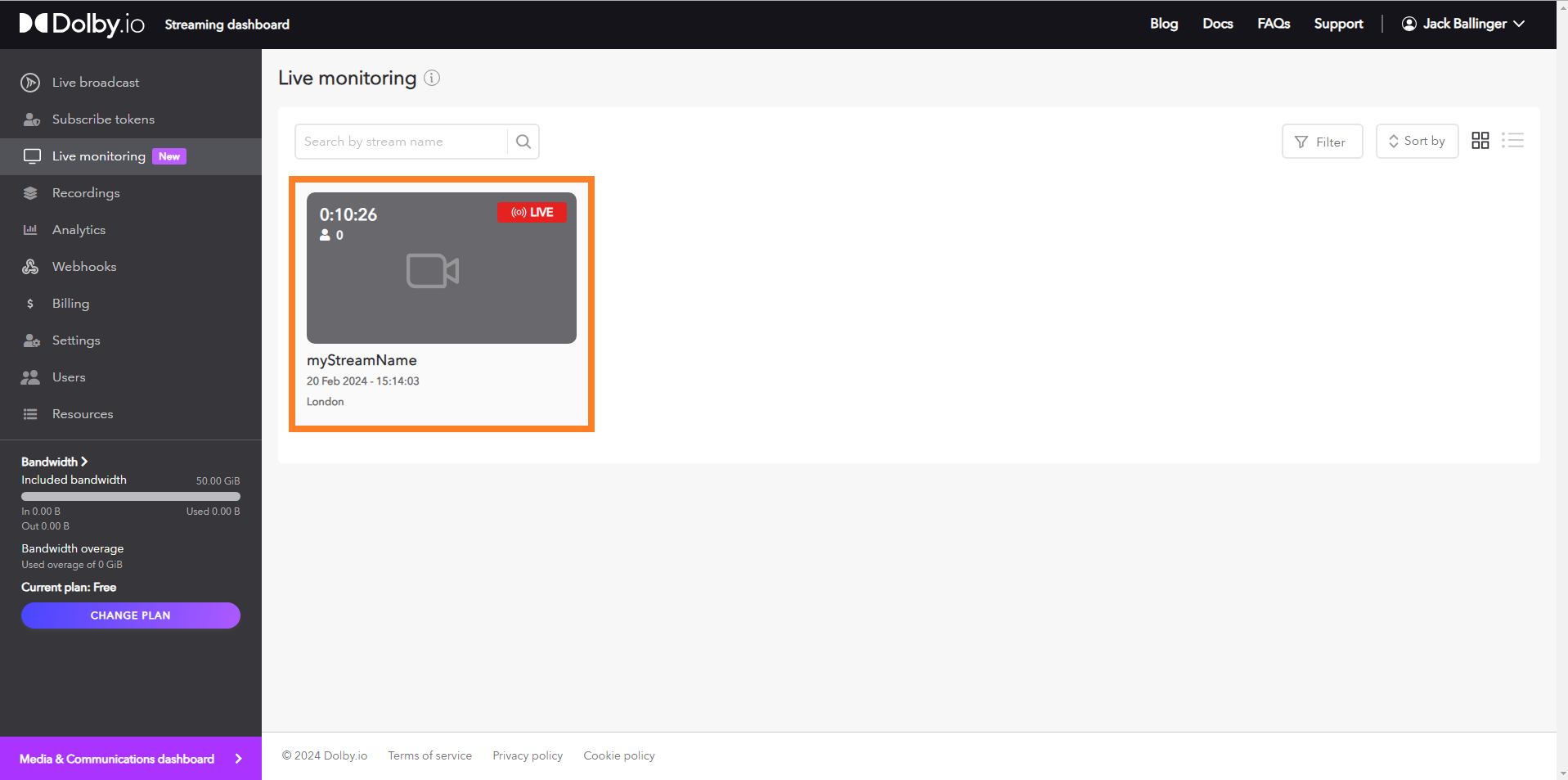

To monitor your stream, head back to the Dolby.io dashboard and select the Live monitoring tab.

Live monitoring.png

Click your stream.

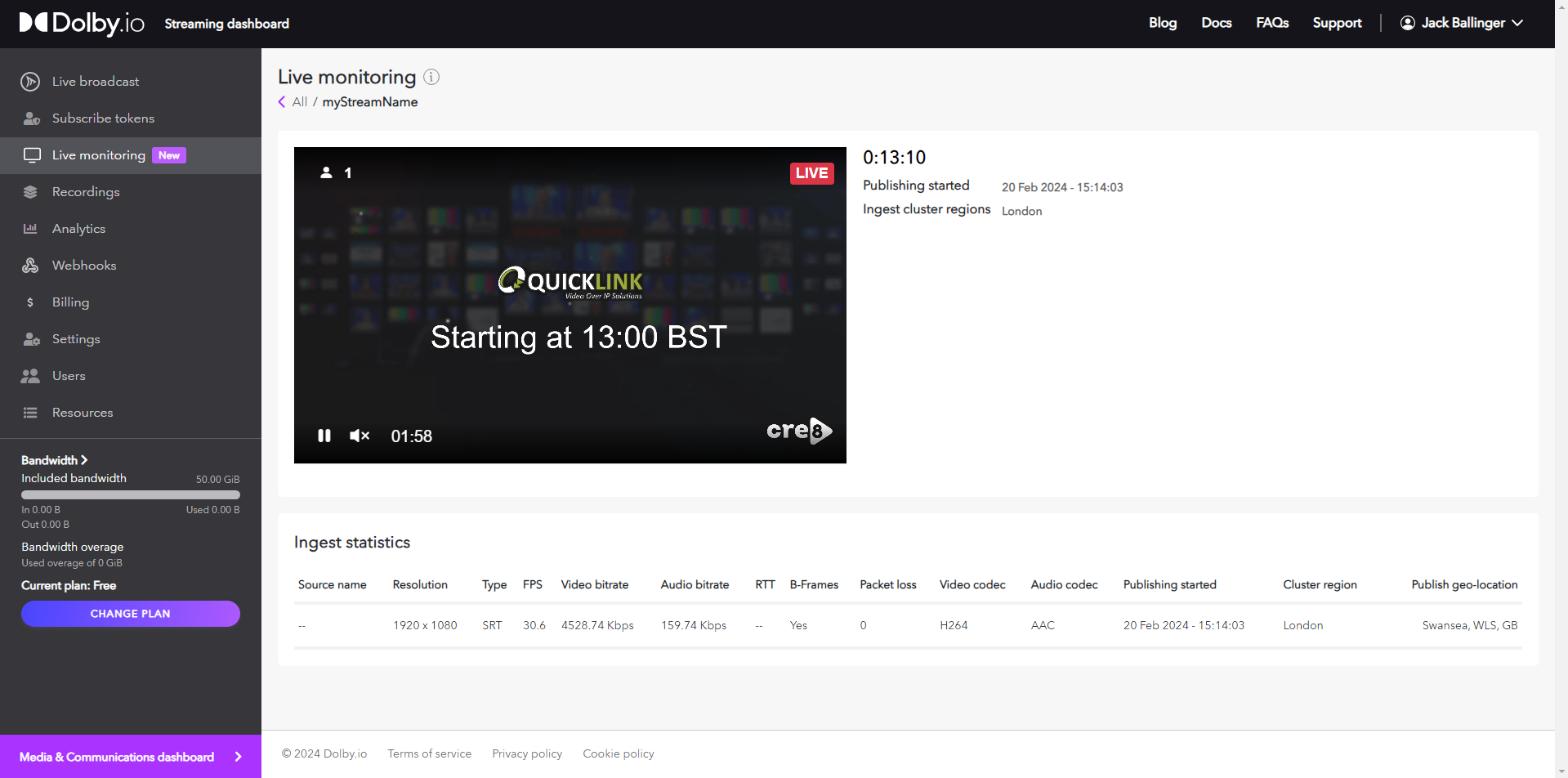

From here you can monitor the stream audio and video as well as see useful stream statistics.

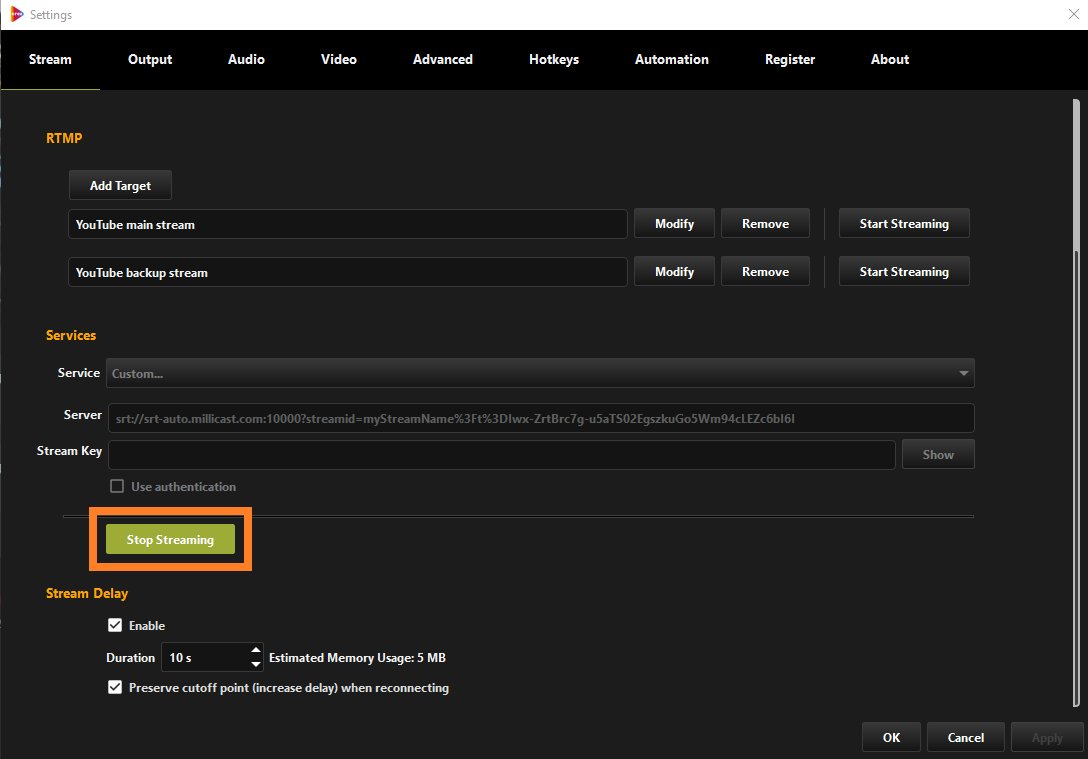

Once you are finished with your stream, head back into the settings window and click Stop Streaming.

Stop streaming.png
