Managing the settings of a contributor on a StudioBox

From the QuickLink StudioManager Portal, you can adjust various settings of the available users.

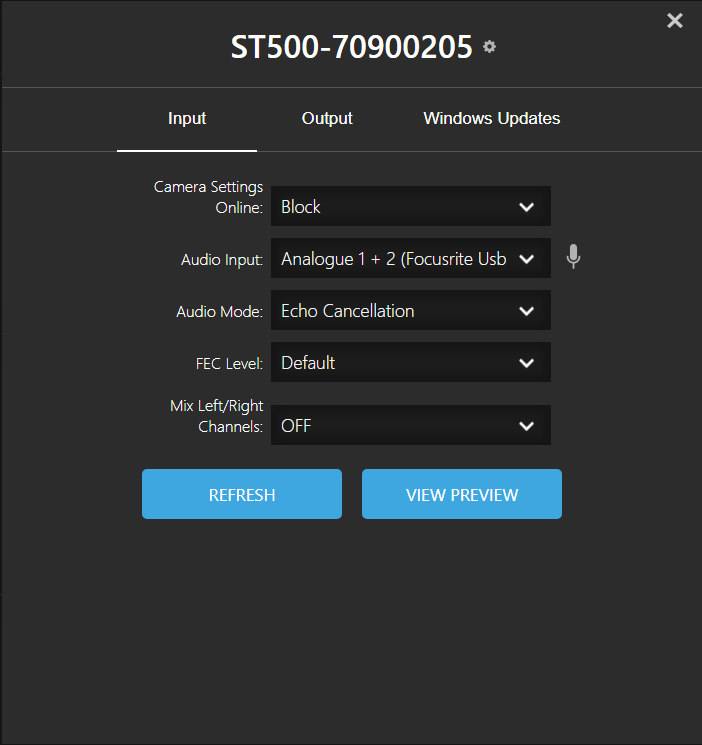

The settings cog on a StudioBox within the QuickLink StudioManager will allow you to enable or disable adaptive resizing options.


The View Preview button will allow you to preview the incoming video and audio from the contributor.


 You will also be able to talk back to your contributor through the preview popup.


StudioBox control using the QuickLink StudioManager

Press the mceclip10.png icon next to the available Studio-in-a-box device within the QuickLink StudioManager Portal. This will open the Studio Control Panel which contains a large array of available controls which can be controlled during a call in real-time. These controls are detailed below:


Camera orientation: The camera orientation slider will allow you to adjust the camera install position. Useful if using a Studio-in-a-box 1U with external camera.


Bars and Tone: Enable Camera’s built in bars and tone feature for testing.

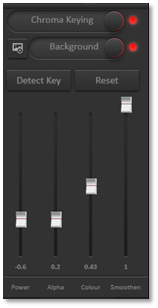

Chroma Key: The Chroma Keying button will open the GUI. Use the Chroma Keying toggle to enable or disable Chroma Keying. Click the mceclip15.png icon to upload an image or video to be used as the Chroma Key background. The background can be enabled or disabled using the toggle switch to the right. The Detect Key button will apply default Chroma settings which can then be adjusted using the available sliders. Press the Reset button to return everything to default settings.


Int. light control: Clicking the internal light button will display a slider allowing you to control the inbuilt Studio-in-a-box lights.


Camera movement sensitivity: Toggle the speed of the PTZ camera controls (slow/fast).


Camera control: This is the PTZ camera pan and zoom controls. The mceclip19.png icon will return the camera back to the standard camera and zoom position.


PTZ Presets: The PTZ presets option allows you to create up to 9 set locations where your camera can pan to. To set a location, use the camera control buttons above to select your location, then in the PTZ presets dialog select the preset number you would like to apply to, then click ‘Save’. You are now able to easily select the preset and click ‘Go’ to move the camera to the saved location. To reset a preset, select the preset you would like to delete and click ‘Clear’.


Scene: The Scene selection dropdown will allow you to select a preconfigured Scene saved to the PTZ camera. Alterations made to the camera will be saved to a scene if one is selected.



Auto White Balancing settings: Click the AWB settings button to open the White Balancing GUI. Here the white balance profile can be selected, and the Display AWB button can be used to automatically configure this if AWB A or B options are selected. If the display mode slider is enabled, the White Balance status will display on the camera output when a white balancing adjustment is made.



Camera gain: Click the camera gain button to display the GUI for this. Using the slider, the gain can be increased or decreased and turned on or off using the switch.



Audio settings: The audio settings allows you to adjust the audio input levels of your ST500.



DMX-512 light control: At the bottom of the controls are the DMX light controls. Here the DMX channels can be configured for control over light brightness and temperature. Click the COG.png icon to input the required DMX channel.



Recording: Click the start recording button to begin saving the StudioBox input to the unit. When recording has finished, select either Save or Delete on the prompt as required. Use the toggle switch to enable or disable recorded clip upload.
